947107 - Gravely 265cc Blower, 9hp Subaru (SN: 000101 & Above) Main Assembly - 265cc Parts Diagram

265cc Blower, 9hp Subaru

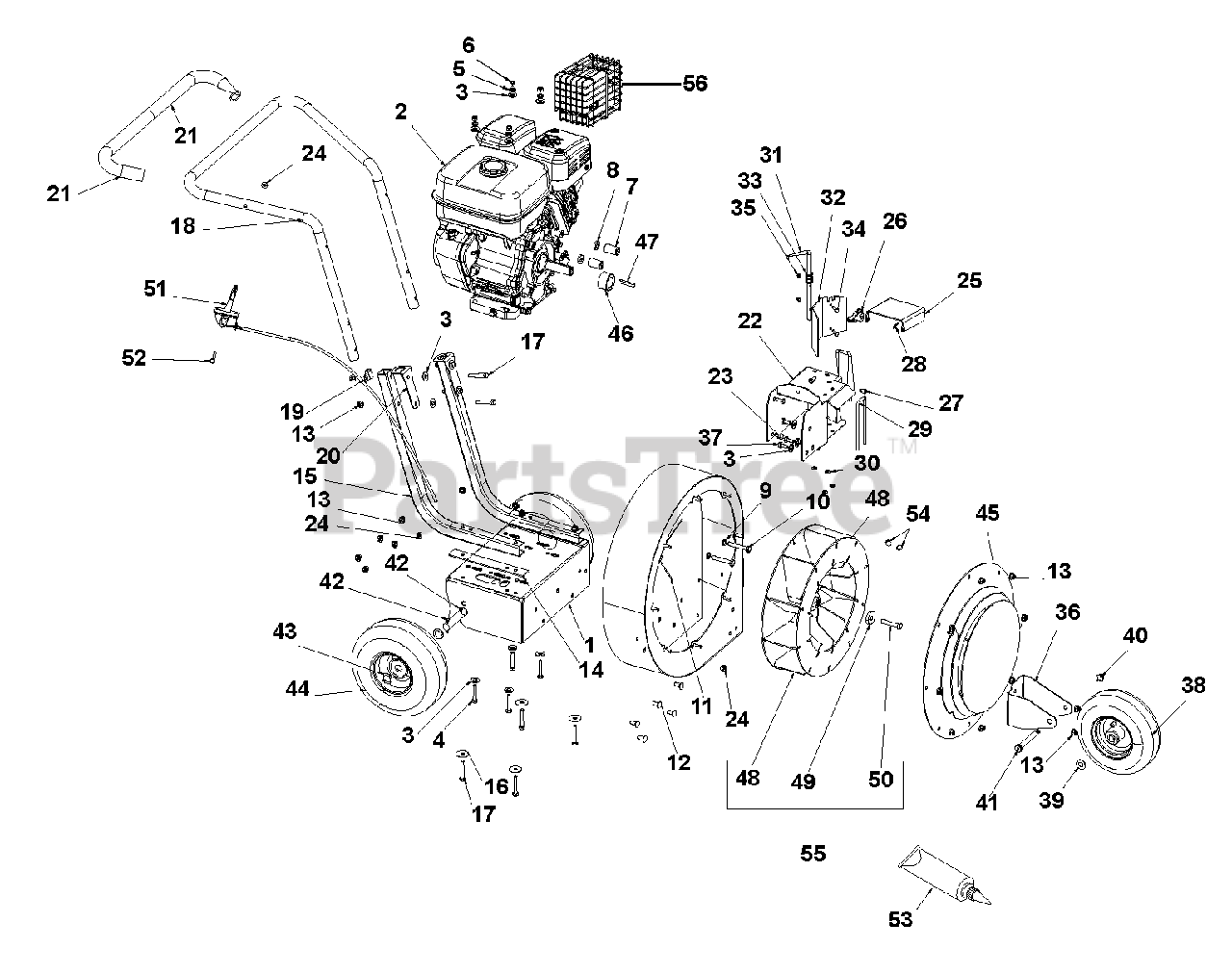

Main Assembly - 265cc Parts Diagram

  • Title

1

Gravely 04290053

Weldment, Blower Frame

$157.99

$

Usually ships in 4-12 days

0

2

Gravely 08200440

Engine, SUBARU 9HP EX27 (CARB)

Note: (CARB)

$

$

Not available

3

Gravely 06435700

Washe, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

5

Gravely 06307400

Washer, Locking .312 x .097 Heavy
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

6

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

7

Gravely 04299451

Engine Spacer

$17.99

$

Usually ships in 4-12 days

0

8

Gravely 06436800

Washer, Flat Steel .390 x .88 x .18

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$1.49

$

In Stock, Qty 15

0

10

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

11

Gravely 04299553

Weldment, Blower Housing

$274.99

$

Usually ships in 4-12 days

0

12

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 04290500

Rubber Spacer

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 04349151

Handlebar, Lower

$26.99

$

Usually ships in 4-12 days

0

16

Gravely 06446900

Washer, Flat Steel .347 x 1.254 x .048
(Superseded to 06401105)

$2.99

$

In Stock, Qty 10

0

17

Gravely 05957200

Bolt, Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.99

$

In Stock, Qty 12

0

18

Gravely 04290651

Tube, Handlebar, Upper

$166.99

$

Usually ships in 4-12 days

0

19

Gravely 06909400

J-Clamp

$3.99

$

In Stock, only 2 left!

0

20

Gravely 04349251

Bracket, Handlebar Mount

$17.99

$

Usually ships in 4-12 days

0

21

Gravely 04290700

Grip, Handlebar, Upper

$37.99

$

Usually ships in 4-12 days

0

22

Gravely 04299653

Weldment, Outlet Chute

$

$

Not available

23

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

24

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.99

$

In Stock, only 4 left!

0

25

Gravely 04299753

Bracket, Outlet Door

$115.99

$

Usually ships in 4-12 days

0

26

Gravely 07500105

Knob, Wing .31-18 UNC

$3.99

$

In Stock, Qty 8

0

27

Gravely 06819100

Pin, Clevis .313 x .500

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

29

Gravely 04299800

Wireform, Guard, Safety

$14.99

$

Usually ships in 4-12 days

0

30

Gravely 07027600

Push, Nut 1/4

$2.49

$

In Stock, Qty 6

0

31

Gravely 04291100

Wireform, Lever, Direction

$30.99

$

Usually ships in 4-12 days

0

32

Gravely 04299953

Bracket, Flap, Direction

$

$

Not available

33

Gravely 08300526

Spring, Compression 1.0L x .72 OD .05DIA

$9.99

$

Usually ships in 4-12 days

0

34

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

35

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 04200153

Bracket, Wheel, Front

$

$

Not available

37

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 07100913

Wheel, 9 x 2.5 PNEU-Grey Rim

$58.99

$

Usually ships in 4-12 days

0

39

Gravely 06443300

Washer, Flat Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

40

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 07070125

Bolt, Shoulder .5 x 3.25 x .38-16

$5.49

$

Usually ships in 4-12 days

0

42

Gravely 06701100

Pin, Cotter .16 x 1.25 Extended Prong Square Cut

$2.49

$

Usually ships in 4-12 days

0

43

Gravely 06441400

Washer, Flat Steel .754 x 1.125 x .062
(Superseded to 06401119)

$1.49

$

In Stock, Qty 6

0

44

Gravely 07100910

Wheel, 10 x 3.75 Grey

$81.99

$

Usually ships in 4-12 days

0

45

Gravely 04300051

Weldment, Inlet Guard Medium

$

$

Not available

46

Gravely 05501038

Bushing, Sleeve, 1.0 x 2.0 x 1.0

$9.99

$

Usually ships in 4-12 days

0

47

Gravely 06601800

Key, Square .25 x 1.75 x .25

$3.99

$

In Stock, only 1 left!

0

48

Gravely 04433600

Weldment, Fan, Impeller Medium
(Superseded to 54700200)

$274.99

$

Usually ships in 4-12 days

0

49

Gravely 06443500

Washer, Flat Steel .463 x 1.375 x .250

$7.49

$

Usually ships in 4-12 days

0

50

Gravely 05901426

Bolt, Hex .31-24 x 2.00 Grade 8

$6.49

$

Usually ships in 4-12 days

0

51

Gravely 04300300

Throttle Control

$62.99

$

Usually ships in 4-12 days

0

52

Gravely 05967100

Bolt, Hex .25-20 x 2.00 Grade 5
(Superseded to 05901740)

$2.99

$

Usually ships in 4-12 days

0

53

Gravely 00999901

Loctite 609® .5 ml

$8.49

$

Usually ships in 4-12 days

0

54

Gravely 06005500

Set Screw .331-18 x .38

$3.49

$

In Stock, only 2 left!

0

55

Gravely 54700200

Kit – 9hp Fan Replacement

$274.99

$

Usually ships in 4-12 days

0

56

04332551

Muffler Guard, Subaru EX27 (947301)

Note: (947301)

$

$

Not available
