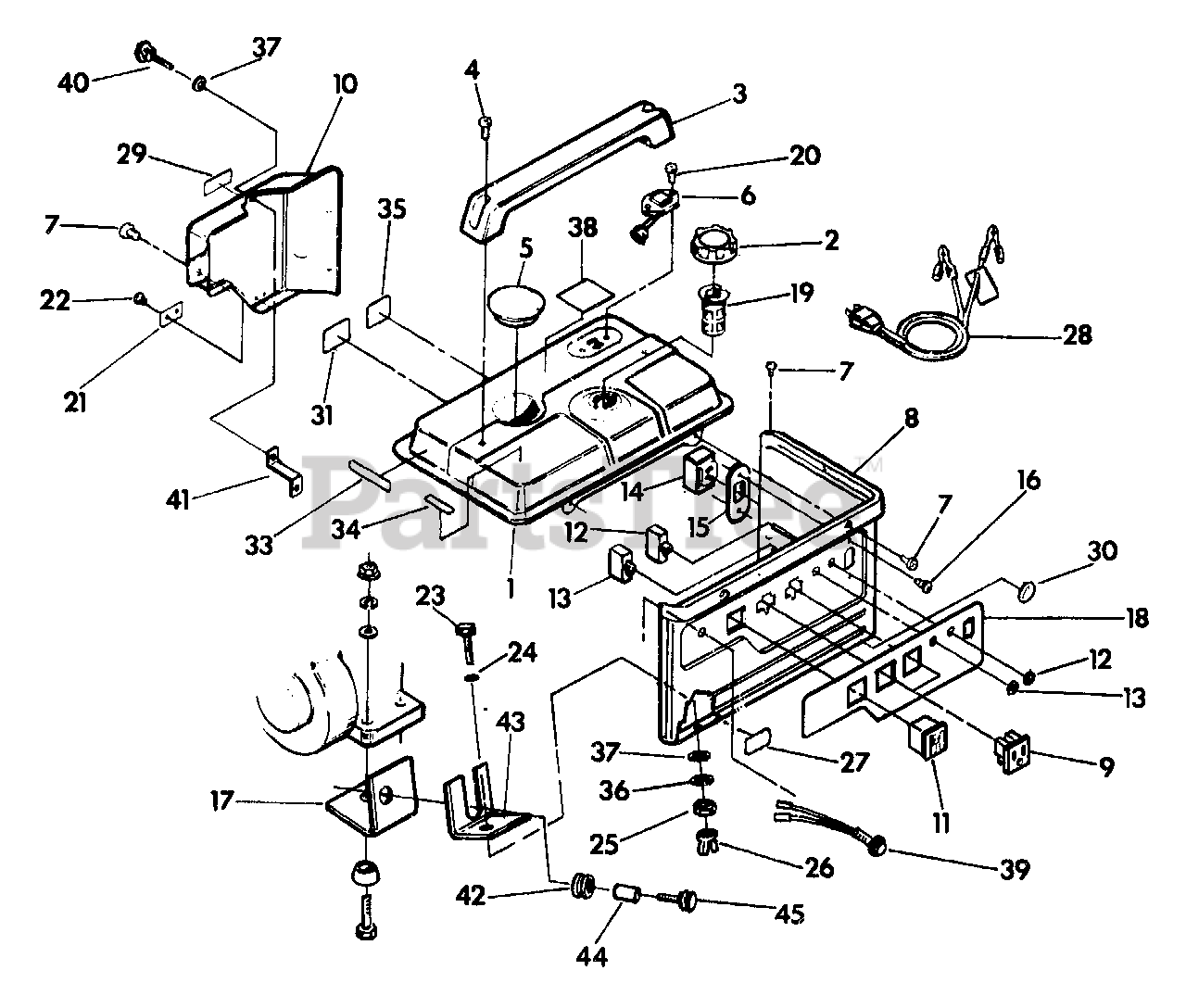

9482-0 - Generac 750 Watt Portable Generator Cradle Parts Diagram

750 Watt Portable Generator

Cradle Parts Diagram

  • Title

1

Briggs & Stratton 66374S

3.0 Liter Fuel Tank

Note: Contact Generac for quantity required

$

$

Not available

2

Briggs & Stratton 69568

Fuel Tank Cap

$

$

Currently unavailable

3

Briggs & Stratton 70627

Carrying Handle

$

$

Currently unavailable

4

Briggs & Stratton 66890

M6-1.0 x 12mm Pan Head Machine Screw
(Superseded to 66890GS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 64680A

Spark Plug Access Cover

$

$

Currently unavailable

6

Briggs & Stratton 66391A

Fuel Level Gauge

$

$

Currently unavailable

7

Briggs & Stratton 66827

M5-0.8 x 12mm Screw (with lock washer)

$

$

Not available

8

Briggs & Stratton 66377

Panel

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 66818

120 Volts AC Receptacle
(Superseded to 66818GS)

$25.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 66378

Exhaust Muffler Shield

$

$

Currently unavailable

11

Briggs & Stratton 66817

Run/Stop and Lamp, AC ON Switch
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 66820

10 amp Circuit Breaker

$

$

Not available

13

Briggs & Stratton 66888

6.5 amp Circuit Breaker

$

$

Not available

14

Briggs & Stratton 66821

12 Volts DC Battery Charge Receptacle
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 66822

Battery Charge Receptacle Bracket
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66828

M3-0.5 x 5mm Screw

$20.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 66380

Panel Bracket

$

$

Currently unavailable

18

Briggs & Stratton 84566

Decal - Receptacle Panel

$

$

Currently unavailable

19

Briggs & Stratton 66838

Fuel Filter

$

$

Not available

20

Briggs & Stratton 52749

M5-0.8 x 12mm Screw

$

$

Currently unavailable

21

Briggs & Stratton 67430

Data Plate

$

$

Currently unavailable

22

Briggs & Stratton 66829

3mm Rivet

$

$

Currently unavailable

23

Briggs & Stratton 52619

M5-0.8 x 20mm Machine Screw
(Superseded to 52619GS)

$1.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 67444

M5 Serrated Washer

$

$

Currently unavailable

25

Briggs & Stratton 51716

M5-0.8 Hex Nut
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 67435

M5-0.8 Wing Nut

$

$

Currently unavailable

27

Briggs & Stratton 67210

Ground Decal
(Superseded to 67210GS)

$8.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 65787

Battery Charge Cable

$3.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 66824

Decal - Caution! Hot!

$

$

Currently unavailable

30

Briggs & Stratton 66864

Decal - Forrestry

$

$

Not available

31

Briggs & Stratton 67441A

Decal - Starting Data

$

$

Currently unavailable

33

Decal - Air Cleaner

Note: THESE PARTS ARE SUPPLIED WITH ENGINE

$

$

Not available

34

Decal - Unleaded Fuel

Note: THESE PARTS ARE SUPPLIED WITH ENGINE

$

$

Not available

35

Decal - Lubrication

Note: THESE PARTS ARE SUPPLIED WITH ENGINE

$

$

Not available

36

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 23897

M5 Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 69674

Decal - Fuel Caution

$

$

Currently unavailable

39

Briggs & Stratton 70402

Low Oil Lamp

$

$

Currently unavailable

40

Briggs & Stratton 65768

M5 Screw

$

$

Currently unavailable

41

Briggs & Stratton 81872

Support Panel

$

$

Currently unavailable

42

Briggs & Stratton 81873

Rubber Grommet

$

$

Currently unavailable

43

Briggs & Stratton 81874

Housing Support

$

$

Currently unavailable

44

Briggs & Stratton 81875

Insert Ring

$

$

Currently unavailable

45

Briggs & Stratton 81876

M6 Screw

$

$

Currently unavailable
