949001 (OVIS 40 RC) - Gravely Remote Control Flail Mower (SN: 000101 & Above) Deck Drive - Intermediate Parts Diagram

Remote Control Flail Mower

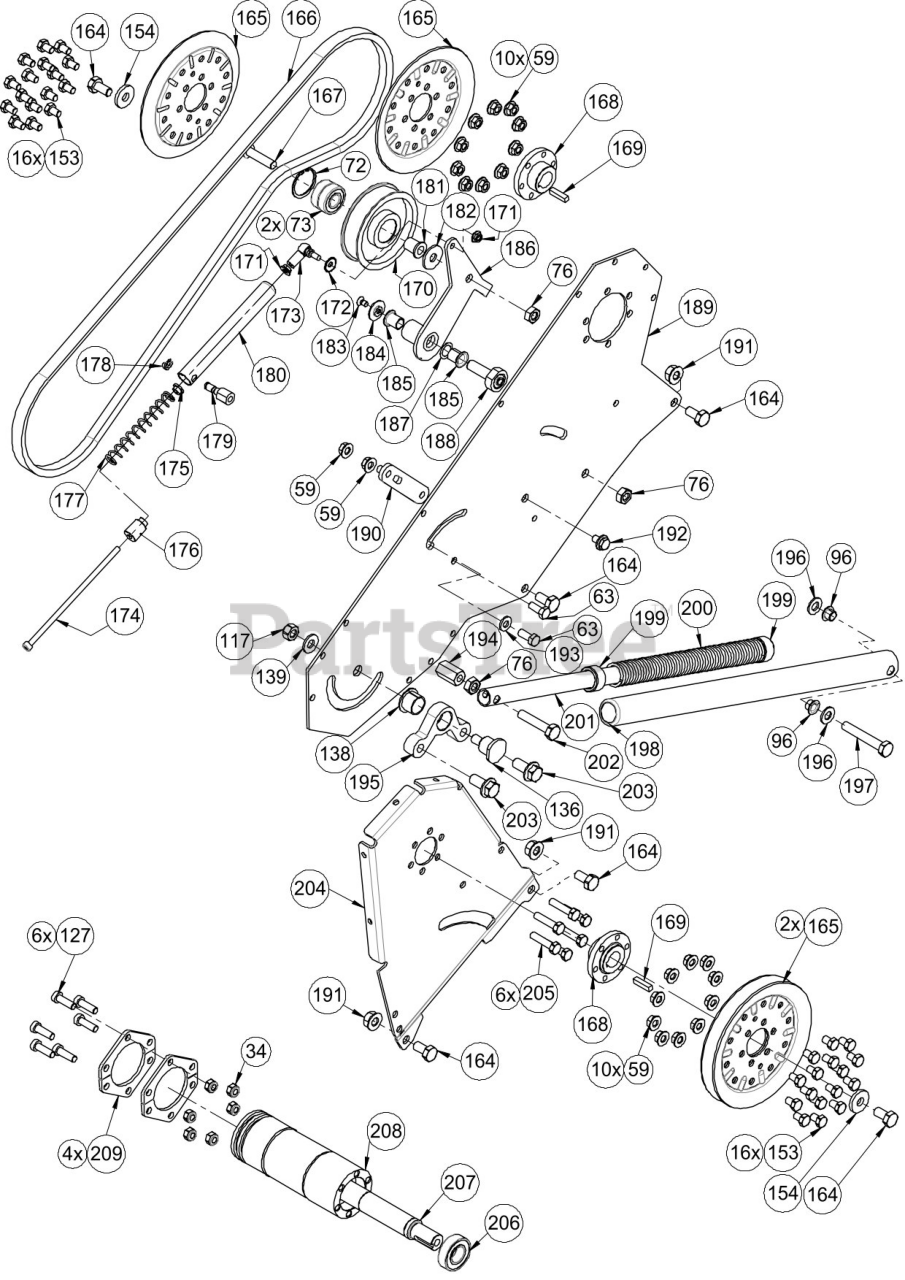

Deck Drive - Intermediate Parts Diagram

  • Title

34

Gravely 06501121

NUT, LK-NYL M8 DIN 985 8 ZCC

$0.99

$

Usually ships in 0 days

0

59

Gravely 06501108

NUT, FLG SLF LK M8 CL 8 ZCC

$0.99

$

Usually ships in 0 days

0

63

Gravely 05902332

BLT, HEX M8X20 DIN 933 8.8

$0.99

$

Usually ships in 0 days

0

72

Gravely 05700303

RG, RTNG-INT .35X1.5 DIN 472

$0.99

$

Usually ships in 0 days

0

73

Gravely 05400819

BRG,BALL 6202-2RSH (15X35X11)

$22.99

$

Usually ships in 0 days

0

76

Gravely 06501111

NUT, HEX M10 DIN 934 8 ZCC

$0.99

$

Usually ships in 0 days

0

96

Gravely 05501605

BHSG, DU FLG BB1009DU

$1.99

$

Usually ships in 0 days

0

117

Gravely 06501118

NUT, LK V-M10 DIN 980

$0.99

$

Usually ships in 0 days

0

127

Gravely 06100404

TORX SHCS M8X25 SIMILAR TO DIN 7984 8.8

$1.49

$

Usually ships in 0 days

0

136

Gravely 30242000

SCREW, COLLAR

$25.99

$

Usually ships in 0 days

0

138

Gravely 05501606

BHSG, DU FLG BB201DU

$4.99

$

Usually ships in 0 days

0

139

Gravely 06401401

WHSR, BLVL M10 DIN 6796

$2.49

$

Usually ships in 0 days

0

153

Gravely 05902316

BLT, HEX M8X12 DIN 933 8.8 ZCC

$0.99

$

Usually ships in 0 days

0

154

Gravely 06401424

WSHR, FLT M10.5 DIN 6340 ZCC

$1.49

$

Usually ships in 0 days

0

164

Gravely 05902321

BLT, HEX M10X20 DIN 933 8.8 ZCC

$0.99

$

Usually ships in 0 days

0

165

Gravely 30242600

HALF, PULLEY

$43.99

$

Usually ships in 0 days

0

166

Gravely 07200931

V-BELT, PTO - INTERMEDIATE

$219.99

$

Usually ships in 0 days

0

167

Gravely 06100323

SCR, BHC M10X40 ISO 7380

$2.49

$

Usually ships in 0 days

0

168

Gravely 30255500

HUB, PULLEY

$51.99

$

Usually ships in 0 days

0

169

Gravely 06600235

KEY, 6MM SQ X 25MM

$0.99

$

Usually ships in 0 days

0

170

Gravely 30255600

PULLEY, IDLER

$113.99

$

Usually ships in 0 days

0

171

Gravely 06501104

NUT, FLG M6 DIN 6923 8 ZCC

$0.99

$

Usually ships in 0 days

0

172

Gravely 06300131

WSHR, LK EDGE F M6

$0.99

$

Usually ships in 0 days

0

173

Gravely 30254100

JOINT, BALL

$9.49

$

Usually ships in 0 days

0

174

Gravely 06100331

SCR, SKH M6X160 8.8 ZCC

$3.49

$

Usually ships in 0 days

0

175

Gravely 05501614

BSHG, DU FLG BB 061006

$6.99

$

Usually ships in 0 days

0

176

Gravely 30247400

GUIDE, COMP. SPRING

$4.99

$

Usually ships in 0 days

0

177

Gravely 08300815

SPRING, COMPRESSION

$5.49

$

Usually ships in 0 days

0

178

Gravely 05700302

RETAINER, KL 8 MBO 09

$1.49

$

Usually ships in 0 days

0

179

Gravely 30237900

FOLLOWER, LONG

$11.99

$

Usually ships in 0 days

0

180

Gravely 30254200

SLEEVE, SPRING

$15.99

$

Usually ships in 0 days

0

181

Gravely 30248800

BUSHING, SLEEVE

$9.49

$

Usually ships in 0 days

0

182

Gravely 06401408

WSHR, FLT M10.5 DIN 9021 ZCC

$0.99

$

Usually ships in 0 days

0

183

Gravely 06100338

TORX FHCS M6X10 8.8 ZCC

$0.99

$

Usually ships in 0 days

0

184

Gravely 30255900

WASHER, SPECIAL

$39.99

$

Usually ships in 0 days

0

185

Gravely 05501616

BSHG, DU FLG BB 1207 DU

$2.49

$

Usually ships in 0 days

0

186

Gravely 54901900

ASSY, IDLER ARM

$34.99

$

Usually ships in 0 days

0

187

Gravely 06401428

WSHR, FLT M14 DIN 988

$0.99

$

Usually ships in 0 days

0

188

Gravely 30256000

SPACER, IDLER MOUNT

$43.99

$

Usually ships in 0 days

0

189

Gravely 30256100

PLATE, IDLER MOUNT

$129.99

$

Usually ships in 0 days

0

190

Gravely 54902000

LEVER, SPRING TENSION

$14.99

$

Usually ships in 0 days

0

191

Gravely 06501105

NUT, FLG SLF LK M10 CL 8 ZCC

$0.99

$

Usually ships in 0 days

0

192

Gravely 05902418

BLT, SER FLG M8X12 VERBUS RIPP BK

$1.49

$

Usually ships in 0 days

0

193

Gravely 06401423

WSHR, FLT M8.4 DIN 134 ZCC

$0.99

$

Usually ships in 0 days

0

194

Gravely 06501103

NUT, COUPLING M10 DIN 6334 ZCC

$4.99

$

Usually ships in 0 days

0

195

Gravely 30242100

BRKT, PIVOT

$39.99

$

Usually ships in 0 days

0

196

Gravely 06401420

WSHR, FLT A M10.5 DIN 125 ZCC

$0.99

$

Usually ships in 0 days

0

197

Gravely 05902322

BLT, HEX M10X65 DIN 931 10.9 (BLK)

$1.99

$

Usually ships in 0 days

0

198

Gravely 30242200

SLEEVE, SPRING

$39.99

$

Usually ships in 0 days

0

199

Gravely 30241000

GUIDE, SPRING

$9.49

$

Usually ships in 0 days

0

200

Gravely 08300813

SPRING, COMPRESSION

$13.99

$

Usually ships in 0 days

0

201

Gravely 30242300

TUBE, SPRING

$44.99

$

Usually ships in 0 days

0

202

Gravely 05902323

BLT, HEX M10X50 DIN 931 8.8 ZCC

$1.49

$

Usually ships in 0 days

0

203

Gravely 05902324

BLT, SER FLG M12X25 VERBUS RIPP 100

$2.99

$

Usually ships in 0 days

0

204

Gravely 30256500

PLATE, SPINDLE MOUNT

$46.99

$

Usually ships in 0 days

0

205

Gravely 05902422

BLT, HEX M8X35 DIN 933 8.8 ZCC

$0.99

$

Usually ships in 0 days

0

206

Gravely 05400817

BRG,BALL .6004-2RSH (20X42X12)

$22.99

$

Usually ships in 0 days

0

207

Gravely 30256600

SPINDLE, PULLEY

$91.99

$

Usually ships in 0 days

0

208

Gravely 30256700

HOUSING, SPINDLE

$125.99

$

Usually ships in 0 days

0

209

Gravely 30256800

BRACKET, SPINDLE MOUNT

$10.99

$

Usually ships in 0 days

0
