949001 (OVIS 40 RC) - Gravely Remote Control Flail Mower (SN: 000101 & Above) Deck - Flail Parts Diagram

Remote Control Flail Mower

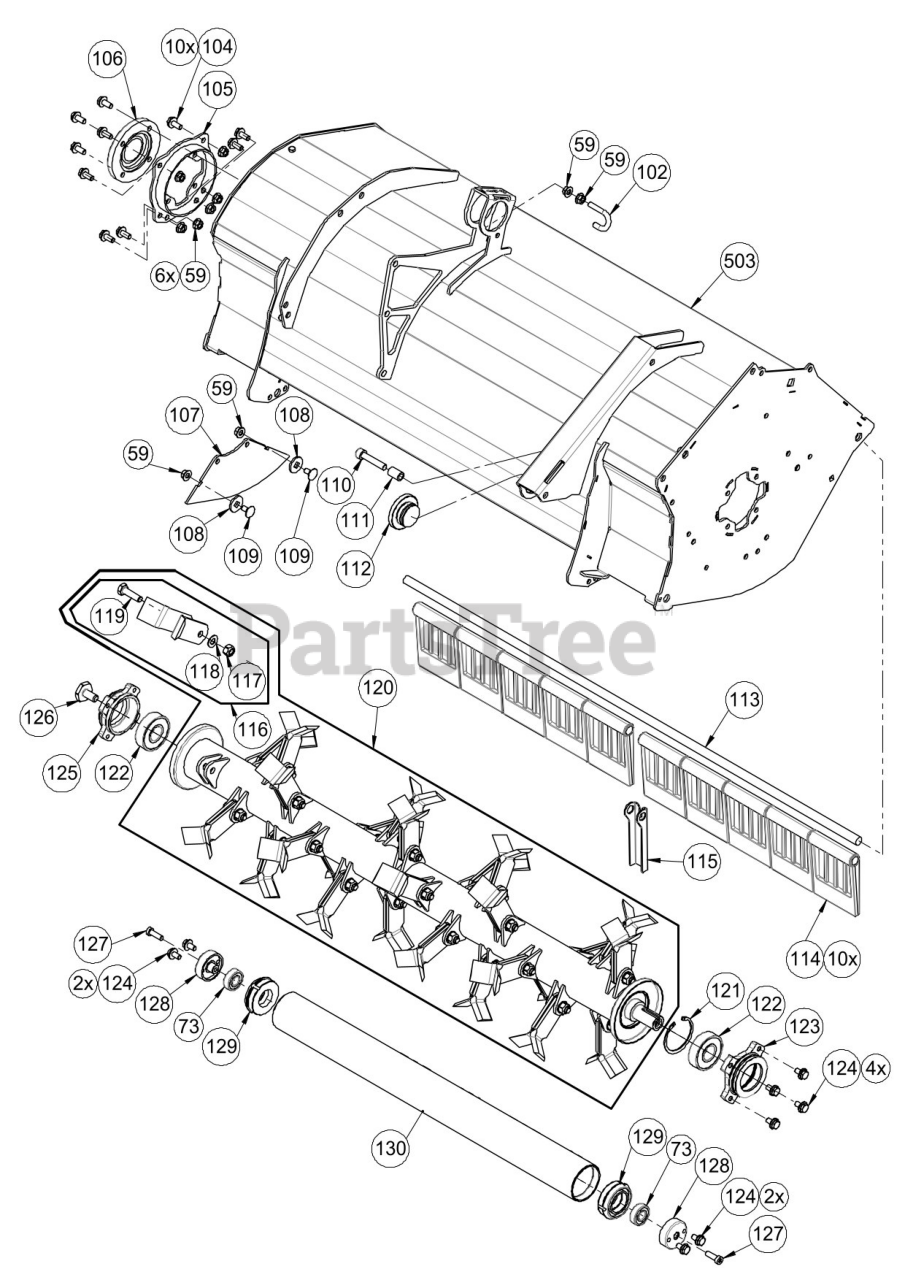

Deck - Flail Parts Diagram

  • Title

59

Gravely 06501108

NUT, FLG SLF LK M8 CL 8 ZCC

$1.49

$

Usually ships in 4-12 days

0

73

Gravely 05400819

BRG,BALL 6202-2RSH (15X35X11)

$25.99

$

Usually ships in 4-12 days

0

102

Gravely 30249900

HOOK, THREADED

$3.99

$

Usually ships in 4-12 days

0

104

Gravely 05902421

BLT, SER FLG M8X18 VERBUS RIPP

$2.99

$

Usually ships in 4-12 days

0

105

Gravely 54901000

SHIELD, BEARING

$86.99

$

Usually ships in 4-12 days

0

106

Gravely 30250000

COVER, BEARING

$93.99

$

Usually ships in 4-12 days

0

107

Gravely 30250100

PLATE, LOCKING

$18.99

$

Usually ships in 4-12 days

0

108

Gravely 06401432

WSHR, FLT V M9.0 DIN 440 ZCC

$2.49

$

Usually ships in 4-12 days

0

109

Gravely 05902338

BLT, RHSN M8X 16 DIN 603 8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

110

Gravely 06100325

SCR, SKH M10X50 DIN ISO 4762 10.9

$2.49

$

Usually ships in 4-12 days

0

111

Gravely 30241900

SPACER

$5.49

$

Usually ships in 4-12 days

0

112

Gravely 30240900

PLUG

$17.99

$

Usually ships in 4-12 days

0

113

Gravely 30250300

ROD, FLAP PIVOT

$143.99

$

Usually ships in 4-12 days

0

114

Gravely 30246600

FLAP, BRUSH DEFLECTOR

$15.99

$

Usually ships in 4-12 days

0

115

Gravely 30250400

SPACER, FLAP (DEFLECTOR)

$15.99

$

Usually ships in 4-12 days

0

116

Gravely 54900100

KIT, FLAIL BLADE

Note: Note: Due to Balance/Vibration do not replace more than 2 per Shaft. If more that To Flails are damaged Replace all Flails with Kit 54901100

$31.99

$

Usually ships in 4-12 days

0

117

Gravely 06501118

NUT, LK V-M10 DIN 980

$2.49

$

Usually ships in 4-12 days

0

118

Gravely 06401433

WSHR, WAVE B10 DIN 137-B

$1.49

$

Usually ships in 4-12 days

0

119

Gravely 05902333

BLT, HEX M10X37 DIN 931 10.9

$3.99

$

Usually ships in 4-12 days

0

120

Gravely 54901100

KIT, FLAIL SHAFT (W/28 FLAILS SETS)

$2272.99

$

Usually ships in 4-12 days

0

121

Gravely 05700236

RG, RTNG-INT 62X2 DIN 472

$2.49

$

Usually ships in 4-12 days

0

122

Gravely 05400822

BRG,BALL 6305-2RSH (25X62X17)

$

$

Not available

123

Gravely 30250500

HOUSING, FLANGE BEARING (RH)

$100.99

$

Usually ships in 4-12 days

0

124

Gravely 05902315

BLT, SER FLG M8X14 VERBUS RIPP

$3.49

$

Usually ships in 4-12 days

0

125

Gravely 30250600

HOUSING, FLANGE BEARING (LH)

$143.99

$

Usually ships in 4-12 days

0

126

Gravely 30250700

BLT HEX

$23.99

$

Usually ships in 4-12 days

0

127

Gravely 06100404

TORX SHCS M8X25 SIMILAR TO DIN 7984 8.8

$2.49

$

Usually ships in 4-12 days

0

128

Gravely 30250800

SHIELD, BEARING MOUNTING

$62.99

$

Usually ships in 4-12 days

0

129

Gravely 30250900

FLANGE, BEARING (ROLLER)

$50.99

$

Usually ships in 4-12 days

0

130

Gravely 30251000

ROLLER

$143.99

$

Usually ships in 4-12 days

0

503

Gravely 54901200

DECK, FLAIL MOWER

$1433.99

$

Usually ships in 4-12 days

0
