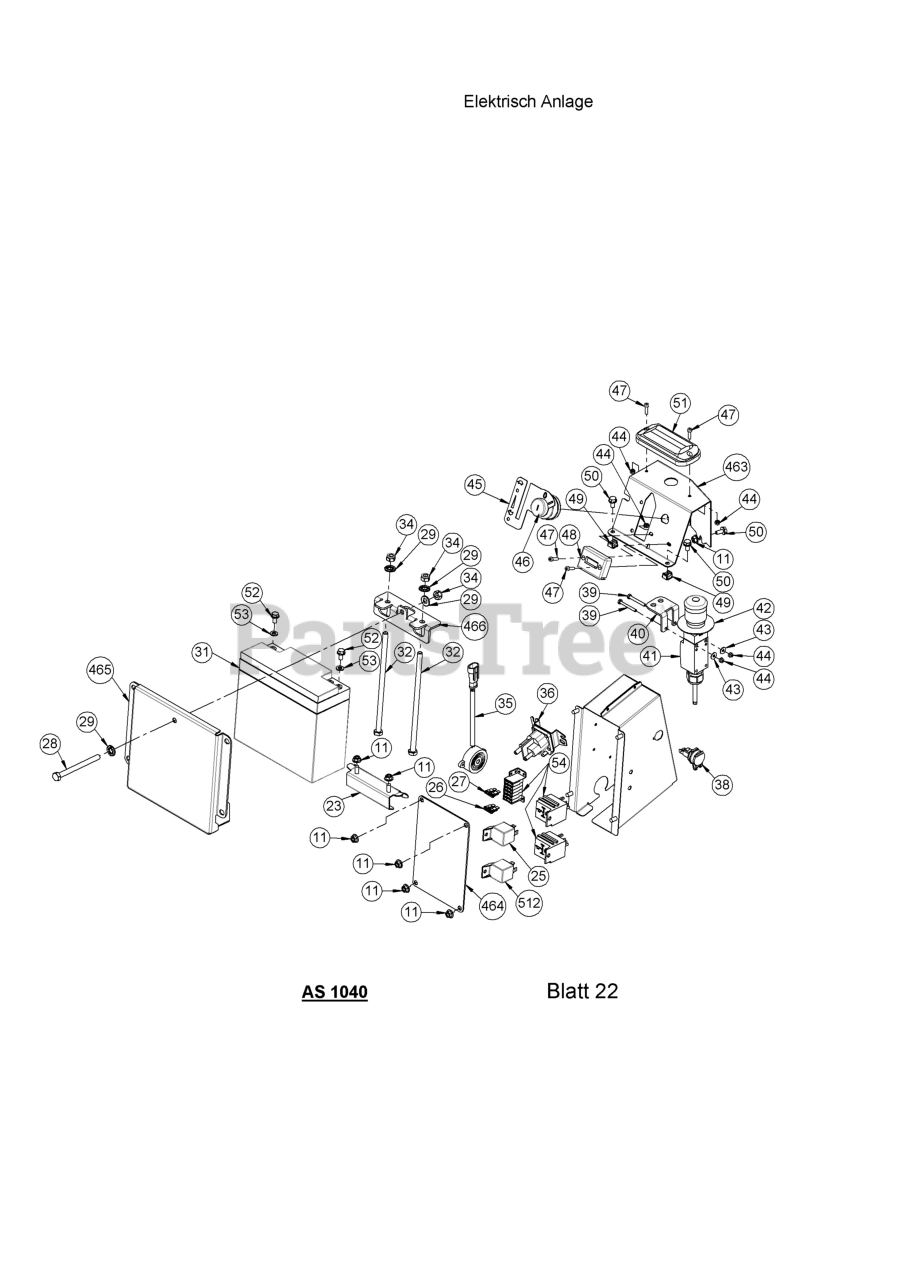

949001 (OVIS 40 RC) - Gravely Remote Control Flail Mower (SN: 000101 & Above) Electrical Parts Diagram

Remote Control Flail Mower

Electrical Parts Diagram

  • Title

11

Gravely 06501106

NUT, FLG SLF LK M6 CL 8 ZCC

$1.49

$

Usually ships in 4-12 days

0

23

Gravely 30241600

BRACKET, WIRE HARNESS

$35.99

$

Usually ships in 4-12 days

0

25

Gravely 30116800

RELAY, W/BRACKET-12V 40A SPDT

$

$

Currently unavailable

26

Gravely 30239900

FUSE, 25A

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 09356600

FUSE-10 AMP ATC TYPE

$

$

Not available

28

Gravely 05902312

BLT, HEX M8X95 DIN 931 8.8 ZCC

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 06300132

WSHR, LK-EDGE SKM8(8.2X18X1.4)

$1.49

$

Usually ships in 4-12 days

0

31

"BATTERY, MP22-12C (12V 22 AH)"

Note: Purchase Locally

$

$

Not available

32

Gravely 05902313

BLT, HEX M8X190 DIN 931 8.8 ZCC

$10.99

$

Usually ships in 4-12 days

0

34

Gravely 06501121

NUT, LK-NYL M8 DIN 985 8 ZCC

$1.49

$

Usually ships in 4-12 days

0

35

Gravely 30240000

ALARM, AUDIBLE

$47.99

$

Usually ships in 4-12 days

0

36

Gravely 30262200

SOLINOID, STARTER

$89.99

$

Usually ships in 4-12 days

0

38

Gravely 30240100

PORT, 12 VOLT POWER

$29.99

$

Usually ships in 4-12 days

0

39

Gravely 05902314

BLT, HEX M4X35 DIN 933 8.8 ZCC

$1.99

$

Usually ships in 4-12 days

0

40

Gravely 30241700

BRACKET, EMERGENCY STOP SWITCH

$9.49

$

Usually ships in 4-12 days

0

41

Gravely 30262300

SWITCH, EMERGENCY STOP

$118.99

$

Usually ships in 4-12 days

0

42

Gravely 07802237

DECAL, E STOP

$14.99

$

Usually ships in 4-12 days

0

43

Gravely 06401413

WSHR, FLT M4.3 DIN 9021 ZCC

$1.49

$

Usually ships in 4-12 days

0

44

Gravely 06501117

NUT, LK NYL M4 DIN 985 8 ZCC

$1.49

$

Usually ships in 4-12 days

0

45

Gravely 30241800

PLATE, THROTTLE & IGNITION

$11.99

$

Usually ships in 4-12 days

0

46

Gravely 30240200

SWITCH, IGNITION W/O KEY

$86.99

$

Usually ships in 4-12 days

0

47

Gravely 06100327

SCR, SKH M4X16 DIN ISO 4762 8.8

$1.49

$

Usually ships in 4-12 days

0

48

Gravely 30240300

HOUR METER

$157.99

$

Usually ships in 4-12 days

0

49

Gravely 06501101

NUT, CAGE M6

$1.49

$

Usually ships in 4-12 days

0

50

Gravely 05902302

BLT, FLG SLF LK M6X12

$1.49

$

Usually ships in 4-12 days

0

51

Gravely 30240400

LIGHT, STROBE

$129.99

$

Usually ships in 4-12 days

0

52

Gravely 05902306

BLT, FLG M6X12 DIN 6921 8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

53

Gravely 06401402

WHSR, FLT M6.4 DIN 125 ST  ZCC

$1.49

$

Usually ships in 4-12 days

0

54

Gravely 30240500

HARNESS, OVIS MAIN

$1722.99

$

Usually ships in 4-12 days

0

463

Gravely 30234653

PANEL, CONTROL

$

$

Currently unavailable

464

Gravely 30234753

COVER, ELECTRICAL PANEL

$19.99

$

Usually ships in 4-12 days

0

465

Gravely 30234853

HOLDER, BATTERY

$45.99

$

Usually ships in 4-12 days

0

466

Gravely 30234953

BRACKET, BATTERY UPPER

$20.99

$

Usually ships in 4-12 days

0

512

Gravely 30262400

RELAY, 70A

$41.99

$

Usually ships in 4-12 days

0
