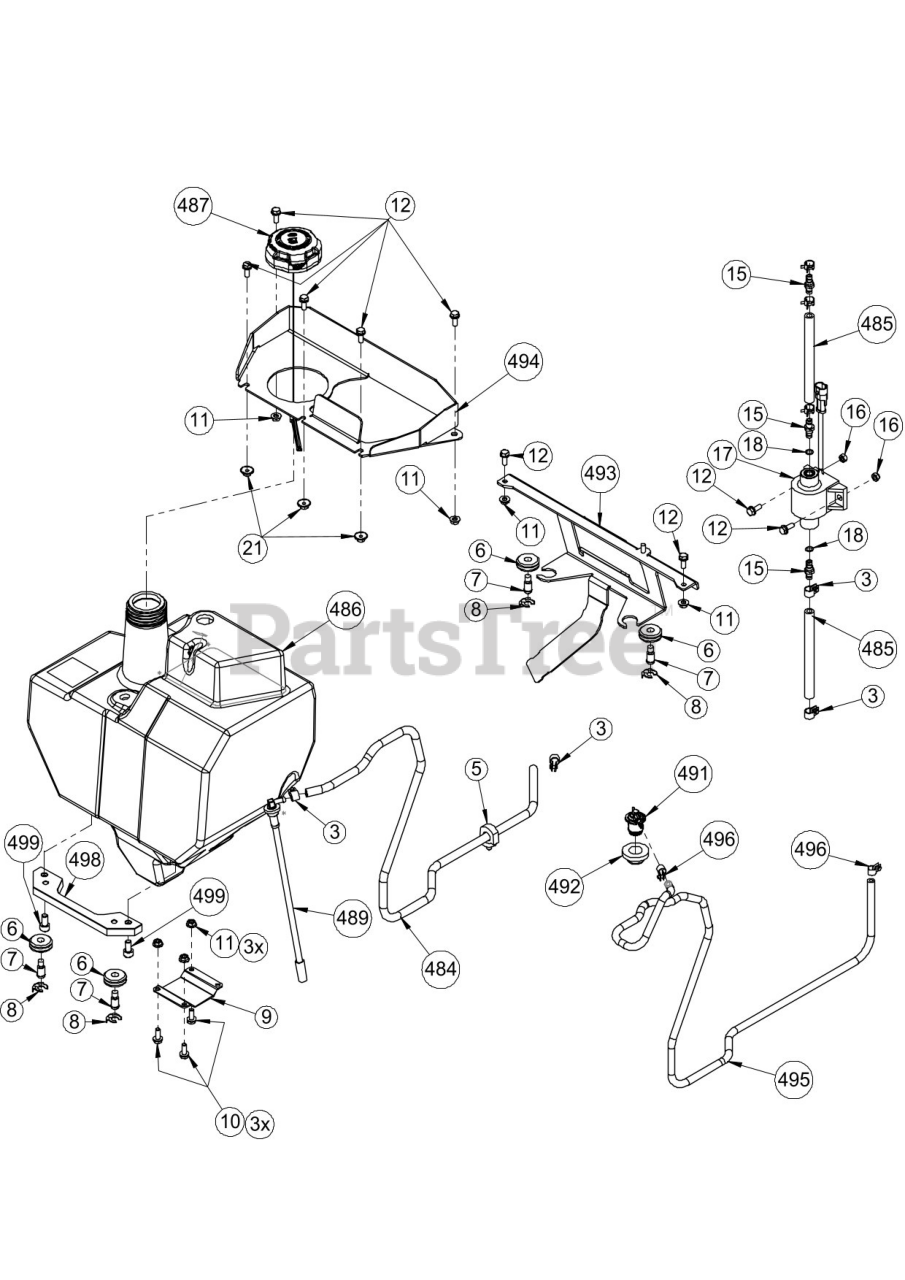

949001 (OVIS 40 RC) - Gravely Remote Control Flail Mower (SN: 000101 & Above) Fuel System and Tank Parts Diagram

Remote Control Flail Mower

Fuel System and Tank Parts Diagram

  • Title

3

Gravely 07002407

CLAMP, HOSE 13/9

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 30246900

RETAINER, FUEL HOSE

$

$

Currently unavailable

6

Gravely 30247000

GROMMET, RUBBER

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 30252200

BOLT, TANK

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 30247900

CLIP, TANK

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 30252300

GUARD, TANK MUD

$20.99

$

Usually ships in 4-12 days

0

10

Gravely 06100402

TORX PHCS SELF TAP M6X12 8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

11

Gravely 06501106

NUT, FLG SLF LK M6 CL 8 ZCC

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 06501107

NUT, FLG SLF LK M6X16

$1.49

$

Usually ships in 4-12 days

0

15

Gravely 30252400

FITTING, FUEL LINE

$31.99

$

Usually ships in 4-12 days

0

16

Gravely 06501119

NUT, LK V-M6 DIN 980 8 ZCC

$1.49

$

Usually ships in 4-12 days

0

17

Gravely 30257400

PUMP, FUEL

$258.99

$

Usually ships in 4-12 days

0

18

Gravely 30247800

O - RING 8X1,5

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 06501112

NUT, HEX SEMS M6

$3.49

$

Usually ships in 4-12 days

0

484

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

485

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

486

Gravely 30205600

ASM, TANK FUEL - OVIS

$330.99

$

Usually ships in 4-12 days

0

487

Gravely 09190200

CAP-FUEL- 2.25 RATCHET INLET V

$21.99

$

In Stock, Qty 20+

0

489

Gravely 30205700

PICKUP, FUEL

$13.99

$

Usually ships in 4-12 days

0

491

Gravely 05185600

VALVE, COMBINATION VENT 3/16

$19.99

$

In Stock, only 1 left!

0

492

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$4.99

$

In Stock, Qty 20+

0

493

Gravely 30257200

BRACKET, TANK MOUNTING

$64.99

$

Usually ships in 4-12 days

0

494

Gravely 54901300

Plate, Tank

$143.99

$

Usually ships in 4-12 days

0

495

Gravely 04745900

HOSE, .188 30R7 BULK

$1.99

$

Usually ships in 4-12 days

0

496

Gravely 07002406

CLAMP, HOSE 11/9

$5.99

$

Usually ships in 4-12 days

0

498

Gravely 30252500

BRKT, TANK MOUNTING

$71.99

$

Usually ships in 4-12 days

0

499

Gravely 05972300

SCR-SKH M8-1.25X16

$

$

Not available
