949001 (OVIS 40 RC) - Gravely Remote Control Flail Mower (SN: 000101 & Above) Track - Left Parts Diagram

Remote Control Flail Mower

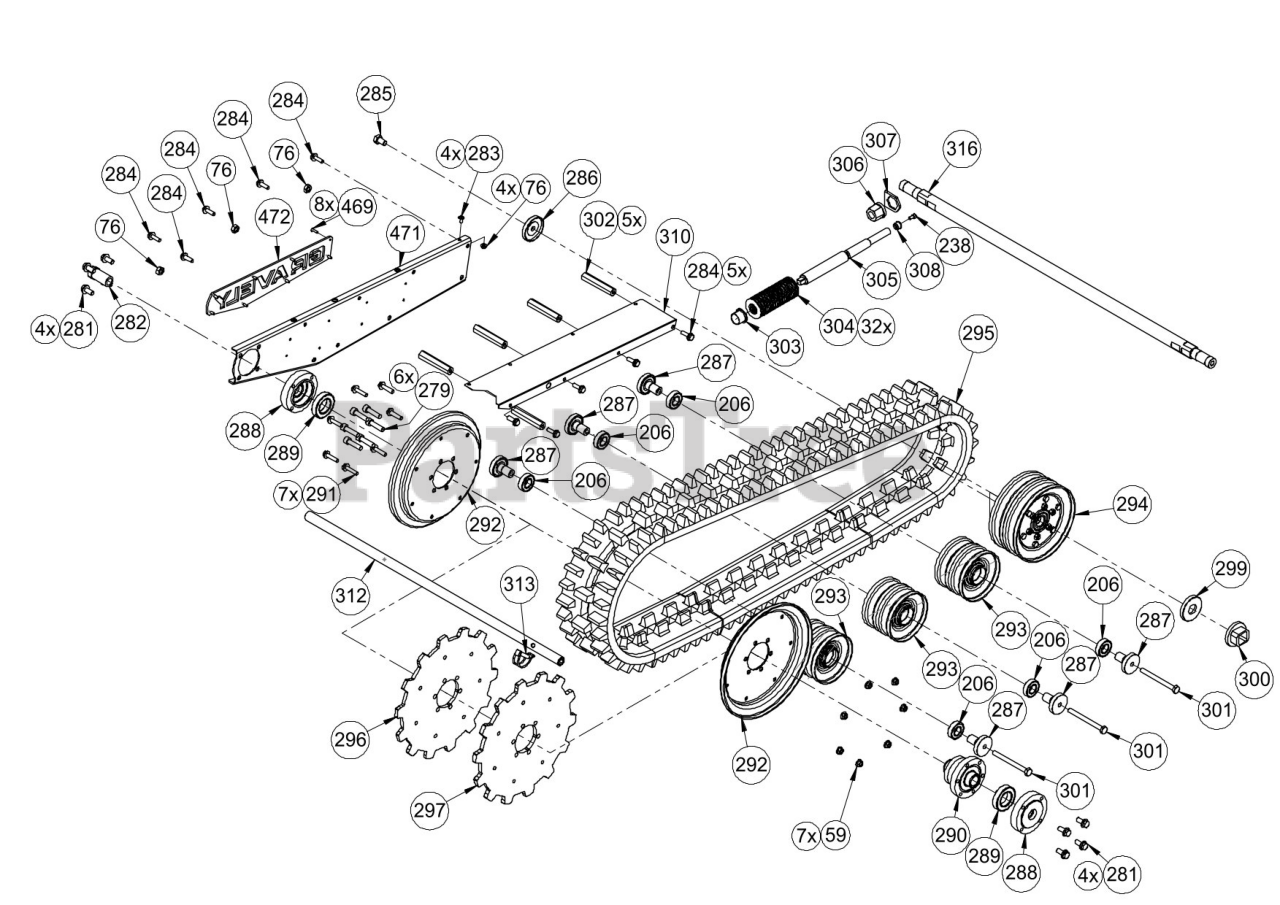

Track - Left Parts Diagram

  • Title

59

Gravely 06501108

NUT, FLG SLF LK M8 CL 8 ZCC

$1.49

$

Usually ships in 4-12 days

0

76

Gravely 06501111

NUT, HEX M10 DIN 934 8 ZCC

$1.49

$

Usually ships in 4-12 days

0

206

Gravely 05400817

BRG,BALL .6004-2RSH (20X42X12)

$97.99

$

Usually ships in 4-12 days

0

238

Gravely 06100330

SCR, SKH M6X12 DIN ISO 4762 8.8

$1.49

$

Usually ships in 4-12 days

0

279

Gravely 06100324

SCR, SKH M10X40 DIN ISO 4762 8.8

$2.99

$

Usually ships in 4-12 days

0

281

Gravely 05902326

BLT, SER FLG M10X22 VERBUS RIPP ZIL.

$2.99

$

Usually ships in 4-12 days

0

282

Gravely 30244000

NUT, AXLE

$30.99

$

Usually ships in 4-12 days

0

283

Gravely 06100335

TORX FBHCS M6X12 8.8

$1.99

$

Usually ships in 4-12 days

0

284

Gravely 05902327

BLT, SER FLG M8X25 VERBUS RIPP 100

$2.99

$

Usually ships in 4-12 days

0

285

Gravely 05902328

BLT, HEX M12X20 DIN 933 8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

286

Gravely 30244100

COVER, BEARING (OUTSIDE)

$35.99

$

Usually ships in 4-12 days

0

287

Gravely 05501607

BUSHING, SLEEVE

$37.99

$

Usually ships in 4-12 days

0

288

Gravely 30244200

SHIELD, BEARING

$71.99

$

Usually ships in 4-12 days

0

289

Gravely 05400818

BRG,BALL .6007-2RS DIN625(35X62X14)

$15.99

$

Usually ships in 4-12 days

0

290

Gravely 30244300

HUB, SPROCKET

$139.99

$

Usually ships in 4-12 days

0

291

Gravely 05902329

BLT, SER FLG M8X35 VERBUS RIPP BK

$2.49

$

Usually ships in 4-12 days

0

292

Gravely 30244400

HALF, SPROCKET PULLEY

$88.99

$

Usually ships in 4-12 days

0

293

Gravely 30246200

ROLLER, TRACK

$157.99

$

Usually ships in 4-12 days

0

294

Gravely 54900800

ASSY, IDLER WHEEL

$301.99

$

Usually ships in 4-12 days

0

295

Gravely 30239500

TRACK, RUBBER

$687.99

$

Usually ships in 4-12 days

0

296

Gravely 30244500

HALF, SPROCKET (8)

$100.99

$

Usually ships in 4-12 days

0

297

Gravely 30244600

HALF, SPROCKET (10)

$115.99

$

Usually ships in 4-12 days

0

299

Gravely 30244700

COVER, BEARING (INSIDE)

$31.99

$

Usually ships in 4-12 days

0

300

Gravely 30244851

BUSHING, AXLE

$29.99

$

Usually ships in 4-12 days

0

301

Gravely 05902330

BLT, HEX M10X11 DIN 931 8.8 ZCC

$3.49

$

Usually ships in 4-12 days

0

302

Gravely 30244900

NUT, COUPLING

$19.99

$

Usually ships in 4-12 days

0

303

Gravely 05501608

BSHG, DU FLG BB2521DU

$5.99

$

Usually ships in 4-12 days

0

304

Gravely 06401304

WSHR, BLVL A50X25.4X3 DIN 2093

$14.99

$

Usually ships in 4-12 days

0

305

Gravely 30245000

SHAFT, TENSION

$71.99

$

Usually ships in 4-12 days

0

306

Gravely 05901029

NUT, FLG M20 DIN 6331 ZCC

$12.99

$

Usually ships in 4-12 days

0

307

Gravely 30245100

INDEXER, THRUST BUSHING

$9.49

$

Usually ships in 4-12 days

0

308

Gravely 05501609

BUSHING, THRUST

$39.99

$

Usually ships in 4-12 days

0

310

Gravely 30245251

COVER, ROLLER GUIDE (LH)

$18.99

$

Usually ships in 4-12 days

0

312

Gravely 30245300

SHAFT, EXTENSION

$86.99

$

Usually ships in 4-12 days

0

313

Gravely 30245400

PIN, LYNCH

$3.99

$

Usually ships in 4-12 days

0

316

Gravely 30245500

AXLE, IDLER WHEEL

$186.99

$

Usually ships in 4-12 days

0

469

Gravely 06800226

RVT, 4.8X16.9 ST ZCC

$2.49

$

Usually ships in 4-12 days

0

471

Gravely 30245651

SHIELD, ROLLER GUIDE (LH)

$87.99

$

Usually ships in 4-12 days

0

472

Gravely 30245753

SIGN, GRAVELY (LH)

$67.99

$

Usually ships in 4-12 days

0
