949001 (OVIS 40 RC) - Gravely Remote Control Flail Mower (SN: 000101 & Above) Transaxle - Right Parts Diagram

Remote Control Flail Mower

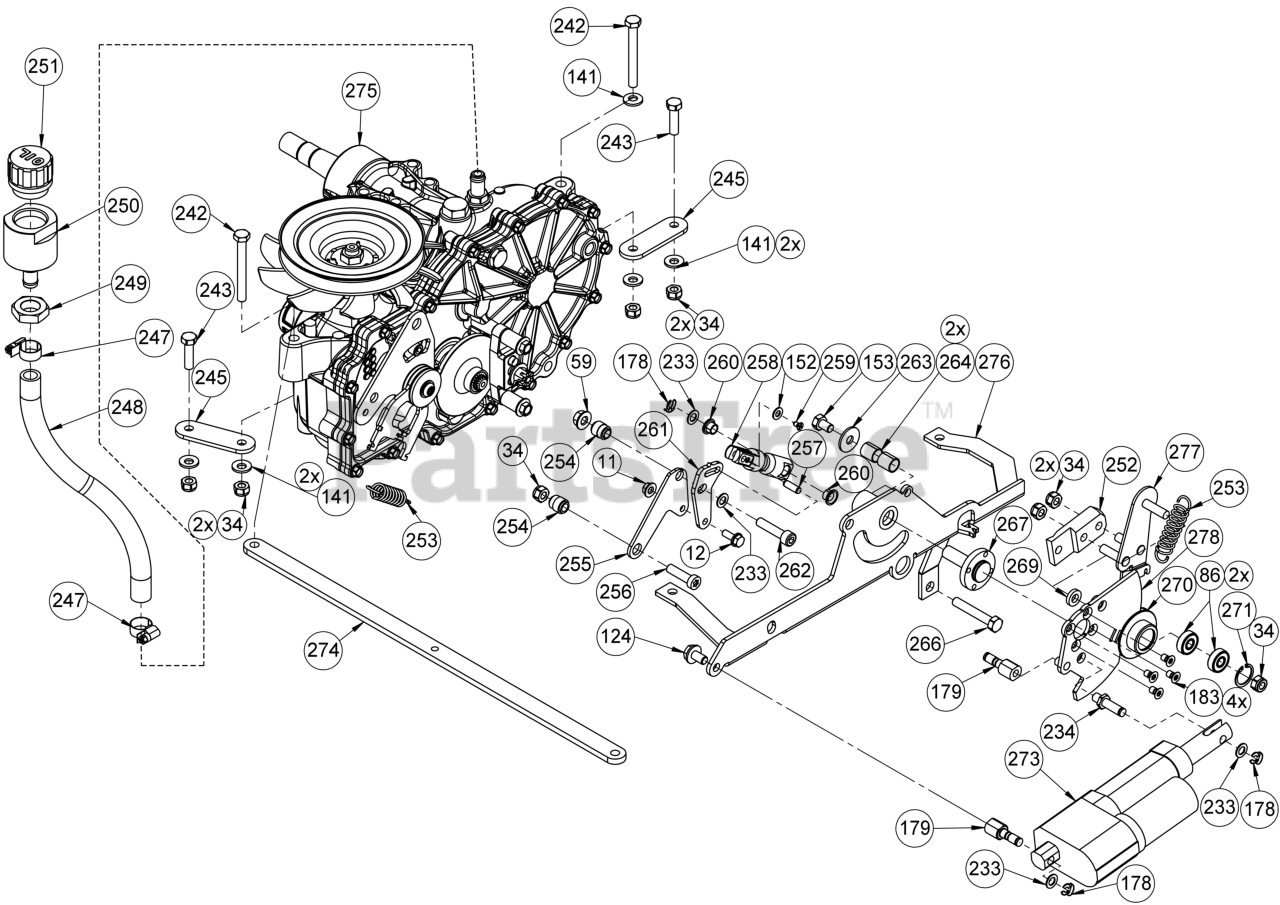

Transaxle - Right Parts Diagram

  • Title

11

Gravely 06501106

NUT, FLG SLF LK M6 CL 8 ZCC

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 06501107

NUT, FLG SLF LK M6X16

$1.49

$

Usually ships in 4-12 days

0

34

Gravely 06501121

NUT, LK-NYL M8 DIN 985 8 ZCC

$1.49

$

Usually ships in 4-12 days

0

59

Gravely 06501108

NUT, FLG SLF LK M8 CL 8 ZCC

$1.49

$

Usually ships in 4-12 days

0

86

Gravely 05400816

BRG,BALL .608-2RS DIN625 (8X22X7)

$10.99

$

Usually ships in 4-12 days

0

124

Gravely 05902315

BLT, SER FLG M8X14 VERBUS RIPP

$3.49

$

Usually ships in 4-12 days

0

141

Gravely 06401403

WSHR - BLVL M8 DIN 6796

$18.99

$

Usually ships in 4-12 days

0

152

Gravely 06401416

WSHR, FLT M6 X M12 X M1 DIN 988

$1.49

$

Usually ships in 4-12 days

0

153

Gravely 05902316

BLT, HEX M8X12 DIN 933 8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

178

Gravely 05700302

RETAINER, KL 8 MBO 09

$2.49

$

Usually ships in 4-12 days

0

179

Gravely 30237900

FOLLOWER, LONG

$13.99

$

Usually ships in 4-12 days

0

183

Gravely 06100338

TORX FHCS M6X10 8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

233

Gravely 06401417

WSHR, FLT M8 X M14 X M1 DIN 988

$1.49

$

Usually ships in 4-12 days

0

234

Gravely 30238000

FOLLOWER, SHORT

$10.99

$

Usually ships in 4-12 days

0

242

Gravely 05902317

BLT, HEX M8X70 DIN 931 10.9 (BLK)

$2.49

$

Usually ships in 4-12 days

0

243

Gravely 05902318

BLT, HEX M8X30 DIN 933 8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

245

Gravely 30238100

BRACKET, HOLDING

$20.99

$

Usually ships in 4-12 days

0

254

Gravely 30238400

SPACER

$17.99

$

Usually ships in 4-12 days

0

247

Gravely 06922100

CLAMP-HOSE WRM .44/.78X.53 F06

$5.99

$

Usually ships in 4-12 days

0

248

Gravely 30235600

HOSE, HYD. RESERVOIR

$9.49

$

Usually ships in 4-12 days

0

249

Gravely 06501116

NUT, JAM M20X1.5 DIN 936 8 ZCC

$2.99

$

Usually ships in 4-12 days

0

250

Gravely 30238200

RESERVOIR, TRANS OIL

$44.99

$

Usually ships in 4-12 days

0

251

Gravely 30235500

CAP, RESERVOIR

$20.99

$

Usually ships in 4-12 days

0

252

Gravely 30238300

HOLDER, BRAKE PAD

$48.99

$

Usually ships in 4-12 days

0

253

Gravely 08300812

SPRING, TENSION (RTN)

$6.99

$

Usually ships in 4-12 days

0

255

Gravely 30238500

LEVER, DRIVE

$7.99

$

Usually ships in 4-12 days

0

256

Gravely 06100405

TORX SHCS M8X30 8.8

$2.49

$

Usually ships in 4-12 days

0

257

Gravely 06800227

PIN, DOWEL .6M 6X18-A DIN EN ISO 8734

$1.99

$

Usually ships in 4-12 days

0

258

Gravely 30238600

LINK, CAM-TO-DRIVE

$61.99

$

Usually ships in 4-12 days

0

259

Gravely 07400216

SCR, TAP M4X8 GWFUS DIN 7500

$1.49

$

Usually ships in 4-12 days

0

260

Gravely 05501603

BHSG, DU SLV 0808DU

$9.99

$

Usually ships in 4-12 days

0

261

Gravely 30238700

LEVER, ADJUSTMENT

$10.99

$

Usually ships in 4-12 days

0

262

Gravely 06100333

SCR, SKH M8X35 DIN ISO 4762 10.9

$2.49

$

Usually ships in 4-12 days

0

263

Gravely 06401418

WSHR, FLT M8.4 DIN 9021 ZCC

$1.49

$

Usually ships in 4-12 days

0

264

Gravely 05501604

BSHG, DU1215DU

$2.49

$

Usually ships in 4-12 days

0

266

Gravely 05902304

BLT, HEX M8X 45 DIN 931 8.8 ZCC

$1.99

$

Usually ships in 4-12 days

0

267

Gravely 30238800

HUB, CAM

$76.99

$

Usually ships in 4-12 days

0

269

Gravely 30238900

SPACER

$4.99

$

Usually ships in 4-12 days

0

270

Gravely 30239000

DISC, CAM GUIDE

$50.99

$

Usually ships in 4-12 days

0

271

Gravely 05700305

RG, RTNG-INT. 22X1 DIN 472

$1.49

$

Usually ships in 4-12 days

0

273

Gravely 30235000

ACTUATOR, LINEAR

$716.99

$

Usually ships in 4-12 days

0

274

Gravely 30239100

BRACKET, LARGE HOLDING

$23.99

$

Usually ships in 4-12 days

0

275

Gravely 30220400

TRANSAXLE, RH ZT3100

$1755.99

$

Usually ships in 4-12 days

0

275

Gravely 21544900

FILTER, HYDRO-GEAR 2800 TRANS
(Superseded to 21545100)

Note: Component Service Part

$44.99

$

Usually ships in 4-12 days

0

275

Gravely 30259100

GUARD, RH OIL FILTER

Note: Component Service Part

$186.99

$

Usually ships in 4-12 days

0

275

Gravely 21500012

FAN 7.0(10 BLADE)

Note: Component Service Part

$13.99

$

Usually ships in 4-12 days

0

275

Gravely 21500027

KIT- FAN/PULLEY

Note: Component Service Part

$34.99

$

Usually ships in 4-12 days

0

276

Gravely 30239200

BRACKET, RIGHT TRANS CONTROL

$82.99

$

Usually ships in 4-12 days

0

277

Gravely 30239300

LEVER, BRAKE (RH)

$20.99

$

Usually ships in 4-12 days

0

278

Gravely 30258051

CAM, DRIVE/BRAKE (RH)

$

$

Currently unavailable
