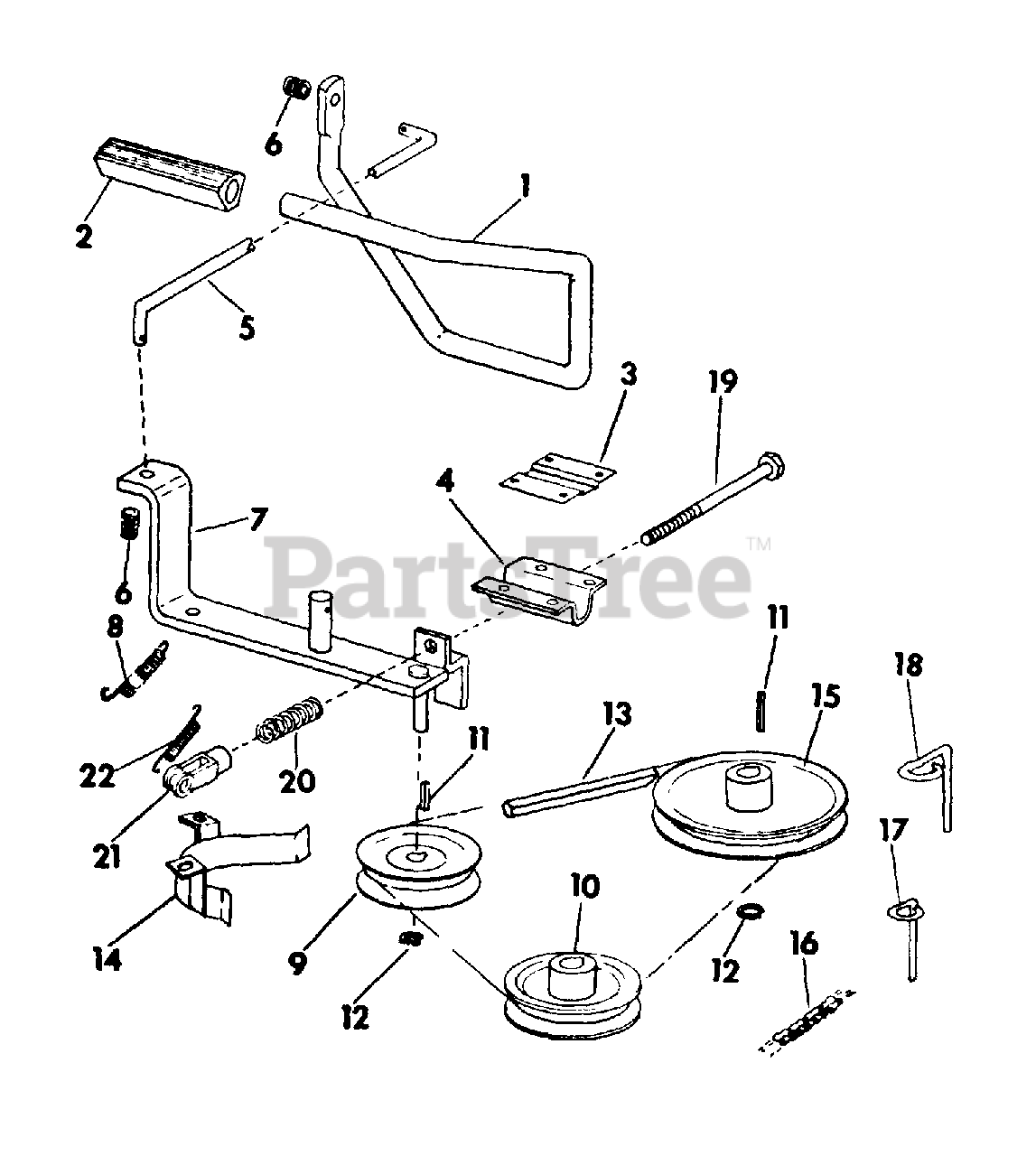

95 (0340020U) - International Harvester Riding Mower (1973 - 1978) Brakes, Clutch Controls & Transmission Drive Parts Diagram

Riding Mower

Brakes, Clutch Controls & Transmission Drive Parts Diagram

  • Title

1

Cub Cadet IH-493530-R1

PEDAL, CLUTCH & BRAKE

$

$

Not available

Cub Cadet IH-19372-R1

PIN, 1/8 X 7/8 C-Z HV COILED SPRING
(Superseded to 715-3017)

$

$

Not available

2

Cub Cadet IH-487961-R1

PAD, PEDAL

$

$

Not available

3

Cub Cadet IH-57835-C1

SPRINGER, CLUTCH PEDAL

$

$

Not available

4

Cub Cadet IH-488034-R1

CLAMP, PEDAL PIVOT

$

$

Currently unavailable

Cub Cadet IH-180020

SCREW, 1/4-20 X 3/4 ZND HEX-HD CAP

$

$

Currently unavailable

5

Cub Cadet IH-57836-C1

ROD, CLUTCH CONTROL

$

$

Currently unavailable

6

Cub Cadet IH-404651-R1

SPRING, ANTI-RATTLE
(Superseded to 732-3031)

$

$

Not available

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .051 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-177923

PIN, 1/8 X 3/4 COT.
(Superseded to 914-0474)

$

$

Not available

7

Cub Cadet IH-57837-C91

BAR ASSY, CLUTCH & BRAKE

$

$

Currently unavailable

8

Cub Cadet IH-549109-R1

SPRING, PEDAL RETURN
(Superseded to 932-3010)

$

$

Not available

Cub Cadet IH-19672-R1

BOLT, 3/8-16 X 1-1/2 WELD

$

$

Currently unavailable

Cub Cadet IH-21796-R1

WASHER, .656 X 1.00 X 16 GA ZND

$

$

Not available

Cub Cadet IH-18481-R1

PIN, 3/16 X 1 C-Z COT.

$

$

Currently unavailable

9

Cub Cadet IH-58391-C1

PULLEY, IDLER
(Superseded to 956-3024)

$

$

Not available

Cub Cadet IH-385525-R1

NUT, 3/8-16 HEX LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet IH-57841-C1

PULLEYS TRACTION MOTOR

$

$

Currently unavailable

11

Cub Cadet IH-124549

KEY, 3/16 X 3/4 SAE 9 WOODRUFF
(Superseded to 914-0868)

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet IH-269174-R1

RING. EXTERNAL RETAINING - .625 SHAFT
(Superseded to 916-0115)

$

$

Not available

13

Cub Cadet IH-57842-C1

BELT, CLUTCHING

$

$

Not available

14

Cub Cadet IH-57843-C1

GUIDE ASSY. BELT

$

$

Currently unavailable

Cub Cadet IH-180077

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet IH-57733-C1

PULLEY, TRANS DRIVE

$

$

Not available

16

CHAIN, FINAL REDUCTION

Note: MAKE FROM 10 FT. ROLL IH-475879-R91 AND ONE CONNECTION LINK IH-1306D

$

$

Not available

Cub Cadet IH-1306D

LINK, #41 SINGLE PITCH CONNECTING
(Superseded to 913-0723)

$

$

Not available

17

Cub Cadet IH-549088-R1

GUIDE, BELT - SHORT
(Superseded to 747-3030)

$

$

Not available

18

Cub Cadet IH-57735-C1

GUIDE, BELT - LONG
(Superseded to 747-3030)

$

$

Not available

Cub Cadet IH-611344-R1

WASHER, .344 X .875 X .056 ZND
(Superseded to 736-0195)

$

$

Not available

Cub Cadet IH-369411-R1

SCREW, 5/16-18 X 5/8 W/NYLON PELLET HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-27970-R1

BOLT, 5/16 X 7/8 PHC PRE-TORQ TYPE 8

$

$

Currently unavailable

19

Cub Cadet IH-57831-C1

BOLT, BRAKE

$

$

Currently unavailable

20

Cub Cadet IH-549076-R1

SPRING, COMPRESSION

$

$

Currently unavailable

21

Cub Cadet IH-174887

CLEVIS, 5/16 X 24 C-Z ADJ ROD END

$

$

Currently unavailable

Cub Cadet IH-120393

WASHER, .344 X .688 X .051 ZND
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120368

NUT, 5/16 X 24 ZND HEX.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-20797-R1

PIN, 5/16 X 1-1/4 ROD END

$

$

Currently unavailable

Cub Cadet IH-121222

PIN, 3/32 X 3/4 COT.
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 19

0

22

Cub Cadet IH-549075-R1

SPRING, BRAKE RETURN

$

$

Not available
