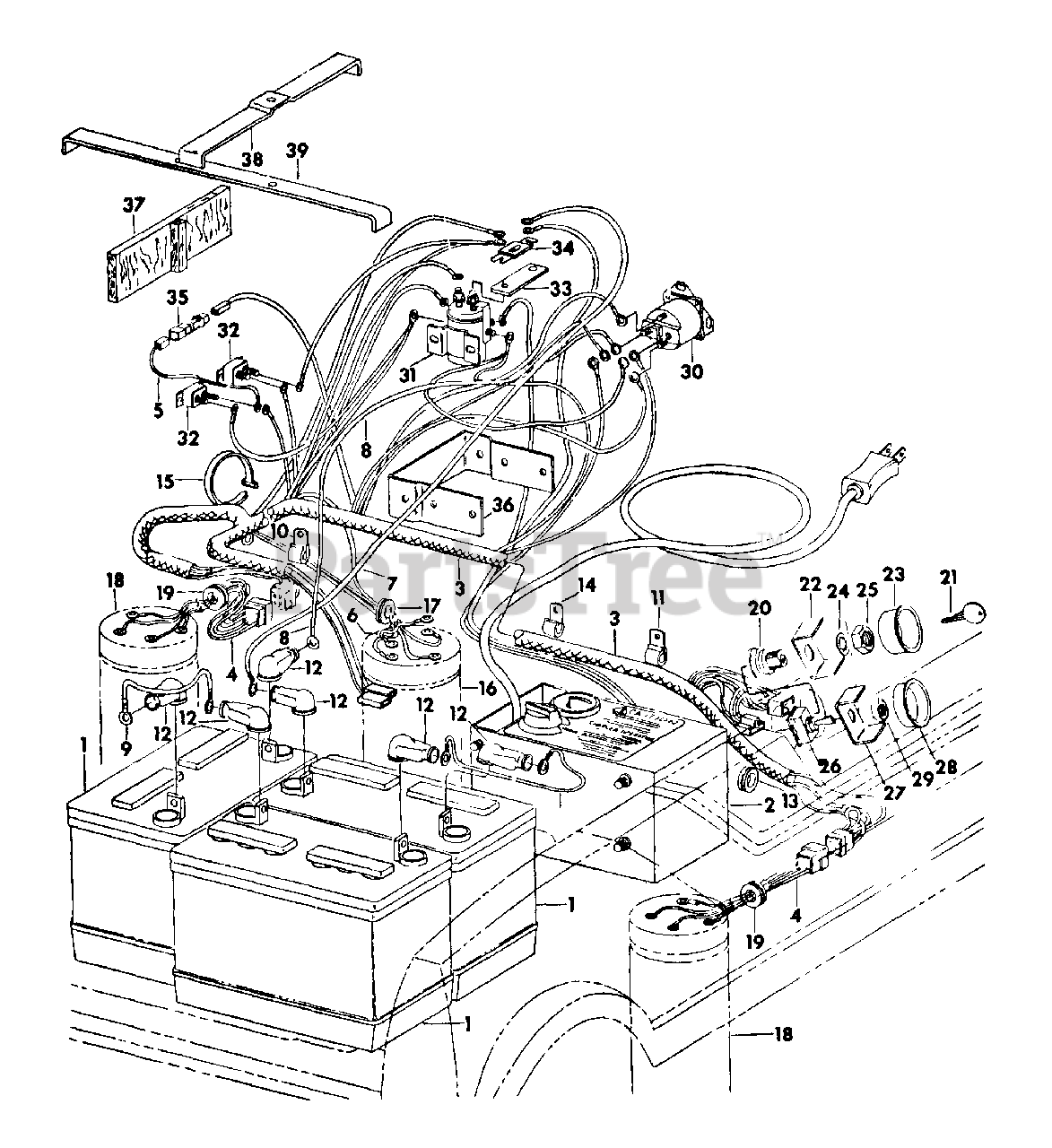

95 (0340020U) - International Harvester Riding Mower (1973 - 1978) Electrical Drive Components Parts Diagram

Riding Mower

Electrical Drive Components Parts Diagram

  • Title

1

Cub Cadet IH-EV27

BATTERY, 12V DEEP CYCLE

$

$

Currently unavailable

2

Cub Cadet IH-61067-C91

CHARGER, 36V DEEP CYCLE -PRESTOLITE 409464-

Note: FOR COMPONENTS SEE "CHARGER" ILLUSTRATION & PARTS LIST.

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180018

SCREW, 1/4-20 X 5/8 ZND HEX-HD CAP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet IH-57590-C1

HARNESS, CABLE ELEC MOWER

$

$

Currently unavailable

4

Cub Cadet IH-57591-C2

CABLE, MOWER MOTOR

$

$

Currently unavailable

5

Cub Cadet IH-57592-C1

CABLE, DIODE TO CIRCUIT BREAKER

$

$

Currently unavailable

6

Cub Cadet IH-57593-C1

CABLE, THERMO SW. TO GROUND TRACTION MOTOR

$

$

Currently unavailable

7

Cub Cadet IH-57594-C1

CABLE, BATTERY TO MAGNETIC SWITCH

$

$

Currently unavailable

8

Cub Cadet IH-57595-C1

CABLE, BATTERY TO GROUND

$

$

Currently unavailable

9

Cub Cadet IH-57596-C1

CABLE, BATTERY TO BATTERY

$

$

Currently unavailable

Cub Cadet IH-16897-R1

BOLT, 5/16 X 3/4 ZND SQ-NK CRG
(Superseded to 710-0451)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-12653-R1

BOLT, 1/4 X 3/4 ZND SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet IH-395228-R1

CLIP, CABLE HARNESS
(Superseded to 726-0175)

$

$

Not available

11

Cub Cadet IH-384557-R1

CLIP, CABLE HARNESS & SINGLE LEADS

$

$

Currently unavailable

12

Cub Cadet IH-130825-C1

BOOT, BATTERY TERMINALS

$

$

Not available

13

Cub Cadet IH-376359-R1

GROMMET, RUBBER

$

$

Not available

14

Cub Cadet IH-370384-R1

CLIP, CABLE HARNESS

$

$

Currently unavailable

15

Cub Cadet IH-702093-C1

CLAMP

$

$

Currently unavailable

Cub Cadet IH-180018

SCREW, 1/4-20 X 5/8 ZND HEX-HD CAP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet IH-57597-C1

MOTOR, TRACTION

Note: FOR COMPONENTS SEE "TRACTION MOTOR" ILLUSTRATION & PARTS LIST.

$

$

Currently unavailable

Cub Cadet IH-9412083

NUT, 5/16-18 CAD HEX. LOCK
(Superseded to 912-3009)

$

$

Not available

Cub Cadet IH-180077

SCREW, 5/16-1B X 3/4 ZND HEX-HD CAP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120622

NUT, 8-32 ZND HEX. MACH SCREW
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 12

0

Cub Cadet IH-138530

WASHER, NO 8 ZND INT-TOOTH LOCK

$

$

Currently unavailable

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120423

WASHER, 1/4 ZND INT-TOOTH LOCK

$

$

Currently unavailable

17

Cub Cadet IH-857736-R1

GROMMET, RUBBER

Note: REPLACES IH-134252

$

$

Currently unavailable

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet IH-57598-C1

MOTOR, BLADE

Note: FOR COMPONENTS SEE "BLADE MOTOR" ILLUSTRATION & PARTS LIST.

$

$

Currently unavailable

Cub Cadet IH-180077

SCREW, 5/16-18 X 3/4 ZND HEX-ND CAP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .051 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-9412083

NUT, 5/16-18 CAD HEX. LOCK
(Superseded to 912-3009)

$

$

Not available

19

Cub Cadet IH-112734

GROMMET, MOWER MOTOR

$

$

Currently unavailable

20

Cub Cadet IH-57599-C1

SWITCH, MOWER KEY START

$

$

Not available

21

Cub Cadet IH-131313-C1

KEY, MOWER KEY START
(Superseded to IH-131313-C2)

$11.99

$

In Stock, only 2 left!

0

22

Cub Cadet IH-491539-R1

RETAINER, IGNITION SWITCH

$

$

Not available

23

Cub Cadet IH-402238-R1

SOCKET, IGNITION SWITCH

$

$

Currently unavailable

24

Cub Cadet IH-375431-R1

WASHER, MAGNETO IGNITION KEY MOUNTING

$11.99

$

In Stock, only 1 left!

0

25

Cub Cadet IH-365502-R1

NUT, MOWER KEY START SWITCH

$10.99

$

Usually ships in 3-6 days

0

26

Cub Cadet IH-57600-C1

SWITCH, MOWER

$

$

Not available

27

Cub Cadet IH-57601-C1

RETAINER, MOWER SWITCH

$

$

Currently unavailable

28

Cub Cadet IH-57602-C1

SOCKET, MOWER SWITCH

$

$

Currently unavailable

29

Cub Cadet IH-57603-C1

NUT, MOWER SWITCH

$

$

Not available

30

Cub Cadet IH-57604-C1

SWITCH, MAGNETIC TRACTION

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120217

WASHER, NO. 10 ZND LOCK
(Superseded to 736-0722)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet IH-120614

NUT, 10-32 ZND HEX
(Superseded to 712-0349)

$4.49

$

In Stock, Qty 5

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

31

Cub Cadet IH-57605-C1

SOLENOID, STARTING SWITCH

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120368

NUT, 5/16-24 ZND HEX
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120217

WASHER, NO. 10 ZND LOCK
(Superseded to 736-0722)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet IH-120614

NUT, 10-32 ZND HEX
(Superseded to 712-0349)

$4.49

$

In Stock, Qty 5

0

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

32

Cub Cadet IH-128359-H1

BREAKER, CIRCUIT

$

$

Currently unavailable

Cub Cadet IH-436754

SCREW, 10-32 X 1 PAN-HD SIT MACH

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER, NO. 10 ZND LOCK
(Superseded to 736-0722)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet IH-120614

NUT, 10-32 ZND HEX
(Superseded to 712-0349)

$4.49

$

In Stock, Qty 5

0

33

Cub Cadet IH-57607-C1

HOLDER, FUSE

$

$

Currently unavailable

34

Cub Cadet IH-57608-C1

FUSE, 100 AMP

$

$

Currently unavailable

Cub Cadet IH-21496-R1

WASHER, .344 X .750 X .105 ZND
(Superseded to 936-3008)

$6.49

$

In Stock, only 1 left!

0

Cub Cadet IH-120368

NUT, 5/16-24 ZND HEX
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180077

SCREW, 1/4-20 X 3/4 ZND HEX-HD CAP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet IH-548239-R2

DIODE ASSEMBLY

$

$

Currently unavailable

36

Cub Cadet IH-57857-C1

BRACKET ASSY, SWITCH MOUNTING

$

$

Currently unavailable

37

Cub Cadet IH-58370-C1

SPACER ASSY, BATTERY

$

$

Currently unavailable

38

Cub Cadet IH-58373-C1

CLAMP, BATTERY

$

$

Currently unavailable

39

Cub Cadet IH-58374-C1

CLAMP, BATTERY LONG

$

$

Currently unavailable

Cub Cadet IH-911248-R1

BOLT, 1/4 X 9 ZND SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-22256-R1

WASHER, 9/32 X 1/2 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-126177

NUT, 1/4-20 ZND WING

$

$

Not available
