95 (0340020U) - International Harvester Riding Mower (1973 - 1978) Mower & Lift Mechanism Parts Diagram

Riding Mower

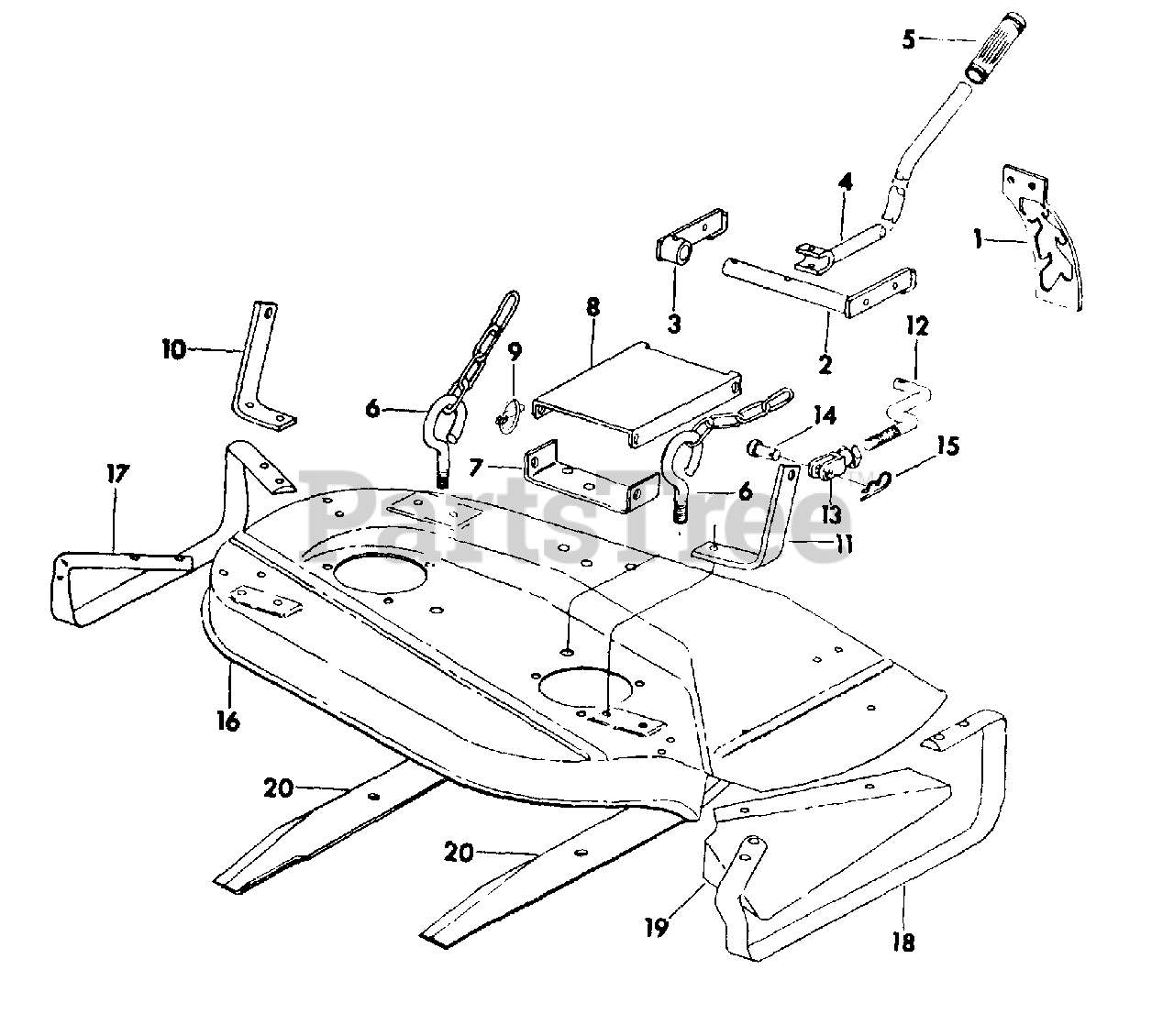

Mower & Lift Mechanism Parts Diagram

  • Title

1

Cub Cadet IH-57740-C1

SECTOR, LIFT HANDLE

$

$

Currently unavailable

Cub Cadet IH-180124

SCREW, 3/8-16 X 1-1/4 ZND HEX-HD CAP
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120394

WASHER, .406 X .812 X .051 ZND
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet IH-57741-C1

SHAFT ASSY, MOWER LIFT

$

$

Currently unavailable

3

Cub Cadet IH-57744-C1

ARM ASSY, MOWER LIFT

$

$

Currently unavailable

Cub Cadet IH-19885-R1

PIN, 1/4 X 1-3/8 MED COILED SPRING
(Superseded to 915-3000)

$

$

Not available

4

Cub Cadet IH-57746-C1

HANDLE ASSY. LIFT

$

$

Currently unavailable

Cub Cadet IH-575442-R1

PIN, 1/4 X 1.625 HEADED

$

$

Currently unavailable

Cub Cadet IH-23505-R1

WASHER, 9/32 X 5/8 X 16 GA ZND

$

$

Currently unavailable

Cub Cadet IH-177923

PIN, 1/8 X 3/4 ZND COT.
(Superseded to 914-0474)

$

$

Not available

5

Cub Cadet IH-57749-C1

GRIP, LIFT HANDLE

$

$

Currently unavailable

6

Cub Cadet IH-57750-C1

CHAIN ASSY, MOWER

$

$

Currently unavailable

Cub Cadet IH-120367

NUT, 1/4-28 ZND HEX.
(Superseded to 912-0138)

$

$

Not available

7

Cub Cadet IH-57753-C1

BRACKET, MOWER FRONT

$

$

Currently unavailable

Cub Cadet IH-180077

SCREW, 5/16-1B X 3/4 ZND HEX-HD CAP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, 344 X .688 X .051 ZND
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet IH-57754-C1

LINK, MOWER FRONT

$

$

Currently unavailable

Cub Cadet IH-27358-R1

PIN, 1/2 X 7 ZND STD-HD
(Superseded to 911-3019)

$29.99

$

In Stock, Qty 5

0

9

Cub Cadet IH-479696-R91

PIN, KLIK
(Superseded to 914-3008)

$

$

Not available

10

Cub Cadet IH-57755-C1

BRACKET, REAR LINK - LH

$

$

Currently unavailable

11

Cub Cadet IH-57756-C1

BRACKET, REAR LINK - RH

$

$

Currently unavailable

Cub Cadet IH-180077

SCREW, 5/16-18 X 3/4 ZN HEX-HD CAP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, .344 X .688 X .051 ZND
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet IH-57757-C1

LINK, LIFT REAR

$

$

Currently unavailable

Cub Cadet IH-124934

NUT, 1/2-20 ZND HEX. JAM
(Superseded to 712-3029)

$6.49

$

In Stock, Qty 8

0

13

Cub Cadet IH-116538

CLEVIS, 1/2 SHORT ADJUSTABLE ROD END

$

$

Not available

14

Cub Cadet IH-138086

PIN, 1/2 X 1-27/64 ROD END

$

$

Currently unavailable

15

Cub Cadet IH-153528-C1

PIN, SPRING
(Superseded to 914-3003)

$4.99

$

In Stock, only 2 left!

0

Cub Cadet IH-120396

WASHER, .531 X 1.06 X .074 ZND
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-18481-R1

PIN, 3/16 X 1 ZND COT

$

$

Currently unavailable

16

Cub Cadet IH-57758-C1

HOUSING W/PRODUCT GRAPHICS, MOWER

$

$

Currently unavailable

17

Cub Cadet IH-549127-R1

RUNNER, LH MOWER

$

$

Currently unavailable

18

Cub Cadet IH-549128-R1

RUNNER, RH MOWER

$

$

Not available

Cub Cadet IH-180077

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, .656 X 1.312 X .150 PHC
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, .344 X .688 X .051 ZND
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet IH-57378-C1

SHIELD, DEFLECTOR

$

$

Not available

20

Cub Cadet IH-57763-C1

BLADE, 32 IN CUTTING

$

$

Not available

Cub Cadet IH-25976-R1

WASHER, .656 X 1.312 X .150 PHC

$

$

Currently unavailable

Cub Cadet IH-124944

NUT, 5/8-18 ZND HEX. JAM
(Superseded to 712-3056)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-57801-C2

PRODUCT GRAPHIC, CAUTION

$

$

Not available
