95 (0340020U) - International Harvester Riding Mower (1973 - 1978) Rear Axle & Differential Parts Diagram

Riding Mower

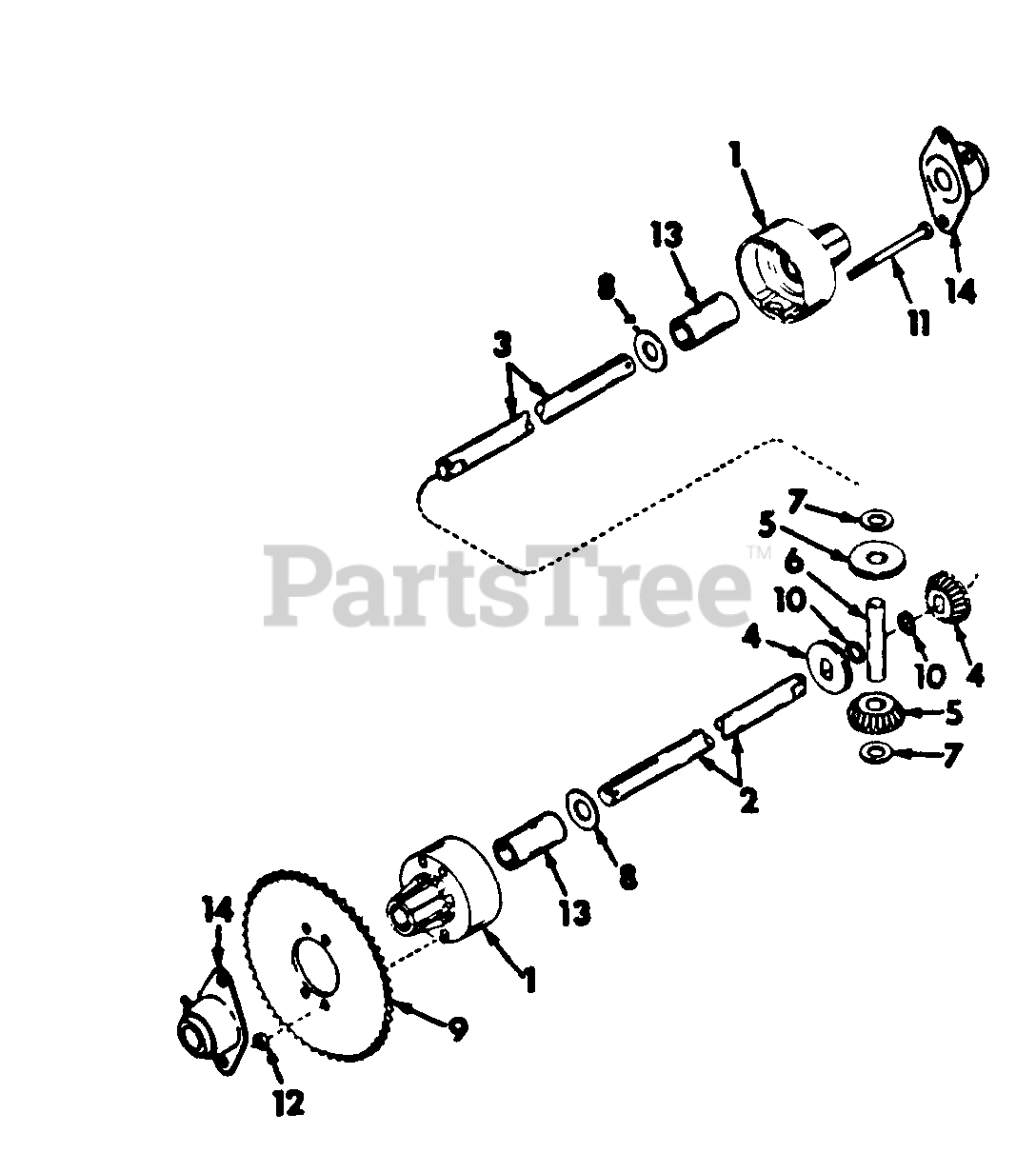

Rear Axle & Differential Parts Diagram

  • Title

Cub Cadet IH-62776-C91

AXLE ASSY, DRIVE

Note: REPLACES IH-57832-C91

$

$

Currently unavailable

1

Cub Cadet IH-62778-C91

HOUSING, DIFFERENTIAL CARRIER SPROCKET SIDE

$

$

Not available

Cub Cadet IH-62779-C91

HOUSING, DIFFERENTIAL CARRIER

$

$

Not available

2

Cub Cadet IH-57833-C1

AXLE, SHORT

$

$

Not available

3

Cub Cadet IH-57834-C1

AXLE, LONG

$

$

Not available

4

Cub Cadet IH-488845-R1

GEAR, BEVEL -16 T

$

$

Not available

5

Cub Cadet IH-488846-R1

GEAR, PINION -16 T
(Superseded to TC-778131)

$39.99

$

In Stock, Qty 6

0

6

Cub Cadet IH-488847-R1

PIN, DRIVE

$

$

Not available

7

Cub Cadet IH-488848-R1

WASHER, THRUST BRG RACE

$

$

Currently unavailable

8

Cub Cadet IH-488849-R1

WASHER

$

$

Not available

9

Cub Cadet IH-488850-R1

SPROCKET, 45 T

$

$

Not available

10

Cub Cadet IH-23090-R1

RING, 689 HVY EXT RET
(Superseded to 716-3001)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .060 C-Z
(Superseded to 936-0275)

$

$

Not available

11

Cub Cadet IH-62781-C1

SCREW, 5/16-18 SPECIAL

Note: REPLACES IH-186271

$

$

Not available

12

Cub Cadet IH-472146-R1

NUT, 5/16-18 LOCK

$

$

Not available

13

Cub Cadet IH-489335-R1

BUSHING

$

$

Not available

14

Cub Cadet IH-541438-R1

BEARING, REAR AXLE
(Superseded to IH-541438-R2)

$

$

Not available

Cub Cadet IH-541313-R1

BOLT, REAR AXLE MOUNTING

$

$

Not available

Cub Cadet IH-180120

SCREW, 3/8-16 X 3/4 ZND HEX-HD CAP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 17

0

Cub Cadet IH-120382

WASHER, 3/8 ZND REG LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0
