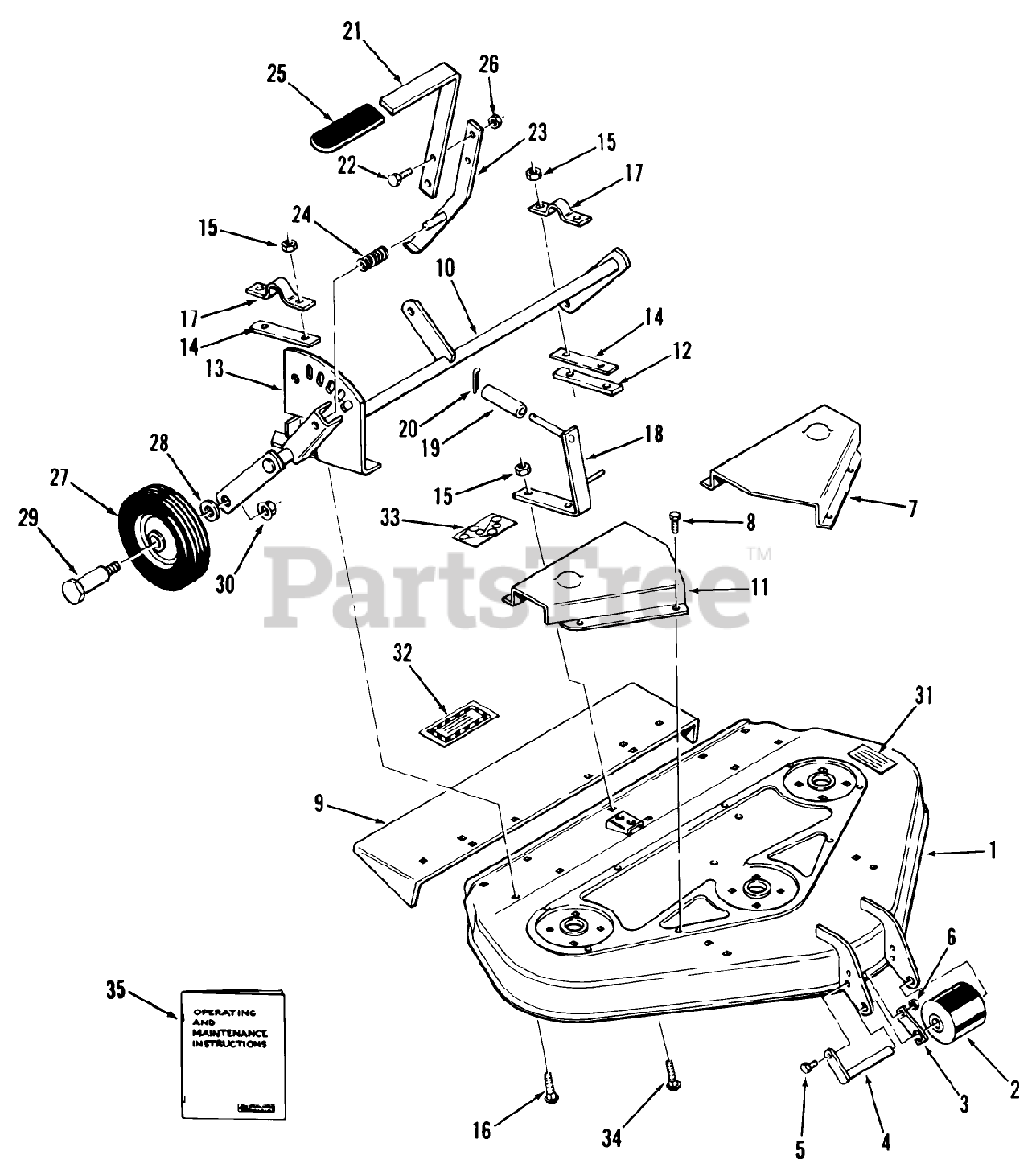

95-36XR00 - Toro 36" Rear-Discharge Mower Deck (1979) Rear And Side Discharge Mowers-36 In. (92 Cm) 85-36xr01, 95-36xr00, 85-36xs01, 95-36xs00 Parts Diagram

36" Rear-Discharge Mower Deck

Rear And Side Discharge Mowers-36 In. (92 Cm) 85-36xr01, 95-36xr00, 85-36xs01, 95-36xs00 Parts Diagram

  • Title

1

Toro 106402

DISCONTINUED

$

$

Not available

Toro 106542

DISCONTINUED

$

$

Not available

2

Toro 5240

See Supercession: 94-1599
(Superseded to 94-1599)

$14.99

$

In Stock, only 2 left!

0

3

Toro 102773

DISCONTINUED

$

$

Not available

4

Toro 102770

See Supercession: 110847
(Superseded to 110847)

$30.99

$

In Stock, Qty 5

0

5

Toro 908002

See Supercession: 321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

6

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

7

Toro 106479

DISCONTINUED

$

$

Not available

8

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

9

Toro 106480

See Supercession: 106480-01
(Superseded to 106480-01)

$

$

Not available

10

Toro 106403

See Supercession: 109374
(Superseded to 109374)

$382.99

$

Usually ships in 3-6 days

0

11

Toro 106478

DISCONTINUED

$

$

Not available

12

Toro 106377

See Supercession: 110840-03
(Superseded to 110840-03)

$23.99

$

In Stock, only 1 left!

0

13

Toro 106392

See Supercession: 106392-01
(Superseded to 106392-01)

$36.99

$

In Stock, only 3 left!

0

14

Toro 106468

See Supercession: 110842
(Superseded to 110842)

$

$

Not available

15

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

16

Toro 900063

See Supercession: 3231-2
(Superseded to 323-12)

$2.99

$

In Stock, Qty 7

0

17

Toro 106378

DISCONTINUED

$

$

Not available

18

Toro 106476

DISCONTINUED

$

$

Not available

19

Toro 106383

DISCONTINUED

$

$

Not available

20

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

21

Toro 106380

HANDLE-EXTENSION *R

$

$

Not available

22

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

23

Toro 106483

DISCONTINUED

$

$

Not available

24

Toro 101853

SPRING-COMPRESSION

$32.99

$

In Stock, only 3 left!

0

25

Toro 102597

GRIP

$2.49

$

In Stock, only 2 left!

0

26

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

27

Toro 106588

See Supercession: 110506
(Superseded to 110506)

$39.99

$

In Stock, Qty 8

0

28

Toro 920242

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

29

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 13

0

30

Toro 102809

See Supercession: 32128-19
(Superseded to 32128-19)

$1.99

$

In Stock, Qty 5

0

31

Toro 105206

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 10

0

32

Toro 106746

See Supercession: 66-1340
(Superseded to 66-1340)

$11.99

$

In Stock, Qty 6

0

33

Toro 106749

DECAL-HEIGHT BELT

$

$

Not available

34

Toro 900062

See Supercession: 3231-1
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

35

Toro 810011R1

OperatingandMaintenanceInstructions

$

$

Currently unavailable
