95-4090 - Toro 48" Blade Retrofit Kit FRAME ASSEMBLY Parts Diagram

48" Blade Retrofit Kit

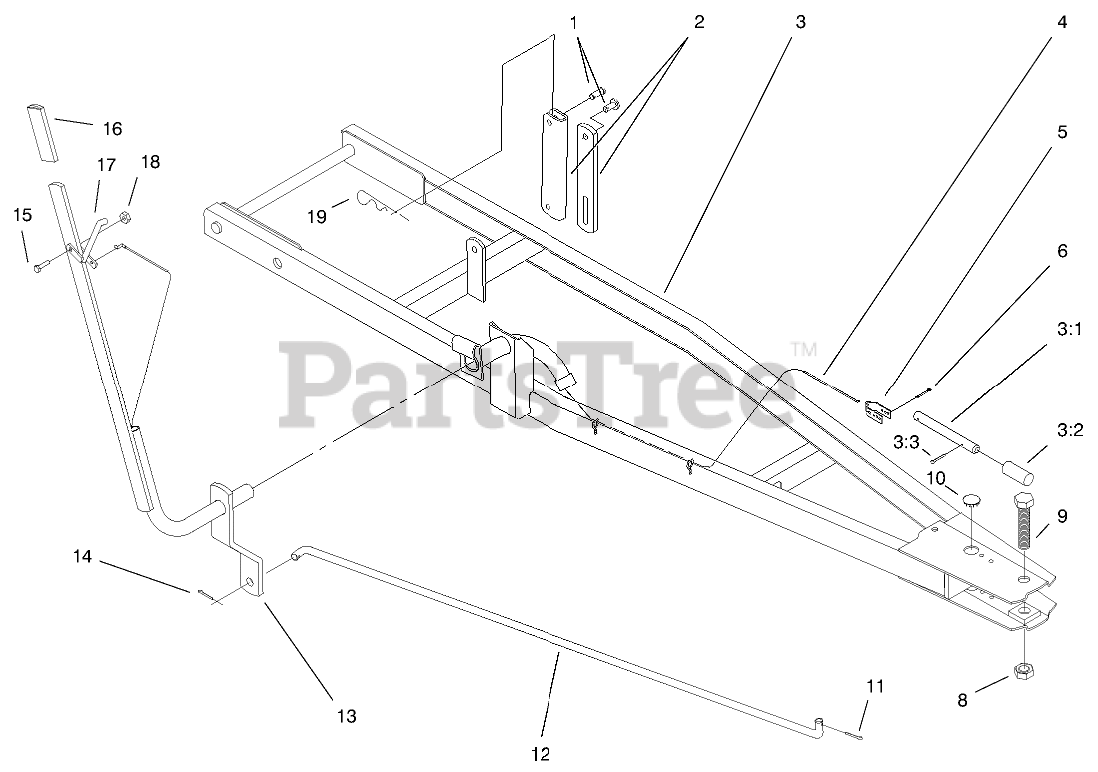

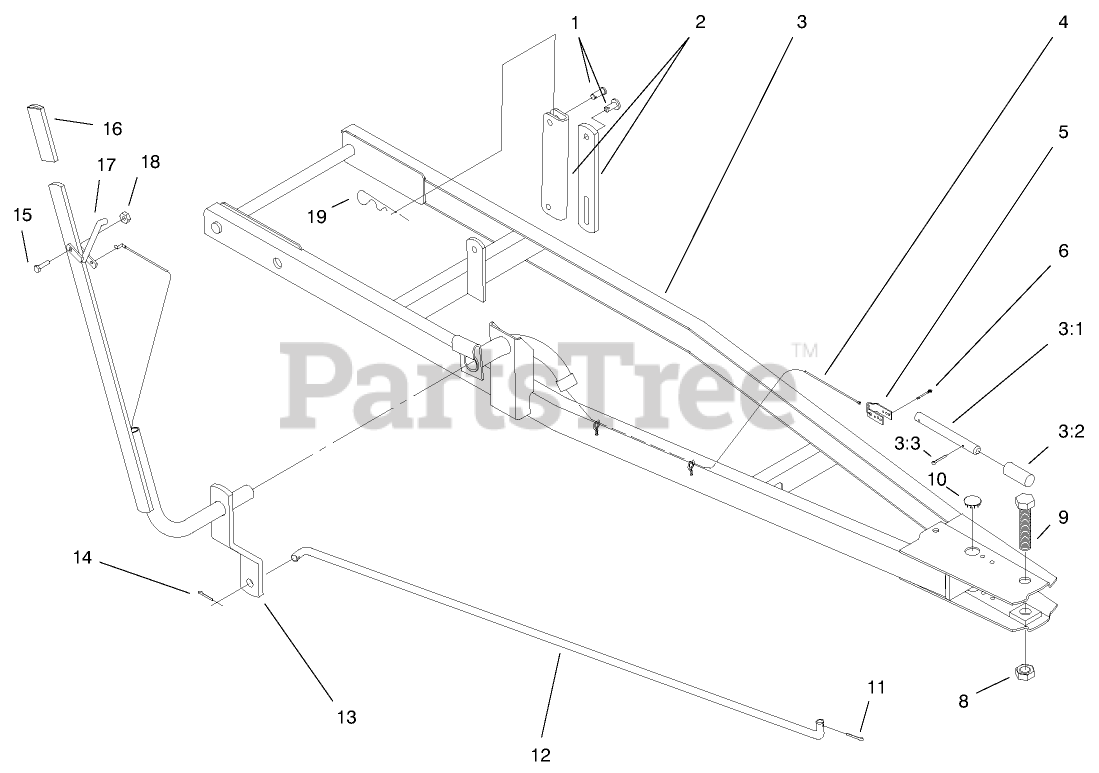

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 2 left!

0

1

Toro 98-5055

PIN-WELD

$12.99

$

Usually ships in 3-6 days

0

2

Toro 94-7793-03

LINK - LIFT

$

$

Not available

2

Toro 94-7987-03

LINK - LIFT

$

$

Not available

3

Toro 94-7792-01

WA - FRAME PAINT RED

$

$

Not available

3:1

Toro 88-6520

PIN-INDEX

$111.99

$

Usually ships in 3-6 days

0

3:2

Toro 2354

SPRING-COMPRESSION

$21.99

$

Usually ships in 3-6 days

0

3:3

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

4

Toro 94-7788

CABLE - INDEXING

$68.99

$

Usually ships in 3-6 days

0

5

Toro 94-7782

BRACKET - CABLE END

$

$

Not available

6

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

8

Toro 3296-15

NUT-LOCK, NI

$2.99

$

In Stock, Qty 7

0

9

Toro 3216-7

SCREW-HH

$22.99

$

Usually ships in 3-6 days

0

10

Toro 4944

PLUG

$9.49

$

Usually ships in 3-6 days

0

11

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

12

Toro 94-7787

ROD - BLADE CONTROL

$

$

Not available

13

Toro 98-5053-01

Lever Indexing
(Superseded to 98-5053-03)

$356.99

$

Usually ships in 3-6 days

0

14

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

15

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 10

0

16

Toro 5359

GRIP

$11.99

$

Usually ships in 3-6 days

0

17

Toro 98-1743

LEVER

$

$

Not available

18

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

19

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0
