950-00 - Paramount Edger, Electric EDGER ASSEMBLY Parts Diagram

Edger, Electric

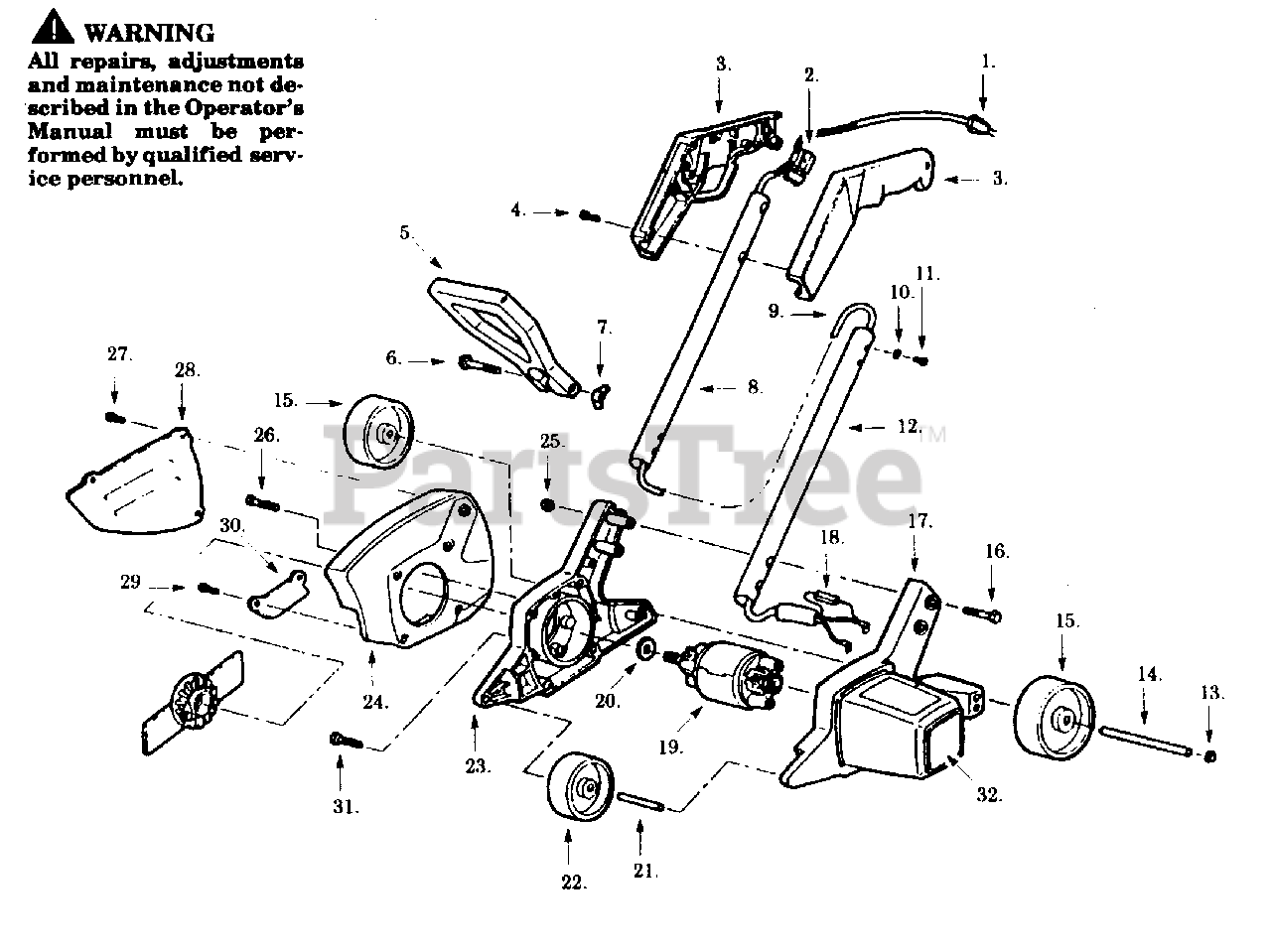

EDGER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534234500

Power Cord

$

$

Not available

2

Poulan 534193004

Trigger Switch

$

$

Not available

3

Poulan 534356772

Handle Set

$

$

Not available

4

Poulan 534193700

Screw

$

$

Not available

5

Poulan 534156405

Assist Handle

$

$

Not available

6

Poulan 534218105

Bolt

$

$

Not available

7

Poulan 534437000

Wingnut

$

$

Not available

8

Poulan 534222506

Upper Handle Tube

$

$

Not available

9

Poulan 534361500

Harness

$

$

Not available

10

Poulan 534713000

Lockwasher

$

$

Not available

11

Poulan 534970001

Screw

$

$

Not available

12

Poulan 534223201

Lower Handle Tube

$

$

Not available

13

Poulan 534121000

Push Nut

$7.99

$

Usually ships in 3-10 days

0

14

Poulan 534781011

Axle

$

$

Not available

15

Poulan 534240003

Wheel

$

$

Not available

16

Poulan 534174501

Screw

$

$

Not available

17

Poulan 534323302

Motor Cover

$

$

Not available

18

Poulan 534278000

Rectifier Ass'y.

$

$

Not available

19

Poulan 534225022

Motor

$

$

Not available

20

Poulan 534136100

Washer

$

$

Not available

21

Poulan 534740002

Axle

$

$

Not available

22

Poulan 534730001

Wheel

$

$

Not available

23

Poulan 534323202

Frame

$

$

Not available

24

Poulan 534346702

Guard Housing

$

$

Not available

25

Poulan 534235901

Locknut
(Superseded to 530403094)

$

$

Not available

26

Poulan 534222401

Screw

$

$

Not available

27

Poulan 534193800

Screw

$

$

Not available

28

Poulan 534323405

Side Guard

$

$

Not available

29

Poulan 534222403

Screw

$

$

Not available

30

Poulan 534323500

Edge Guide

$

$

Not available

31

Poulan 534136401

Screw

$

$

Not available

32

Poulan 534392600

Housing Label

$

$

Not available

33

Poulan 534883570

Operator Manual

Note: Not Shown.

$

$

Not available
