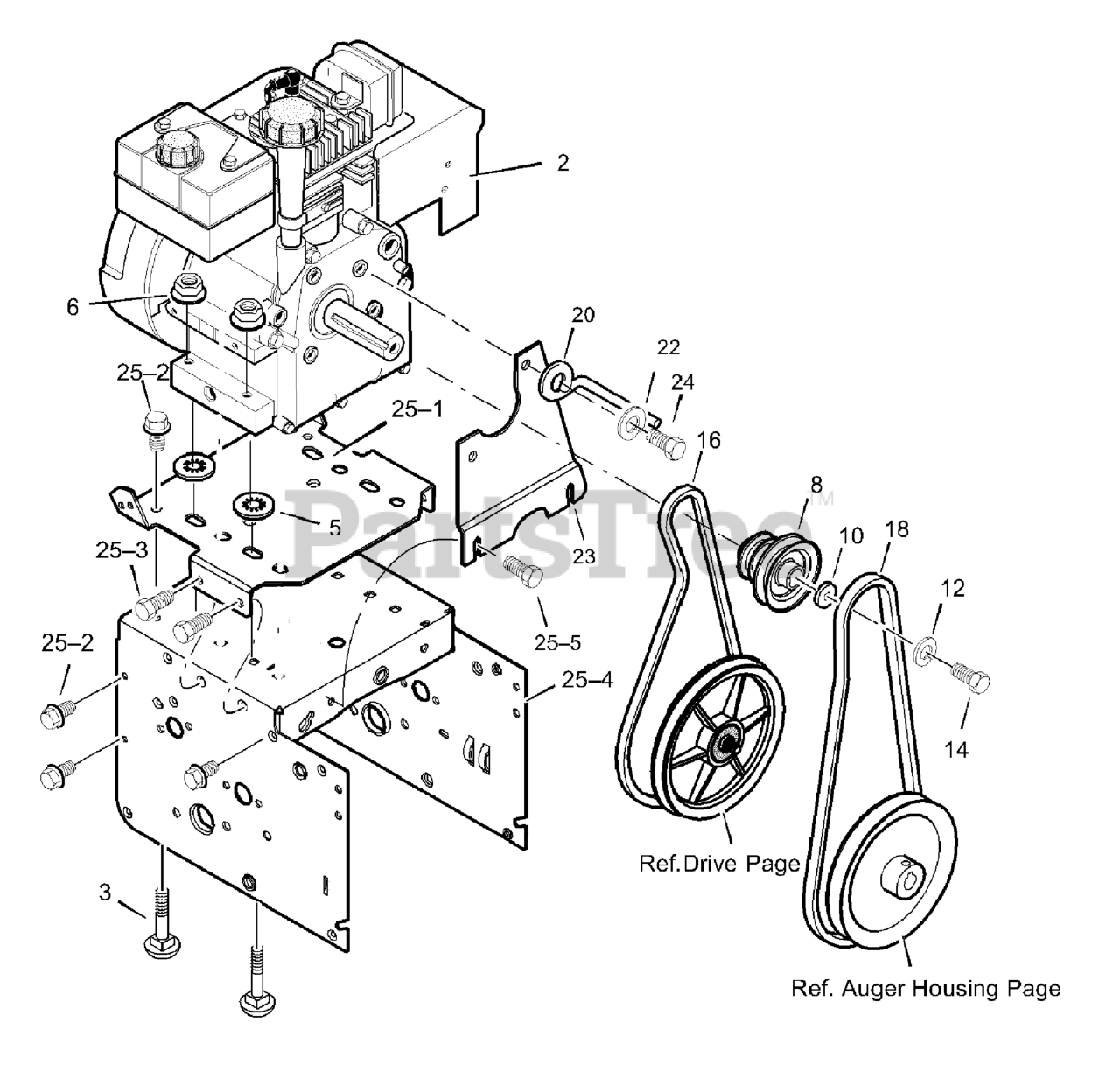

950.521212 (C950-52121-2) - Craftsman 29" Snow Thrower (2002) Engine Parts Diagram

29" Snow Thrower

Engine Parts Diagram

  • Title

2

ENGINE, Tecumseh *

Note: (Model: 143.031103)

$

$

Not available

3

Murray 002X97MA

BOLT, CARRIAGE 5/16-18
(Superseded to 704210)

$4.99

$

In Stock, only 2 left!

0

5

Murray 028X76MA

RETAINER, PUSH

$4.49

$

Usually ships in 2-12 days

0

6

Murray 710026

NUT 5/16-18

$

$

Not available

8

Murray 1501109MA

PULLEY, ENGINE

$41.99

$

In Stock, Qty 6

0

10

Murray 710247

WASHER

$8.49

$

Usually ships in 2-12 days

0

12

Murray 71063

WASHER, HVSPTLK .38ID

$3.99

$

Usually ships in 2-12 days

0

14

Murray 71015

SCREW, 3/8-24 x 1.00

$

$

Not available

16

Murray 579932MA

BELT, V 3L 33.16LG
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

18

Murray 585416MA

BELT, V 4L 38.1

$22.99

$

In Stock, Qty 12

0

20

Murray 1501201MA

GUIDE, ROD BELT
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 6

0

22

Murray 071060

WASHER, SPTLK .31X.58X.08

$3.49

$

In Stock, Qty 20+

0

23

Murray 1501482MA

PLATE, ANTI VIBRATION

$21.99

$

Usually ships in 2-12 days

0

24

Murray 910828MA

SCREW, 5/16-24 x 1.00
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray 1501062E549

PLATE, ENGINE MOUNT

$6.49

$

Usually ships in 2-12 days

0

25-2

Murray 310169MA

SCREW 1/4-20 X .63
(Superseded to 703054)

$4.49

$

Usually ships in 2-12 days

0

25-3

Murray 780055MA

SCREW 5/16-18 X .50
(Superseded to 703985)

$4.49

$

In Stock, Qty 10

0

25-4

Murray 1501049E549

FRAME, MOTOR BOX

$

$

Currently unavailable

25-5

Murray 26X263MA

SCREW

$4.99

$

In Stock, only 1 left!

0

--

Murray F-021058L

OWNER'S MANUAL

$

$

Currently unavailable
