950.527290 (1695558) - Craftsman 24" Snow Thrower (2008) Light Kit Parts Diagram

24" Snow Thrower

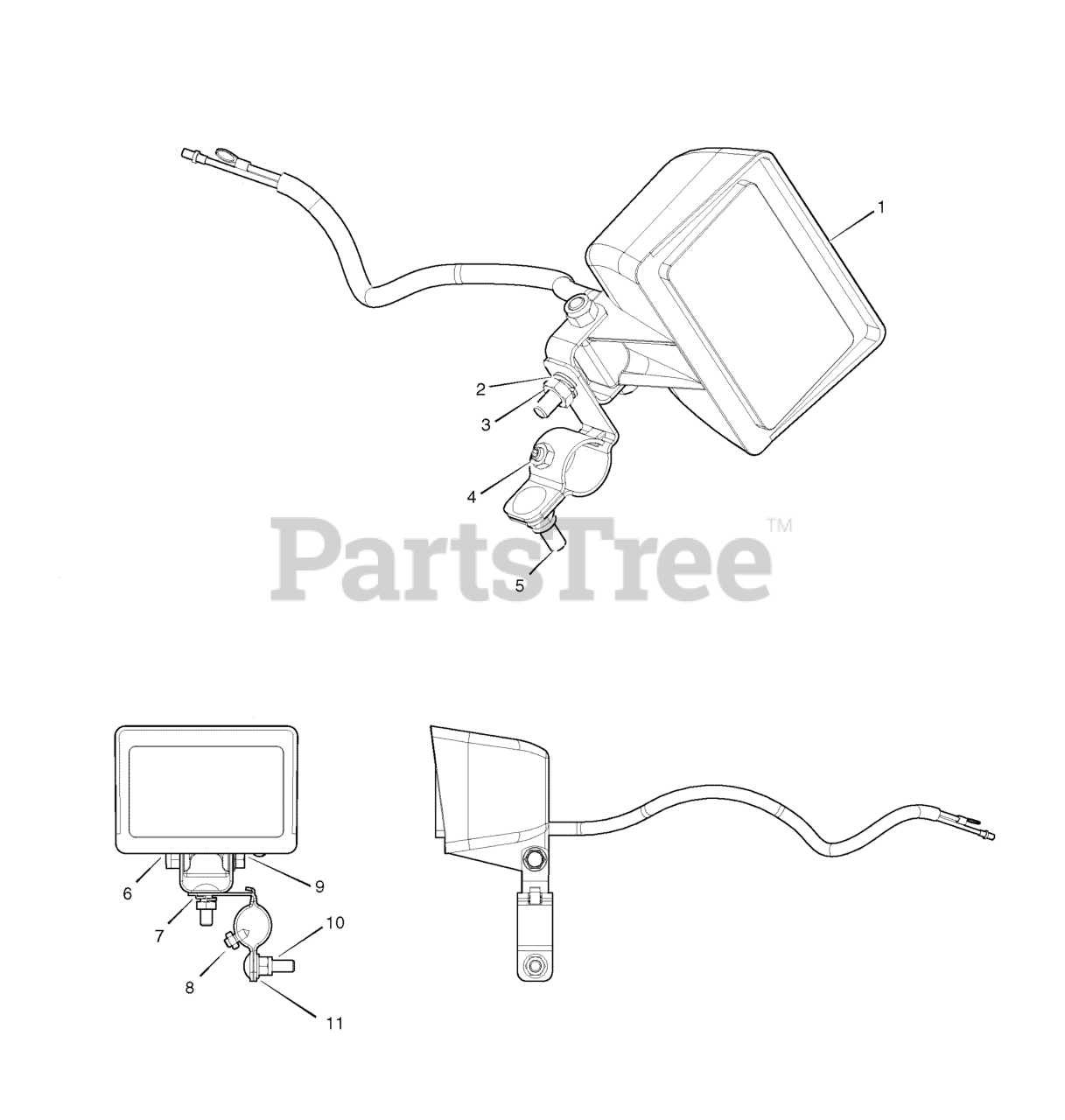

Light Kit Parts Diagram

  • Title

1

LIGHT

$

$

Not available

2

WASHER, SPLITLOCK 5/16

$

$

Not available

3

NUT, 5/16-18

$

$

Not available

4

NUT, 1/4-4-20

$

$

Not available

5

BOLT, CARRIAGE, 5/16-18 x 1.25

$

$

Not available

6

NUT, NYLOCK 5/16-18

$

$

Not available

7

BOLT, CARRIAGE 5/16-18 x 1.00

$

$

Not available

8

SCREW, SOCKET HEAD 1/4-20 x .075

$

$

Not available

9

BOLT, HEX FLANGE 5/16-18 x 2.00

$

$

Not available

10

NUT, NYLOCK 5/16-18

$

$

Not available

11

WASHER, FLAT 5/16

$

$

Not available

--

Murray 1501730MA

COMPLETE LIGHT ASSEMBLY

Note: (Includes Ref. No's. 1-11)

$187.99

$

Usually ships in 2-12 days
