950.527300 (1695555) - Craftsman 27" Snow Thrower (2008) Engine Parts Diagram

27" Snow Thrower

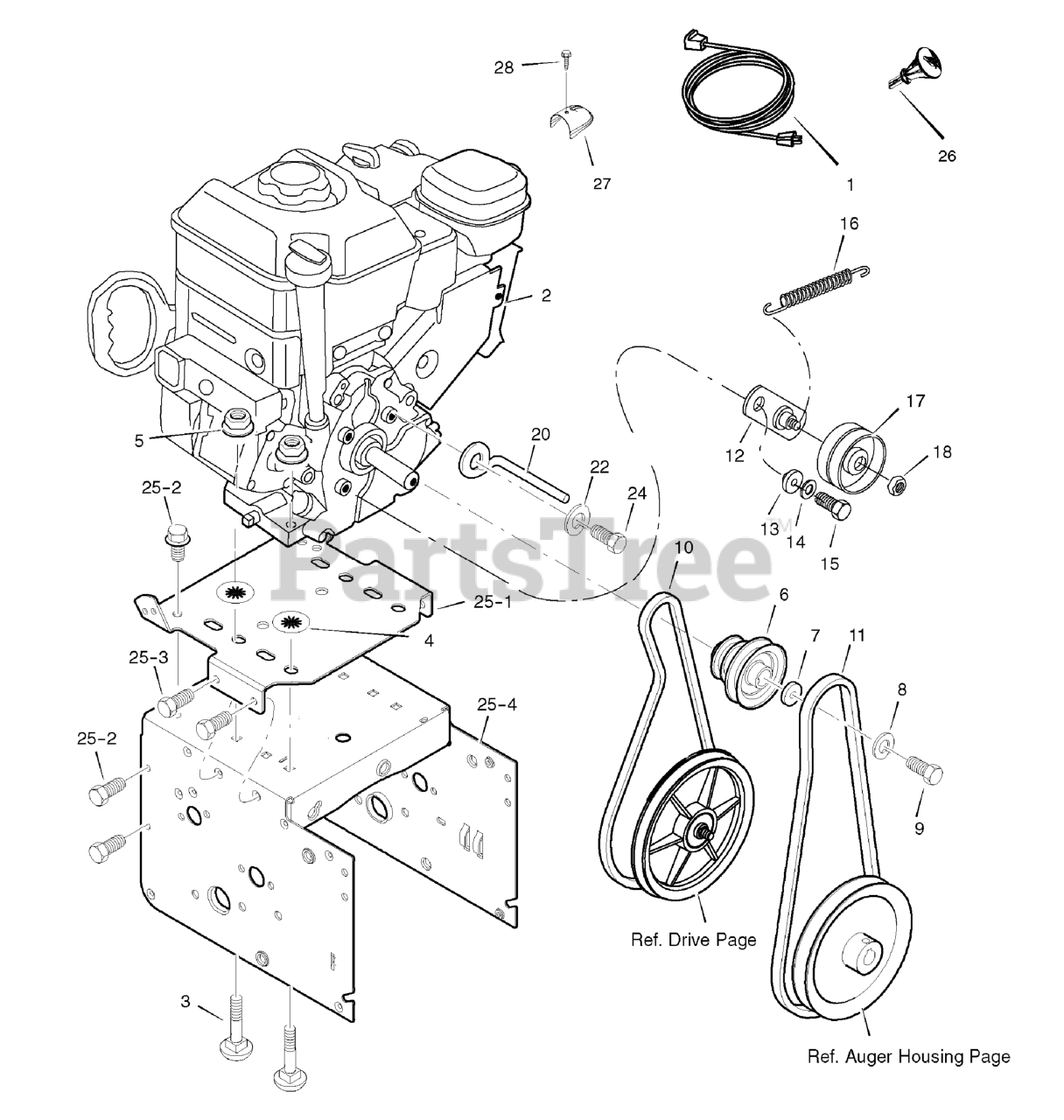

Engine Parts Diagram

  • Title

1

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 3 left!

0

2

Murray 20M1140136E1

ENGINE

$

$

Currently unavailable

3

Murray 002X97MA

BOLT, CARRIAGE 5/16-18
(Superseded to 704210)

$4.99

$

In Stock, only 2 left!

0

4

Murray 028X76MA

RETAINER, PUSH

$4.49

$

In Stock, only 1 left!

0

5

Murray 710026MA

NUT 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Murray 1501109MA

PULLEY, ENGINE

$41.99

$

In Stock, Qty 6

0

7

Murray 17X170MA

WASHER

$

$

Not available

8

Murray 71063MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

9

Murray 001X20MA

BOLT, .37-24 x 1.00

$4.49

$

In Stock, only 4 left!

0

10

Murray 1733324SM

BELT, V 3L

$19.99

$

In Stock, Qty 20+

0

11

Murray 585416MA

BELT, V 4L

$22.99

$

In Stock, Qty 12

0

12

Murray 1501112YZMA

BRACKET ASSEMBLY, IDLER
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

13

Murray 1501065MA

BUSHING, IDLER BRACKET

$5.49

$

In Stock, Qty 6

0

14

Murray 71060MA

WASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Murray 710097MA

SCREW 5/16-24 X 0.75

$4.49

$

Usually ships in 2-12 days

0

16

Murray 53704MA

SPRING

$8.49

$

In Stock, only 4 left!

0

17

Murray 1502120MA

PULLEY, IDLER

$21.99

$

In Stock, only 1 left!

0

18

Murray 590MA

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

20

Murray 1501201MA

GUIDE, ROD BELT
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 6

0

22

Murray 71060MA

WASHER, SPTLK .31 X .58 X .08
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Murray 710097MA

SCREW, 5/16-24 x 0.75

$4.49

$

Usually ships in 2-12 days

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray 1740574KMA

PLATE, ENGINE MOUNT
(Superseded to 1740574AYP)

$25.99

$

Usually ships in 2-12 days

0

25-2

Murray 310169MA

SCREW 1/4-20 X .63
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

25-3

Murray 25X020MA

SCREW 5/16-18 X .50

$4.99

$

In Stock, Qty 6

0

25-4

Murray 1740571KYP

FRAME, MOTOR BOX

$112.99

$

Usually ships in 2-12 days

0

26

Murray 794696

KEY, IGNITION

$7.49

$

In Stock, Qty 7

0

27

Murray 794213

DEFLECTOR, MUFFLER

$15.99

$

In Stock, only 1 left!

0

28

Murray 699479

SCREW

$3.99

$

Usually ships in 2-12 days

0
