950.609280 (7800538) - Craftsman ZTS6000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton (2009) Engine Group - 26HP Briggs & Stratton (7501564) Parts Diagram

ZTS6000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton

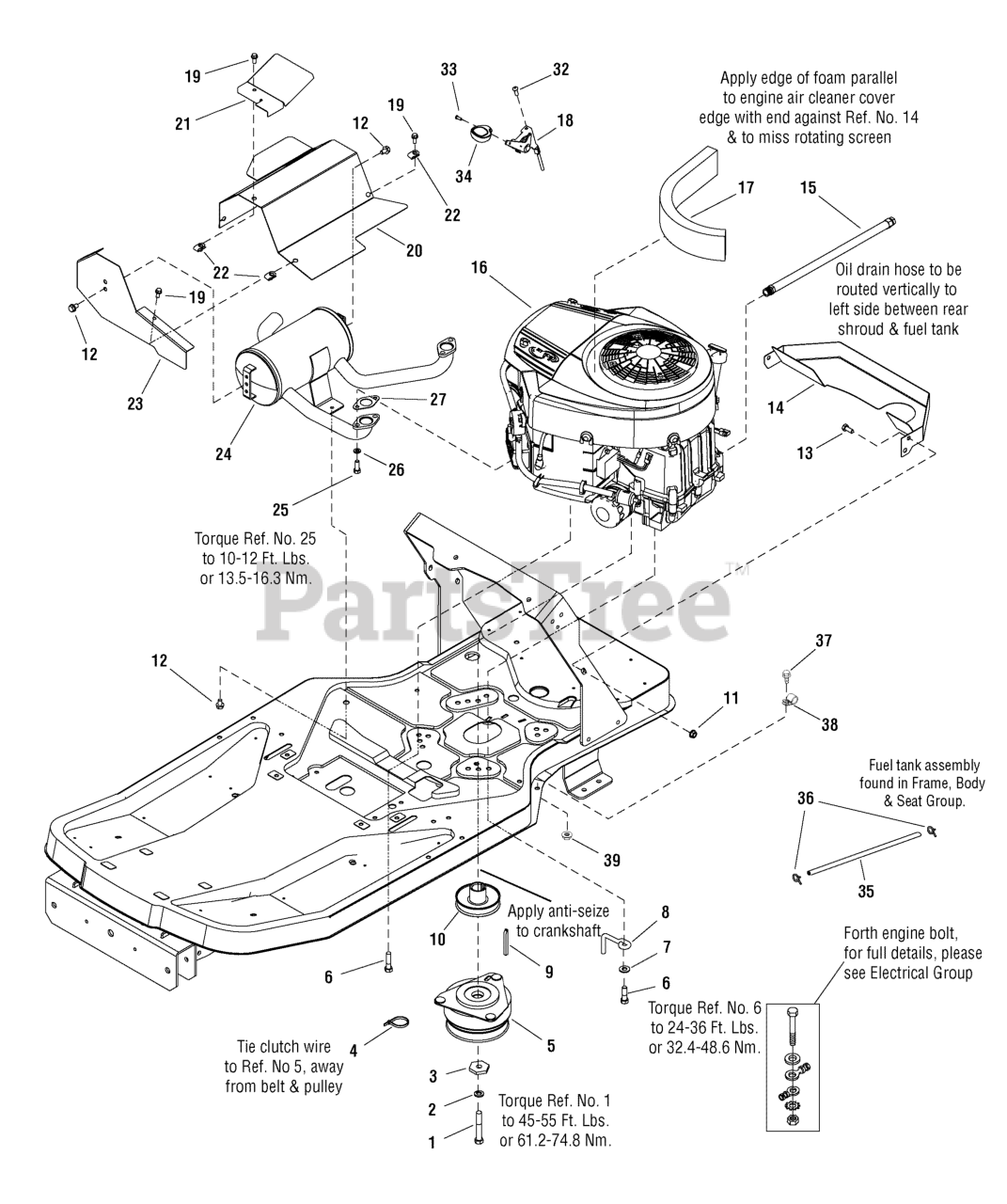

Engine Group - 26HP Briggs & Stratton (7501564) Parts Diagram

  • Title

1

Murray 7027266SM

CAPSCREW, Hex Head, 7/16-20 x 2-3/4, G5

$7.49

$

Usually ships in 2-12 days

0

2

Murray 1918199SM

LOCKWASHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

3

Murray 1708264SM

WASHER, Hex, 7/16

$8.99

$

In Stock, only 2 left!

0

4

Murray 2832747SM

TIE, Self-Locking, 3.62"

$3.99

$

Usually ships in 2-12 days

0

5

Murray 1686880SM

CLUTCH KIT, Electric Ogura
(Superseded to 1687746YP)

$398.99

$

In Stock, only 2 left!

0

6

Murray 2828635SM

SCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

7

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Murray 7101717SM

RETAINER, Clutch

$

$

Not available

9

Murray 2154096SM

KEY

$7.49

$

In Stock, Qty 12

0

10

Murray 7101716SM

PULLEY ASSEMBLY, Engine

$53.99

$

In Stock, only 2 left!

0

11

Murray 1931277SM

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

12

Murray 1924856SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 18

0

13

Murray 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

14

Murray 1733414ASM

AIR DUCT, Inlet

$74.99

$

Usually ships in 2-12 days

0

15

Murray 1726498SM

HOSE, Oil Drain, 16.5"

$28.99

$

Usually ships in 2-12 days

0

16

Murray 4458770139B1

ENGINE, 26HP B&S Platinum Twin

Note: (Model - 445877, Type - 0139, Trim - B1)

$

$

Currently unavailable

17

Murray 1734189SM

SEAL, Foam Air Inlet

$21.99

$

Usually ships in 2-12 days

0

18

Murray 7103123YP

THROTTLE ASSEMBLY

$45.99

$

Usually ships in 2-12 days

0

19

Murray 1960295SM

SCREW, Hex Whiz Lock Flange, 1/4-20 x 5/8

$4.49

$

In Stock, only 2 left!

0

20

Murray 1734246ASM

HEAT SHIELD, Muffler Top

$

$

Not available

21

Murray 1728017SM

HEAT SHIELD, Throttle

$8.49

$

Usually ships in 2-12 days

0

22

Murray 1960368SM

NUT, Speed, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

23

Murray 1727939ASM

HEAT SHIELD, Muffler Side

$31.99

$

Usually ships in 2-12 days

0

24

Murray 1734061SM

MUFFLER, 24HP V-Twin ELS

$393.99

$

In Stock, only 1 left!

0

25

Murray 1936228SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G8

$4.49

$

In Stock, only 2 left!

0

26

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

27

Murray 1731214SM

GASKET, Exhaust
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

32

Murray 7090999SM

SCREW, Taptite Pan Head Torx, 1/4-20 x 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

33

Murray 7091195SM

SCREW, Taptite Pan Head Combo, #10-16 x 3/4

$4.49

$

In Stock, Qty 11

0

34

Murray 7100529SM

KNOB, Throttle
(Superseded to 1725337SM)

$13.99

$

In Stock, only 2 left!

0

35

Murray 1734995SM

HOSE, Fuel, 19.5"

Note: (See Frame, Body & Seat Group for fuel tank assembly.)

$12.99

$

Usually ships in 2-12 days

0

36

Murray 7029900SM

CLAMP, Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 12

0

37

Murray 1930591SM

CAPSCREW, Hex Head 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, only 4 left!

0

38

Murray 7900020SM

CLIP, Harness

$4.49

$

Usually ships in 2-12 days

0

39

Murray 1931277SM

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0
