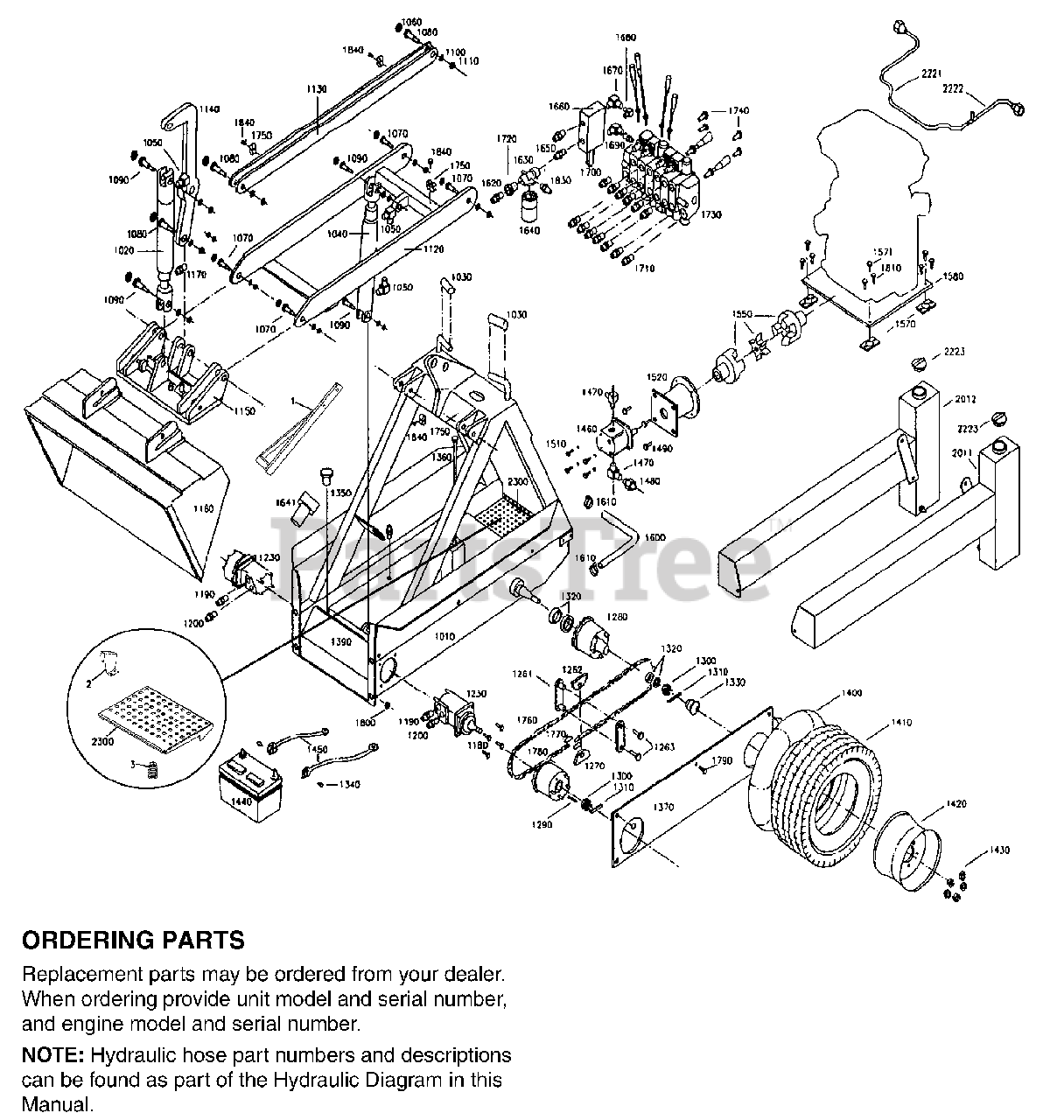

950001 (200) - Gravely Skidster without Trencher Valve, 20hp Honda (SN: 000101 & Above) Service Parts Parts Diagram

Skidster without Trencher Valve, 20hp Honda

Service Parts Parts Diagram

  • Title

Gravely 05031600

Air Filter (Honda)

Note: Engine Service Part; For Models 950001 S/N 000101 & up, 950003 S/N 000101 - 000930

$

$

Not available

Gravely 05031700

Air Pre Cleaner (Honda)

Note: Engine Service Part; For Models 950001 S/N 000101 & up, 950003 S/N 000101 - 000930

$

$

Not available

Gravely 05031800

Engine Oil Filter (Honda)

Note: Engine Service Part; For Models 950001 S/N 000101 & up, 950003 S/N 000101 - 000930

$

$

Not available

Gravely 05032000

Spark Plugs

Note: Engine Service Part; For Models 950001 S/N 000101 & up, 950003 S/N 000101 - 000930

$

$

Not available

Gravely 05047900

Air Cleaner

Note: Engine Service Part; For Model 950003 S/N 000931 - 000974

$

$

Not available

Gravely 05048000

Air Pre Cleaner

Note: Engine Service Part; For Model 950003 S/N 000931 - 000974

$

$

Not available

Gravely 05031800

Engine Oil Filter

Note: Engine Service Part; For Model 950003 S/N 000931 - 000974

$

$

Not available

Gravely 05048100

Spark Plugs

Note: Engine Service Part; For Model 950003 S/N 000931 - 000974

$

$

Not available

Gravely 05048200

Fuel Filter

Note: Engine Service Part; For Model 950003 S/N 000931 - 000974

$

$

Not available

Gravely 05048300

Clip, Fuel Filter

Note: Engine Service Part; For Model 950003 S/N 000931 - 000974

$

$

Not available

1

Gravely 05045151

Bracket, Cylinder Lock
(Superseded to 05045100)

$

$

Not available

2

Gravely 05041051

Bracket, Hydraulic Stop

$

$

Not available

3

Gravely 08336200

Spring, Compression

$

$

Not available

1010

Gravely 05032600

Chassis

$

$

Not available

1020

Gravely 05032700

Crowd Cylinder

$

$

Not available

1030

Gravely 07531100

Handle Grips

$

$

Not available

1040

Gravely 05032800

Lift Cylinder

$

$

Not available

1050

Gravely 07054500

Ram Elbow
(Superseded to 07051200)

$

$

Not available

1060

Gravely 07054600

Nipple

$

$

Not available

1070

Gravely 05038300

Pin "A"

$

$

Not available

1080

Gravely 05038400

Pin "B"

$

$

Not available

1090

Gravely 05038500

Pin "C"

$

$

Not available

1100

Gravely 06446200

Pin Washer

$

$

Not available

1110

Gravely 06541400

Pin Nut

$

$

Not available

1120

Gravely 05032900

Arm Assembly

$

$

Not available

1130

Gravely 05033000

Leveller Arm

$

$

Not available

1140

Gravely 05033100

Tilt Arm

$

$

Not available

1150

Gravely 05033200

Attachment Plate

$

$

Not available

1160

Gravely 05033300

Bucket

$

$

Not available

1170

Gravely 07054700

Cylinder Nipple

$

$

Not available

1180

Gravely 05972900

Bolt Motor

$

$

Not available

1190

Gravely 07054800

Motor Nipple

$

$

Not available

1200

Gravely 07054900

Motor Nipple

$

$

Not available

1210

Gravely 07055000

Case Drain-Honda Engine

$

$

Not available

1220

Gravely 07055100

Case Fitting-Honda Engine

$

$

Not available

1230

Gravely 05033400

Motor

$

$

Not available

1261

Gravely 05033500

Chain Tensioner Bracket

$

$

Not available

1262

Gravely 05033600

Chain Tensioner Guide

$

$

Not available

1263

Gravely 05973000

Bolt

$

$

Not available

1270

Gravely 05033700

Drive Hub

$

$

Not available

1280

Gravely 05033800

Rear Idler Hub

$

$

Not available

1290

Gravely 06610600

Drive Key

$

$

Not available

1300

Gravely 06541500

Lock Nut
(Superseded to 06538700)

$5.99

$

Usually ships in 4-12 days

0

1310

Gravely 06714400

Split Pin
(Superseded to 06713800)

$3.99

$

In Stock, Qty 5

0

1320

Gravely 05033900

Wheel Bearing Set

$

$

Not available

1330

Gravely 09079700

Hub Cap

$

$

Not available

1340

Gravely 05973100

Battery Lead Bolts
(Superseded to 05974900)

$

$

Not available

1350

Gravely 07055200

Drain Plug

$

$

Not available

1360

Gravely 05034000

Dip Stick

$

$

Not available

1370

Gravely 05034100

Chain Guard LH

$

$

Not available

1380

Gravely 05038600

Chain Guard RH

$

$

Not available

1390

Gravely 05034200

Inspection Plate

$

$

Not available

1400

Gravely 07152000

Tube

$

$

Not available

1410

Gravely 07152100

Tire

$

$

Not available

1420

Gravely 07152200

Rim

$

$

Not available

1430

Gravely 06541600

Wheel Nut
(Superseded to 06511400)

$3.99

$

Usually ships in 4-12 days

0

1440

Gravely 05034300

Battery

$

$

Not available

1450

Gravely 05034400

Battery Leads

$

$

Not available

1460

Gravely 05034500

Pump

$

$

Not available

1470

Gravely 07055300

Elbow (90°)

Note: (90°)

$

$

Not available

1480

Gravely 07055400

Hose Nipple

$

$

Not available

1490

UNKNOWN

UNKNOWN

$

$

Not available

1510

Gravely 05973200

Bolt (Pump)

Note: (Pump)

$

$

Not available

1520

Gravely 05034600

Bell Housing

$

$

Not available

1550

Gravely 05034700

Coupling

$

$

Not available

1570

Gravely 05034800

Engine Mount

$22.99

$

Usually ships in 4-12 days

0

1571

UNKNOWN

UNKNOWN

$

$

Not available

1580

Gravely 05034900

Engine Mount Plate

$

$

Not available

1600

Gravely 05035000

Suction Hose

$

$

Not available

1610

Gravely 06943800

Hose Clamp

$

$

Not available

1620

Gravely 07055500

Nipple Filter

$

$

Not available

1630

Gravely 05035100

Filter Head

$

$

Not available

1640

Gravely 05031900

Filter Element

$

$

Not available

1641

Gravely 05038000

Hydraulic Filter (Pressure)

Note: (Pressure)

$

$

Not available

1641

Gravely 05042200

Filter Element

$

$

Not available

1650

Gravely 07055600

Nipple Overcenter Valve
(Superseded to 07058400)

$

$

Not available

1660

Gravely 05035200

Overcenter Valve

$

$

Not available

1670

Gravely 07055700

Elbow On-Center Valve

$

$

Not available

1680

Gravely 07055800

Elbow

$

$

Not available

1690

Gravely 07055900

Nipple

$

$

Not available

1700

Gravely 07056000

Nipple Valve Bank

$13.99

$

Usually ships in 4-12 days

0

1710

Gravely 07056100

Nipple Valve Bank

$13.99

$

Usually ships in 4-12 days

0

1720

Gravely 05532200

Reduction Bush
(Superseded to 07059300)

$

$

Not available

1730

Gravely 05035300

Valve Bank

$

$

Not available

1740

Gravely 05973300

Bolt (Valve Bank)
(Superseded to 05901628)

Note: (Valve Bank)

$1.49

$

Usually ships in 4-12 days

0

1750

Gravely 06943900

Hose Clamp

$

$

Not available

1760

Gravely 05035400

Chain

$

$

Not available

1770

Gravely 05035500

Chain Join Link

$

$

Not available

1780

Gravely 05035600

Chain Half Link

$

$

Not available

1790

Gravely 05973400

Bolt Chain Guard
(Superseded to 05956300)

$

$

Not available

1800

Gravely 06541700

Nut Chain Guard
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

1810

Gravely 05973500

Bolt Engine Mount
(Superseded to 05974800)

$

$

Not available

1820

Gravely 05973600

Bolt Engine Base Plate

$

$

Not available

1830

Gravely 07056200

Fitting Barbed

$

$

Not available

1840

Gravely 05973700

Bolt (Clamp)
(Superseded to 05969600)

Note: (Clamp)

$

$

Not available

1850

Gravely 65030400

Label Set, Gas

$

$

Not available

1860

Gravely 65030600

Label Set, Trencher vlv

$

$

Not available

1870

Gravely 65030500

Label Set, Diesel

$

$

Not available

2011

UNKNOWN

UNKNOWN

$

$

Not available

2012

UNKNOWN

UNKNOWN

$

$

Not available

2221

UNKNOWN

UNKNOWN

$

$

Not available

2222

UNKNOWN

UNKNOWN

$

$

Not available

2223

UNKNOWN

UNKNOWN

$

$

Not available

2300

Gravely 05043551

Grate, Floor

$

$

Not available
