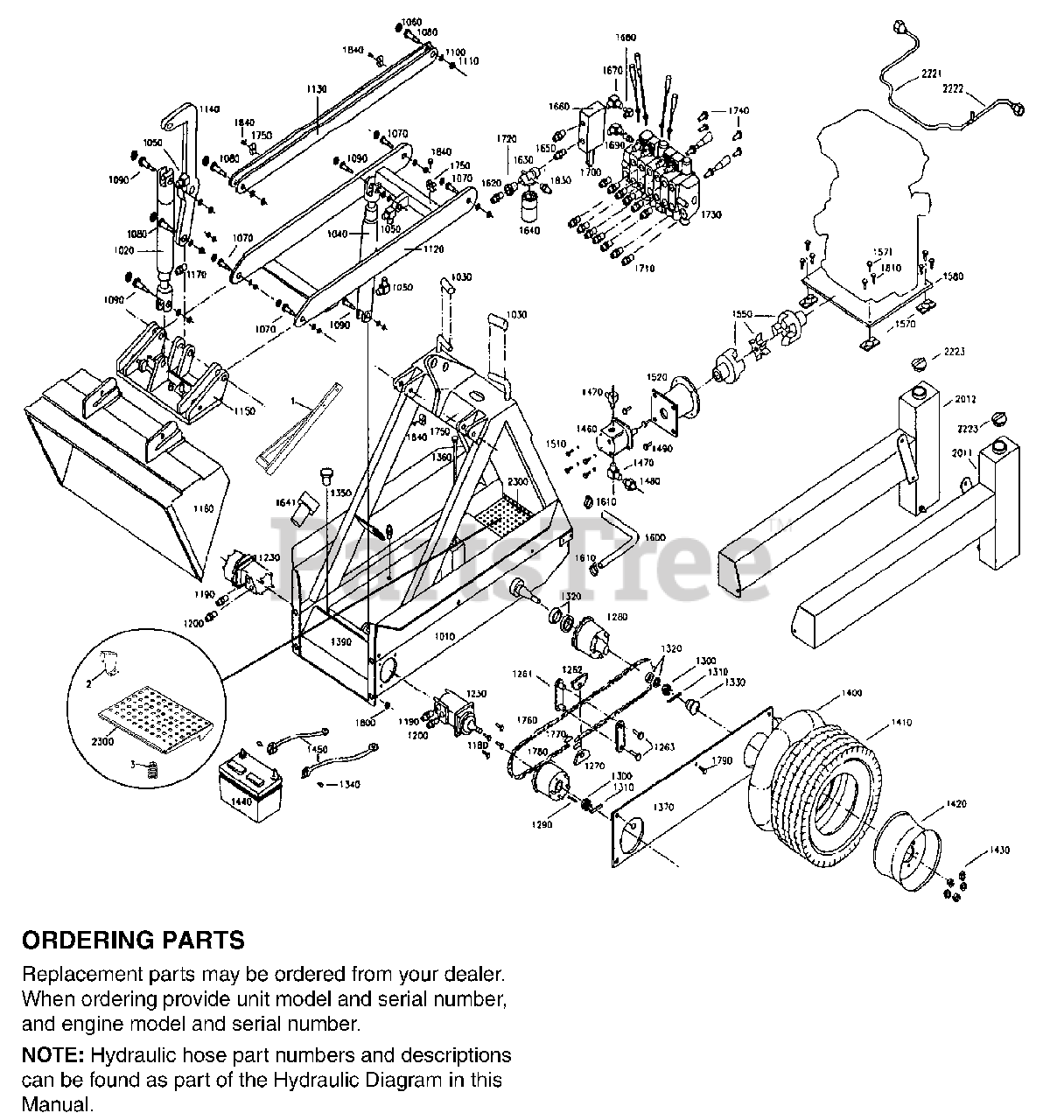

950001 (200) - Gravely Skidster without Trencher Valve, 20hp Honda (SN: 000101 & Above) Service Parts Parts Diagram

Skidster without Trencher Valve, 20hp Honda

Service Parts Parts Diagram

  • Title

Gravely 05031600

FILTER, AIR SKIDSTER HONDA

Note: Engine Service Part; For Models 950001 S/N 000101 & up, 950003 S/N 000101 - 000930

$

$

Not available

Gravely 05031700

FILTER, PRECLEANER AIR HONDA

Note: Engine Service Part; For Models 950001 S/N 000101 & up, 950003 S/N 000101 - 000930

$

$

Not available

Gravely 05031800

FILTER, ENG. OIL HONDA SKIDSTR

Note: Engine Service Part; For Models 950001 S/N 000101 & up, 950003 S/N 000101 - 000930

$

$

Not available

Gravely 05032000

PLUGS, SPARK SKIDSTER

Note: Engine Service Part; For Models 950001 S/N 000101 & up, 950003 S/N 000101 - 000930

$

$

Not available

Gravely 05047900

FILTER, AIR HONDA

Note: Engine Service Part; For Model 950003 S/N 000931 - 000974

$

$

Not available

Gravely 05048000

FILTER, AIR PRECLEANER HONDA

Note: Engine Service Part; For Model 950003 S/N 000931 - 000974

$

$

Not available

Gravely 05031800

FILTER, ENG. OIL HONDA SKIDSTR

Note: Engine Service Part; For Model 950003 S/N 000931 - 000974

$

$

Not available

Gravely 05048100

PLUG, SPARK HONDA

Note: Engine Service Part; For Model 950003 S/N 000931 - 000974

$

$

Not available

Gravely 05048200

FILTER, FUEL HONDA

Note: Engine Service Part; For Model 950003 S/N 000931 - 000974

$

$

Not available

Gravely 05048300

CLIP, FUEL FILTER HONDA

Note: Engine Service Part; For Model 950003 S/N 000931 - 000974

$

$

Not available

1

Gravely 05045151

BRACKET, CYLINDER LOCK WELDM'T
(Superseded to 05045100)

$

$

Not available

2

Gravely 05041051

BRACKET, HYDRAULIC STOP

$

$

Not available

3

Gravely 08336200

SPRING, COMPRESSION

$

$

Not available

1010

Gravely 05032600

CHASSIS

$

$

Not available

1020

Gravely 05032700

CYLINDER, CROWD

$

$

Not available

1030

Gravely 07531100

GRIP, SUEDE HANDLE

$

$

Not available

1040

Gravely 05032800

CYLINDER, LIFT

$

$

Not available

1050

Gravely 07054500

ADPT,EL 90DEG .75-16MX.56-18M
(Superseded to 07051200)

$

$

Not available

1060

Gravely 07054600

GREASE, ZERK .12-28 BSPP

$

$

Not available

1070

Gravely 05038300

PIN, LINKAGE "A"

$

$

Not available

1080

Gravely 05038400

PIN, LINKAGE "B"

$

$

Not available

1090

Gravely 05038500

PIN, LINKAGE "C"

$

$

Not available

1100

Gravely 06446200

WASHER, PIN

$

$

Not available

1110

Gravely 06541400

NUT-LK-NYL M16-2.0 YWZC

$

$

Not available

1120

Gravely 05032900

WELDMENT, BOOM ASSEMBLY

$

$

Not available

1130

Gravely 05033000

ARM, LEVELER

$

$

Not available

1140

Gravely 05033100

ARM, TILT

$

$

Not available

1150

Gravely 05033200

PLATE, ATTACHMENT

$

$

Not available

1160

Gravely 05033300

BUCKET

$

$

Not available

1170

Gravely 07054700

ADPT ELB 90 DEG .75-16MX.56-18

$

$

Not available

1180

Gravely 05972900

BLT-HEX M16-2X40 CL 10.9 YWZC

$

$

Not available

1190

Gravely 07054800

ADPT,STR .88-14MX.88-14M

$

$

Not available

1200

Gravely 07054900

ADPT STR .875-14MX.875-14M

$

$

Not available

1210

Gravely 07055000

DRAIN, CASE

$

$

Not available

1220

Gravely 07055100

FITTING, CASE

$

$

Not available

1230

Gravely 05033400

MOTOR, WHEEL

$

$

Not available

1261

Gravely 05033500

BRKT, CHAIN TENSIONER

$

$

Not available

1262

Gravely 05033600

GUIDE, TENSIONER CHAIN

$

$

Not available

1263

Gravely 05973000

SCR-SKH M8-1.25X25 FLH YWZC

$

$

Not available

1270

Gravely 05033700

HUB, FRONT DRIVE

$

$

Not available

1280

Gravely 05033800

HUB, REAR IDLER

$

$

Not available

1290

Gravely 06610600

KEY, DRIVE

$

$

Not available

1300

Gravely 06541500

NUT-SL .75-16 YWZC
(Superseded to 06538700)

$6.99

$

Usually ships in 4-12 days

0

1310

Gravely 06714400

PIN-CTR .15X1.50 YWZC
(Superseded to 06713800)

$3.99

$

Usually ships in 4-12 days

0

1320

Gravely 05033900

BEARING, WHEEL SET

$

$

Not available

1330

Gravely 09079700

DUST CAP

$

$

Not available

1340

Gravely 05973100

BLT-HEX M6-1X20 YWZC
(Superseded to 05974900)

$

$

Not available

1350

Gravely 07055200

PLUG, DRAIN .75-14 NPTF YWZC

$

$

Not available

1360

Gravely 05034000

DIPSTICK

$

$

Not available

1370

Gravely 05034100

GUARD, CHAIN LH

$

$

Not available

1380

Gravely 05038600

GUARD, CHAIN RH

$

$

Not available

1390

Gravely 05034200

PLATE, INSPECTION

$

$

Not available

1400

Gravely 07152000

TUBE 20.5X8.00-10 W/STD VALVE

$

$

Not available

1410

Gravely 07152100

TIRE, LUG 19X8.00-10

$

$

Not available

1420

Gravely 07152200

RIM 10X6

$

$

Not available

1430

Gravely 06541600

NUT-LUG .437-20 YWZC
(Superseded to 06511400)

$3.99

$

Usually ships in 4-12 days

0

1440

Gravely 05034300

BATTERY

$

$

Not available

1450

Gravely 05034400

BATTERY, LEADS

$

$

Not available

1460

Gravely 05034500

PUMP

$

$

Not available

1470

Gravely 07055300

ADPT, EL 90DEG .75-16MX.38-19M

Note: (90°)

$

$

Not available

1480

Gravely 07055400

ELBOW, 90 DEG

$

$

Not available

1490

UNKNOWN

$

$

Not available

1510

Gravely 05973200

SCR-SKH M8-1.25X30 PHOS.,OIL

Note: (Pump)

$

$

Not available

1520

Gravely 05034600

BELL, HOUSING

$

$

Not available

1550

Gravely 05034700

COUPLING

$

$

Not available

1570

Gravely 05034800

MOUNT, ENGINE, VIBRATION ISO

$26.99

$

Usually ships in 4-12 days

0

1571

UNKNOWN

$

$

Not available

1580

Gravely 05034900

MOUNT, ENGINE PLATE

$

$

Not available

1600

Gravely 05035000

HOSE, SUCTION

$

$

Not available

1610

Gravely 06943800

CLAMP, HOSE

$

$

Not available

1620

Gravely 07055500

ADPT,EL 90DEG .75-16MX.88-16M

$

$

Not available

1630

Gravely 05035100

HEAD, FILTER

$

$

Not available

1640

Gravely 05031900

FILTER, HYDRAULIC SKIDSTER

$

$

Not available

1641

Gravely 05038000

FILTER, HYDRAULIC ASSEMBLY

Note: (Pressure)

$

$

Not available

Gravely 05042200

FILTER, ELEMENT HIGH PRESSURE

$

$

Not available

1650

Gravely 07055600

NIPPLE, OVERCENTER
(Superseded to 07058400)

$

$

Not available

1660

Gravely 05035200

VALVE, OVERCENTER

$

$

Not available

1670

Gravely 07055700

ADPT,EL 90DEG SW NUT .88-14

$

$

Not available

1680

Gravely 07055800

ADPT,SW CONN .75-16MX.75-16F

$

$

Not available

1690

Gravely 07055900

ADPT,EL 90DEG .50-14M X.75-16M

$

$

Not available

1700

Gravely 07056000

ADPT,STR .50-14MX.56-18M

$13.99

$

Usually ships in 4-12 days

0

1710

Gravely 07056100

ADPT,STR .50-14MX.88-14M

$13.99

$

Usually ships in 4-12 days

0

1720

Gravely 05532200

BUSHING, REDUCTION
(Superseded to 07059300)

$

$

Not available

1730

Gravely 05035300

VALVE, BANK

$

$

Not available

1740

Gravely 05973300

BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

Note: (Valve Bank)

$1.99

$

Usually ships in 4-12 days

0

1750

Gravely 06943900

CLAMP, HOSE

$

$

Not available

1760

Gravely 05035400

CHAIN, 60 ROLLER

$

$

Not available

1770

Gravely 05035500

LINK, MASTER JOIN

$

$

Not available

1780

Gravely 05035600

LINK, MASTER HALF

$

$

Not available

1790

Gravely 05973400

BLT-HEX M8X1.25X16 YWZC
(Superseded to 05956300)

$

$

Not available

1800

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

1810

Gravely 05973500

BLT-HEX M8-1.25X12 YWZC
(Superseded to 05974800)

$

$

Not available

1820

Gravely 05973600

BLT-HEX M8-1.25X45 YWZC

$

$

Not available

1830

Gravely 07056200

FITTING, BARBED

$

$

Not available

1840

Gravely 05973700

BLT-HEX M8-1.25X55 YWZC
(Superseded to 05969600)

Note: (Clamp)

$

$

Not available

1850

Gravely 65030400

DECAL GRP- SKIDSTER HONDA GAS

$

$

Not available

1860

Gravely 65030600

DECAL, GRP SKIDSTER W/TRENCHER

$

$

Not available

1870

Gravely 65030500

DECAL GRP- SKIDSTER KUBOTA DSL

$

$

Not available

2011

UNKNOWN

$

$

Not available

2012

UNKNOWN

$

$

Not available

2221

UNKNOWN

$

$

Not available

2222

UNKNOWN

$

$

Not available

2223

UNKNOWN

$

$

Not available

2300

Gravely 05043551

GRATE, FLOOR WELDMENT

$

$

Not available
