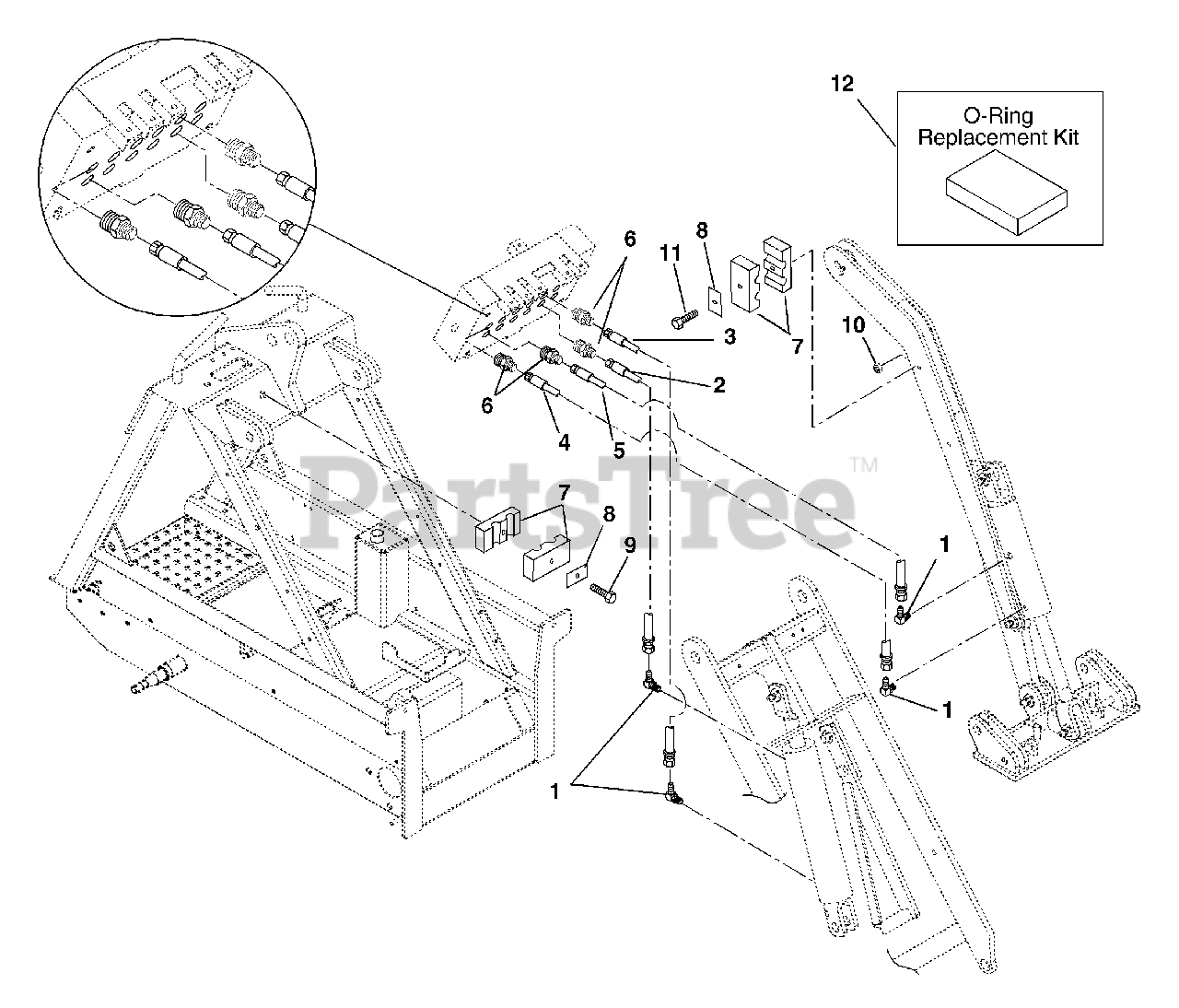

950004 (200) - Gravely Skidster with Trencher Valve, 20hp Honda (SN: 000600 & Above) Valve Bank To Lift And Crowd Cylinders Parts Diagram

Skidster with Trencher Valve, 20hp Honda

Valve Bank To Lift And Crowd Cylinders Parts Diagram

  • Title

1

Gravely 07061600

FTG, HYD ELBOW M6F-M8O

$15.99

$

Usually ships in 4-12 days

0

2

Gravely 05053200

HOSE, HYD .38-33-4K F6F0 F6F0

$

$

Not available

3

Gravely 05053300

HOSE, HYD .38-21-4K F6F0-F6F0

$

$

Not available

4

Gravely 05053400

HOSE, HYD .38-73-4K F6F0-F6F0

$

$

Not available

5

Gravely 05053500

HOSE, HYD .38-86-4K F6F0-F6F0

$

$

Not available

6

Gravely 07061700

FTG, HYD STR M8O-M6F

$

$

Not available

7

Gravely 06944900

CLAMP, HOSE

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 07059200

PLATE, COVER (CPT-2)

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05969600

BLT-HEX M8 X 1.25X55 YWZC

$

$

Not available

10

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 05976300

BLT, HEX M8-1.25X110 YWZC

$

$

Not available

12

Gravely 00046900

O-RING KIT, SAE BUNA N

Note: (Assorted O-Rings for Hydraulic Components to fittings) SAE

$

$

Not available

Gravely 00047000

O-RING KIT, SEAL-LOK BUNA N

Note: (Assorted O-Rings for Flat Face Seal Fittings and Hoses)

$

$

Not available
