950004 (200) - Gravely Skidster without Trencher Valve, 20hp Honda (SN: 000101 - 000499) Valve Bank To Hydraulic Filter And Filter Head Parts Diagram

Skidster without Trencher Valve, 20hp Honda

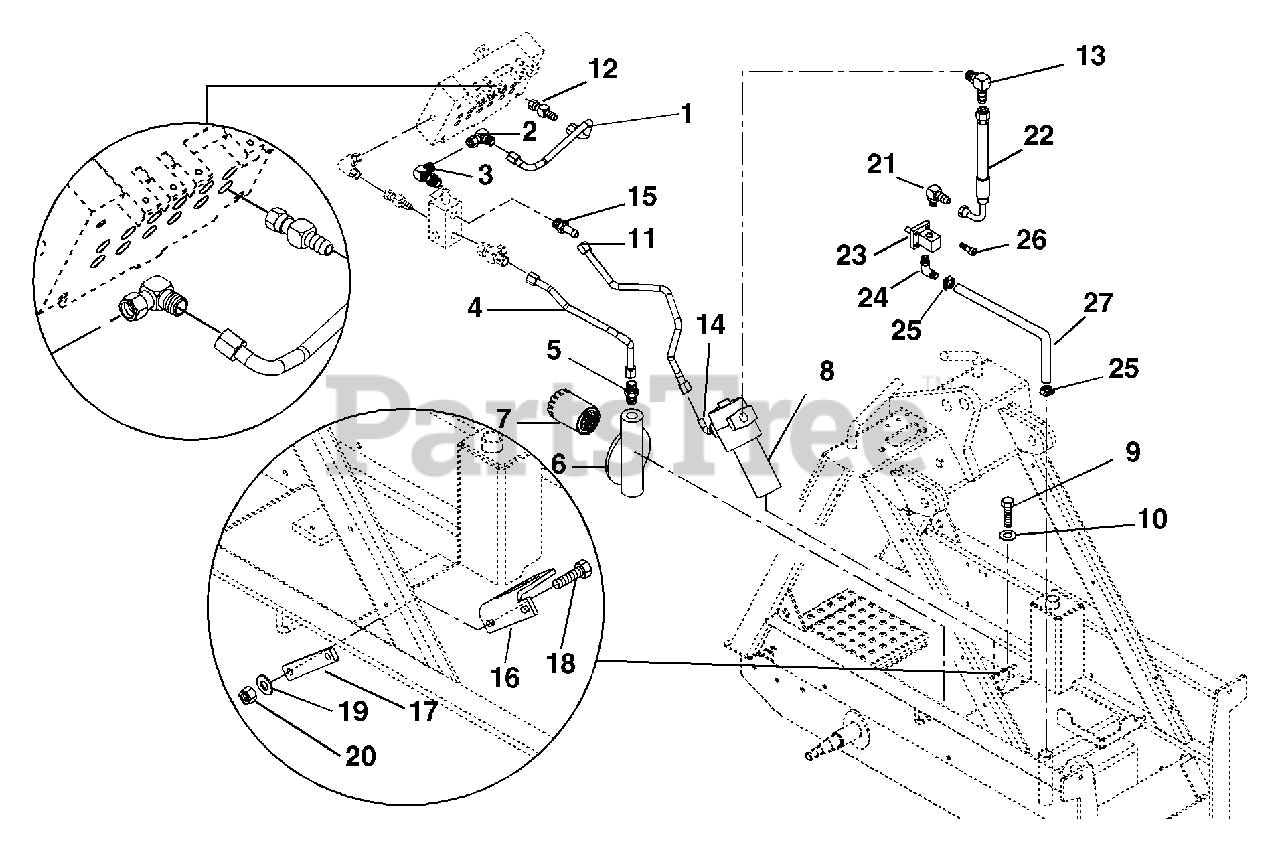

Valve Bank To Hydraulic Filter And Filter Head Parts Diagram

  • Title

1

Gravely 05039000

Tube-Valve Bank Inlet

$

$

Not available

2

Gravely 07055700

Adapter-Swivel Nut 90 Degree Elbow .875-14 x .875-14

$

$

Not available

3

Gravely 07055500

Adapter-Elbow 90 Degree .75-16 x .875-14

$

$

Not available

4

Gravely 05052600

Tube-Return

Note: (006)

$

$

Not available

4

Gravely 05052600

Tube-Return

Note: (004, 005) (Serial No. 000200 and up)

$

$

Not available

4

Gravely 05039100

Tube-Return

Note: (004, 005) (Serial No. 000101 to 000199)

$

$

Not available

5

Gravely 07059300

Adapter-Connector .875-14 x.750-14

$

$

Not available

6

Gravely 05035100

Head-Filter

$

$

Not available

7

Gravely 05031900

Filter-Hydraulic Skidster

$

$

Not available

8

Gravely 05038000

Filter-Hydraulic Assembly

$

$

Not available

8

Gravely 05042200

Filter-Element

$

$

Not available

9

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06444300

Washer-Flat-Steel .390 x .75 x .125

$8.49

$

In Stock, Qty 8

0

11

Gravely 05038900

Tube-Filter to Overcenter Valve

$

$

Not available

12

Gravely 07056100

Adapter-Straight .500-14 x .875-14

$13.99

$

Usually ships in 4-12 days

0

13

Gravely 07058500

Adapter-Elbow 90 Degree .750-16 x 1.062-12

$74.99

$

Usually ships in 4-12 days

0

14

Gravely 07058600

Adapter-Elbow .875-14 x 1.062-12

$

$

Not available

15

Gravely 07058400

Adapter-Straight .75-16 x .875-14

$

$

Not available

16

Gravely 05050550

Bracket, Filter

$

$

Not available

17

Gravely 05050650

Retainer, Filter Bracket

$

$

Not available

18

Gravely 05975300

Bolt-Hex M8-1.25 x 65

$

$

Not available

19

Gravely 06435700

Washer-Flat-Steel .38 x .875 xs .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06541700

Nut-Locking-Nylon M8-1.25
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 07055300

Adapter-elbow 90 Degree .75-16M x .38-19M

$

$

Not available

22

Gravely 05038800

Hose-Hydraulic Pump to Filter

$

$

Not available

23

Gravely 05034500

Pump

$

$

Not available

23

Gravely 55000800

Seals, Pump

$

$

Not available

24

Gravely 07055400

Elbow-90 Degree

$

$

Not available

25

Gravely 06946000

Clamp-Hose

$

$

Not available

26

Gravely 05973200

Screw-Socket M8-1.25 x 30

$

$

Not available

27

Gravely 05038700

Hose-Hydraulic Tank to Pump

Note: (004, 005)

$

$

Not available

27

Gravely 05049900

Hose-Hydraulic Tank to Pump

Note: (006)

$

$

Not available
