950004 (200) - Gravely Skidster without Trencher Valve, 20hp Honda (SN: 000500 - 000599) Battery And Electrical-Gas Parts Diagram

Skidster without Trencher Valve, 20hp Honda

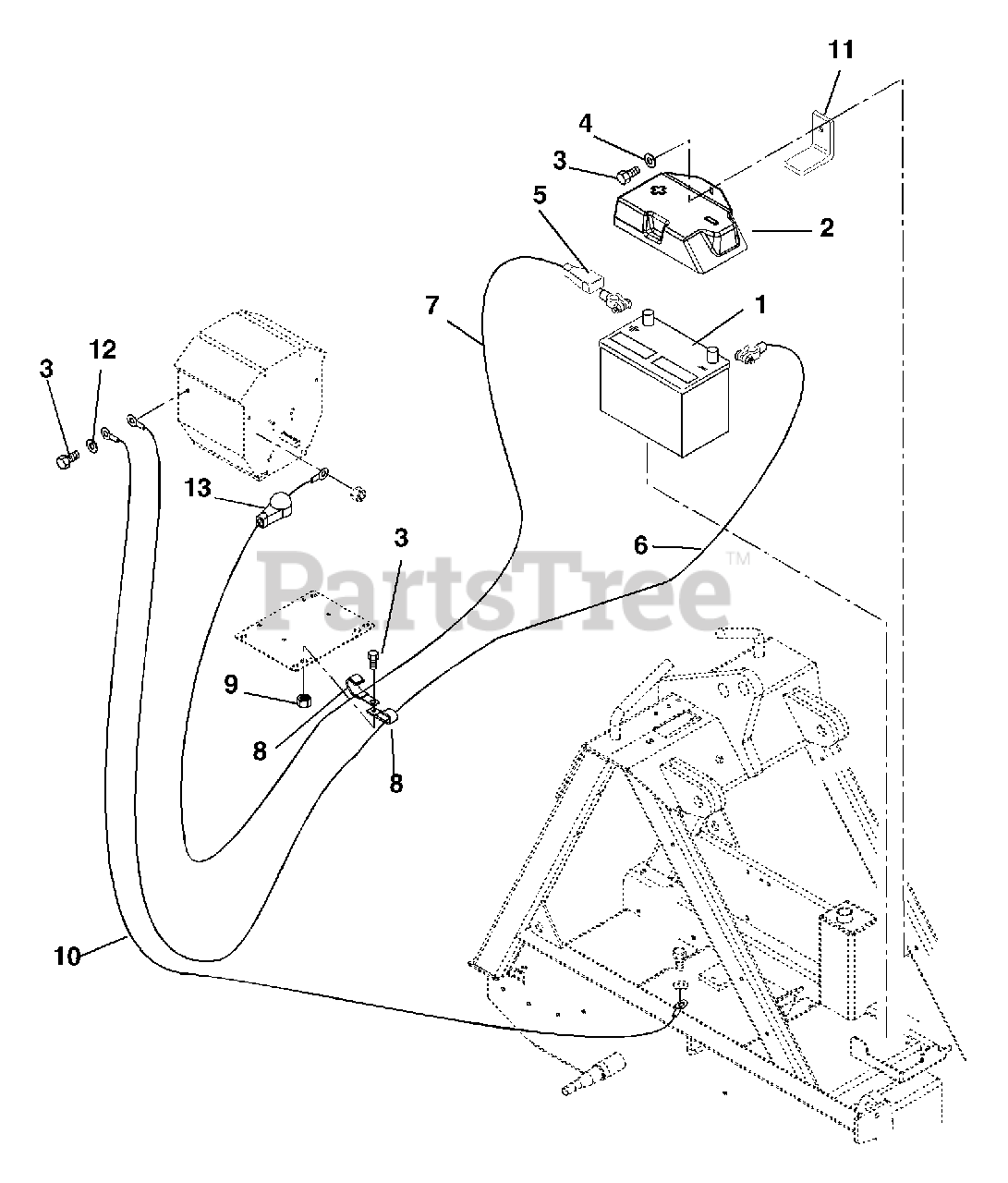

Battery And Electrical-Gas Parts Diagram

  • Title

1

Gravely 05047500

BATTERY

$

$

Not available

2

Gravely 05042300

COVER, BATTERY

$

$

Not available

3

Gravely 05956300

BLT-HEX M8 X 1.25X16 YWZC

$

$

Not available

4

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 034466

CVR,BATTERY TERMINAL
(Superseded to 07523100)

$

$

Not available

6

Gravely 05046300

CABLE, BATTERY POSITIVE

$

$

Not available

7

Gravely 05046400

CABLE, BATTERY NEGATIVE

$

$

Not available

8

Gravely 036518

J-CLAMP
(Superseded to 06909400)

$3.99

$

In Stock, only 4 left!

0

9

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 05041800

WIRE, GROUND

$

$

Not available

11

Gravely 05046151

BRACKET, BATTERY HOLDDOWN

$

$

Not available

12

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$8.49

$

Usually ships in 4-12 days

0
