950004 (200) - Gravely Skidster without Trencher Valve, 20hp Honda (SN: 000500 - 000599) Bucket And Lift Parts Diagram

Skidster without Trencher Valve, 20hp Honda

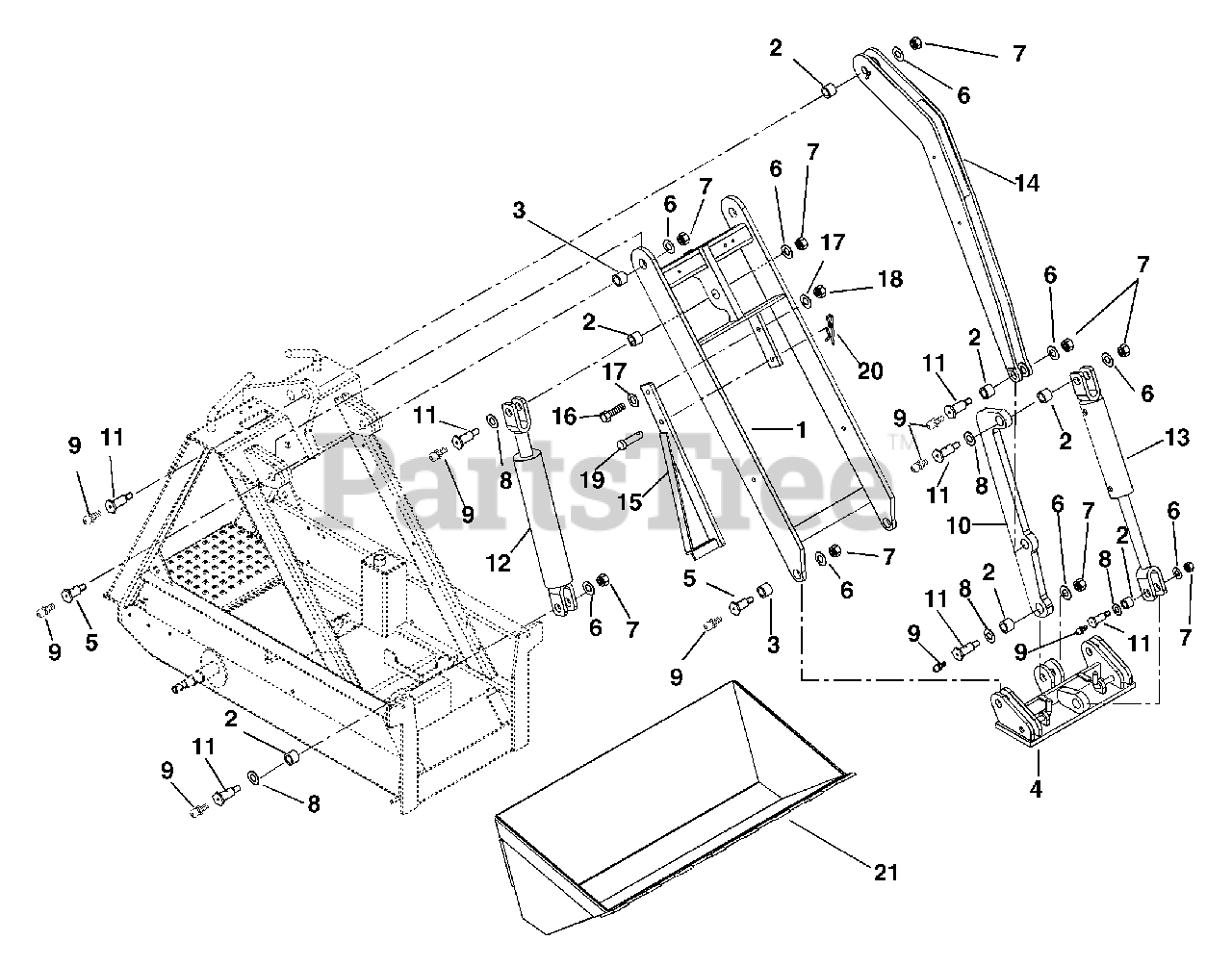

Bucket And Lift Parts Diagram

  • Title

1

Gravely 05032951

WELDMENT, BOOM ASSEMBLY

$

$

Not available

2

Gravely 05532900

BSHG-SLV 1.00X1.25X25.65MM

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 05533000

BSHG,1.00X1.25X16.125MM

$

$

Not available

4

Gravely 05033251

PLATE, ATTACHMENT

$

$

Not available

5

Gravely 05043600

PIN, LINKAGE "A" 1.50 HEX

$

$

Not available

6

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06541400

NUT-LK-NYL M16-2.0 YWZC

$

$

Not available

8

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

10

Gravely 05033151

ARM, TILT

$

$

Not available

11

Gravely 05043700

PIN, LINKAGE "B" 1.50 HEX

$

$

Not available

12

Gravely 05032800

CYLINDER, LIFT

$

$

Not available

Gravely 55000300

SEALS, 3.0" BORE CYLINDER

$

$

Not available

13

Gravely 05032700

CYLINDER, CROWD

$

$

Not available

Gravely 55000200

SEALS, 2.5" BORE CYLINDER

$

$

Not available

14

Gravely 05033051

ARM, LEVELER

$

$

Not available

15

Gravely 05045151

BRACKET, CYLINDER LOCK WELDM'T
(Superseded to 05045100)

$

$

Not available

16

Gravely 05975100

BLT-HEX M12-1.75X45 YWZC

$

$

Not available

17

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06542500

NUT-LK-NYL M12-1.75 YWZC

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 06815600

PIN-CLEV .438X1.50 YWZC

$

$

Not available

20

Gravely 06714000

PIN-HAIR-INT .15X2.937 YWZC

$3.49

$

In Stock, only 1 left!

0

21

Gravely 05033351

BUCKET

$

$

Not available
