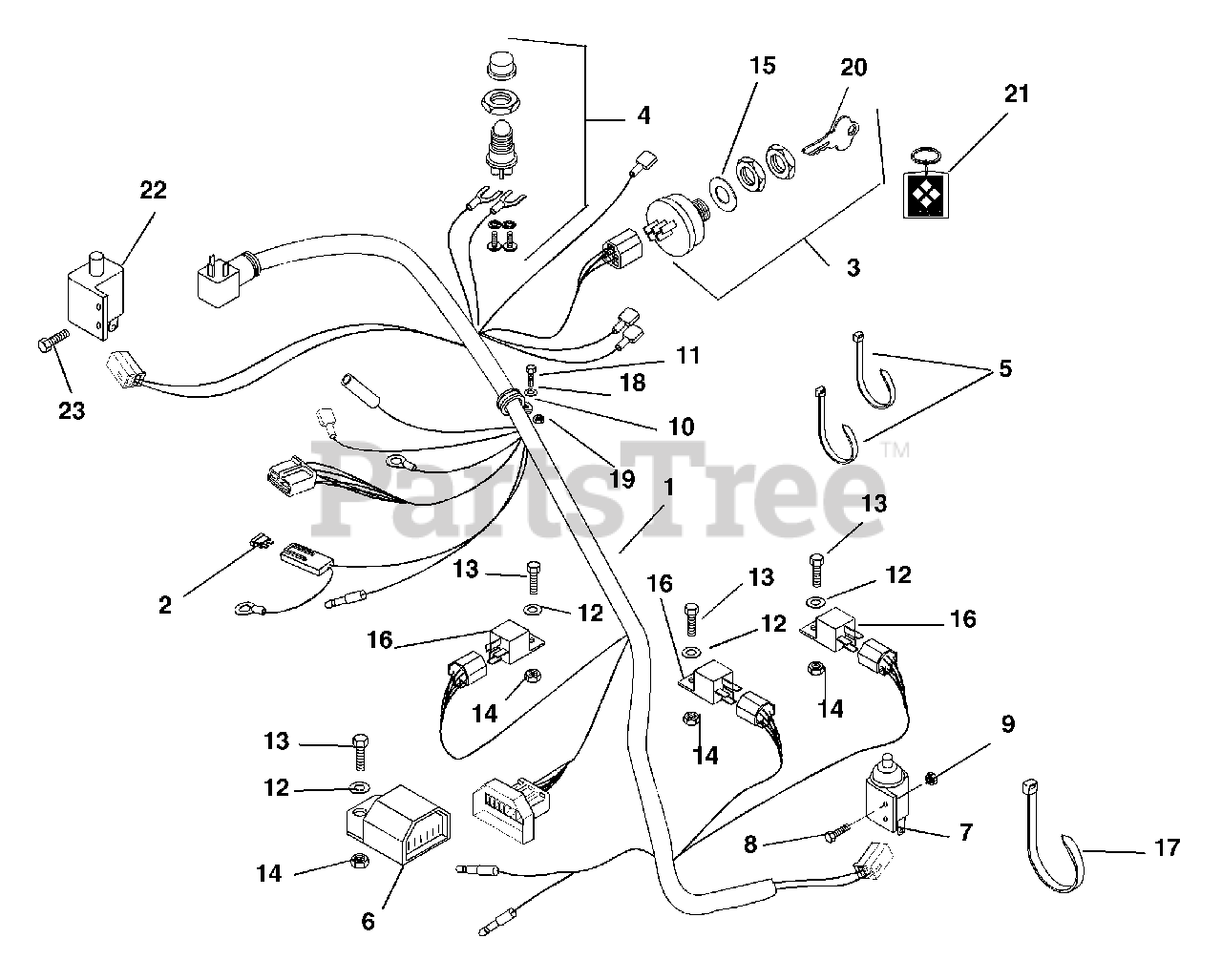

Skidster without Trencher Valve, 20hp Honda

Electrical Harness-Gas Parts Diagram

  • Title

1

Gravely 05057100

HARNESS, WIRE - GAS

$

$

Not available

2

Gravely 05046500

FUSE, 25 AMP

$

$

Not available

3

Gravely 09089700

SWITCH, IGNITION
(Superseded to 04331700)

$44.99

$

In Stock, Qty 20+

0

4

Gravely 045237

SWITCH,PREHEATER
(Superseded to 08967700)

$

$

Not available

5

Gravely 04003500

TIE WRAP, 15.25" X 120 LBS

$

$

Not available

6

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

$73.99

$

In Stock, only 4 left!

0

7

Gravely 09251900

SWITCH-SINGLE POLE N.O.W/COVER

$23.99

$

In Stock, only 1 left!

0

8

Gravely 05975800

BLT-HEX M5-.8X16 YWZC

$

$

Not available

9

Gravely 06543000

NUT-LK-NYL M5-.8 YWZC

$

$

Not available

10

Gravely 06908200

CLAMP, CUSHIONED STEEL

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 05972000

BLT-HEX M6-1.0X25 YWZC

$

$

Not available

12

Gravely 06444400

WSHR-FL-STL .188X.438X.049 YZ

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 05975800

BLT-HEX M5-.8X16 YWZC

$

$

Not available

14

Gravely 06543000

NUT-LK-NYL M5-.8 YWZC

$

$

Not available

15

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 03042800

RELAY
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

17

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

18

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06542600

NUT-LK-NYL M6-1 YWZC

$

$

Not available

20

Gravely 21510400

IGNITION KEY SET

$10.99

$

In Stock, only 1 left!

0

21

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

22

Gravely 03095700

SWITCH, INTERLOCK NC

$9.99

$

Usually ships in 4-12 days

0

23

Gravely 05975800

BLT-HEX M5-.8X16 YWZC

$

$

Not available
