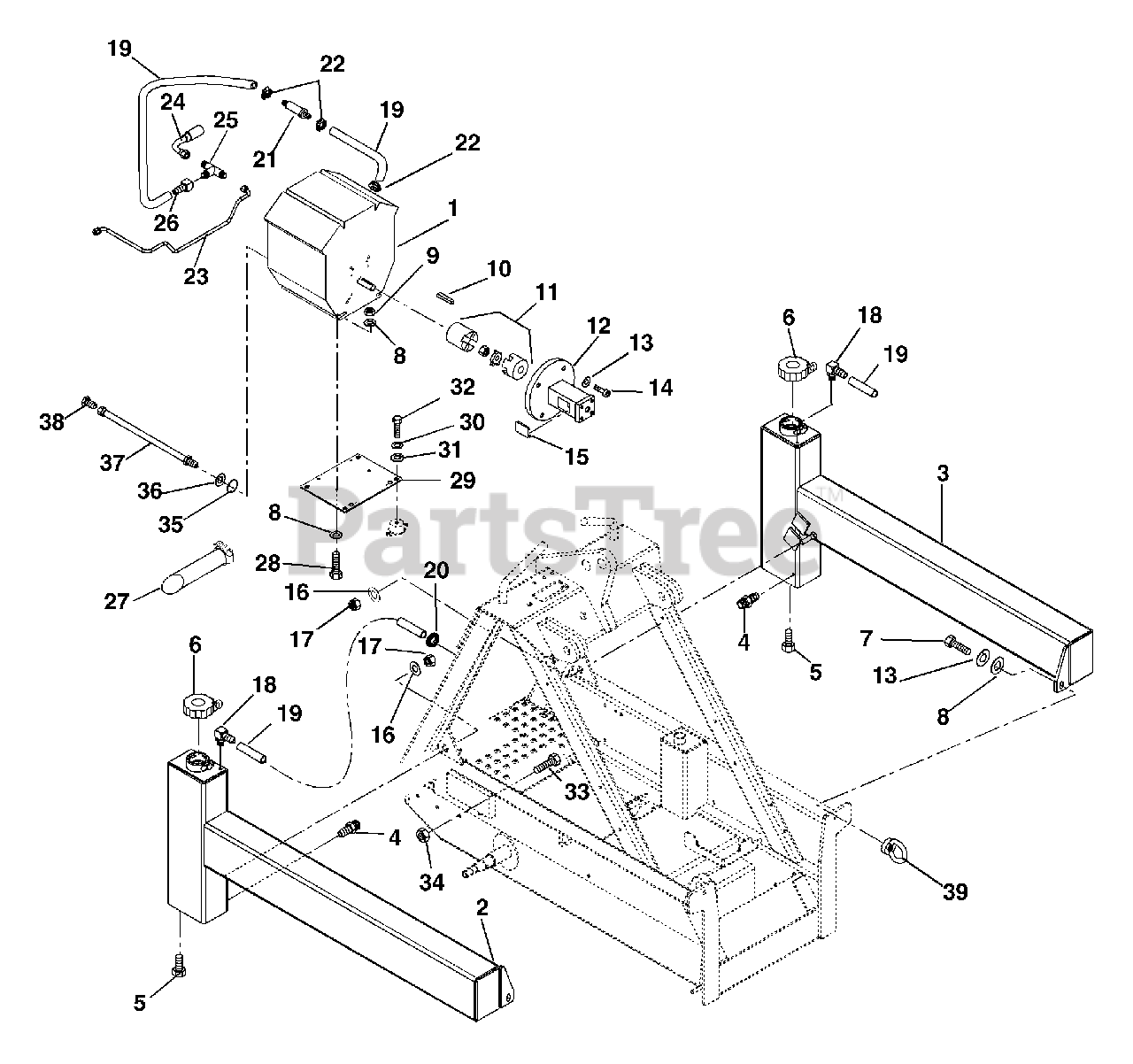

950004 (200) - Gravely Skidster without Trencher Valve, 20hp Honda (SN: 000500 - 000599) Engine And Fuel-Gas Parts Diagram

Skidster without Trencher Valve, 20hp Honda

Engine And Fuel-Gas Parts Diagram

  • Title

1

Gravely 08261700

ENGINE, HONDA 20 HP GAS

Note: (GX620K1QDF)

$

$

Not available

Gravely 05047900

FILTER, AIR HONDA

$

$

Not available

Gravely 05048000

FILTER, AIR PRECLEANER HONDA

$

$

Not available

Gravely 05048100

PLUG, SPARK HONDA

$

$

Not available

Gravely 05048200

FILTER, FUEL HONDA

$

$

Not available

Gravely 05048300

CLIP, FUEL FILTER HONDA

$

$

Not available

Gravely 05031800

FILTER, ENG. OIL HONDA SKIDSTR

$

$

Not available

Gravely 05048500

WRENCH, OIL FILTER HONDA

$

$

Not available

2

Gravely 05042450

TANK, FUEL GAS RH

$

$

Not available

3

Gravely 05042550

TANK, FUEL GAS LH

$

$

Not available

4

Gravely 07059400

ADPT, CONN .56-18MX.12-27M

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 07057700

PLUG, DRAIN

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 05042800

CAP, FUEL LOCKING

$

$

Not available

7

Gravely 05955200

BLT M10 X 1.5X40 YWZC

$

$

Not available

8

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06542400

NUT-LK-NYL M10-1.5 YWZC

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

11

Gravely 05034700

COUPLING

$

$

Not available

12

Gravely 05034600

BELL, HOUSING

$

$

Not available

13

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 15

0

15

Gravely 05045800

COVER, ACCESS

$

$

Not available

16

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06542500

NUT-LK-NYL M12-1.75 YWZC

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 07057500

FTG,BARB EL .12-27MX.25ID HOSE

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07506400

GROMMET .50IDX.812OD

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 040742

FILTER,FUEL
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

22

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

23

Gravely 05044000

TUBE, FUEL LINE - LONG

$

$

Not available

24

Gravely 05044100

TUBE, FUEL LINE - SHORT

$

$

Not available

25

Gravely 07021500

ADPT-TEE .56-18

$31.99

$

Usually ships in 4-12 days

0

26

Gravely 07057200

FTG-HOSE .375-M6 JIC30682-6-4B

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 05041600

EXTENSION, EXHAUST

$

$

Not available

28

Gravely 05975600

BLT-HEX M10-1.5X45 YWZC

$

$

Not available

29

Gravely 05034950

MOUNT, ENGINE PLATE

$

$

Not available

30

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$3.99

$

In Stock, only 2 left!

0

33

Gravely 05972000

BLT-HEX M6-1.0X25 YWZC

$

$

Not available

34

Gravely 06542600

NUT-LK-NYL M6-1 YWZC

$

$

Not available

35

Gravely 07060300

O-RING

$

$

Not available

36

Gravely 07060400

RING, RETAINING M14

$3.49

$

Usually ships in 4-12 days

0

37

Gravely 05043900

HOSE, ENG OIL DRAIN

$

$

Not available

38

Gravely 07057600

PLUG, .44-20

$

$

Not available

39

Gravely 07064700

NUT, EYE M10-1.5

$

$

Not available
