950004 (200) - Gravely Skidster without Trencher Valve, 20hp Honda (SN: 000500 - 000599) Valve Bank, Levers And Hydraulics-Standard Parts Diagram

Skidster without Trencher Valve, 20hp Honda

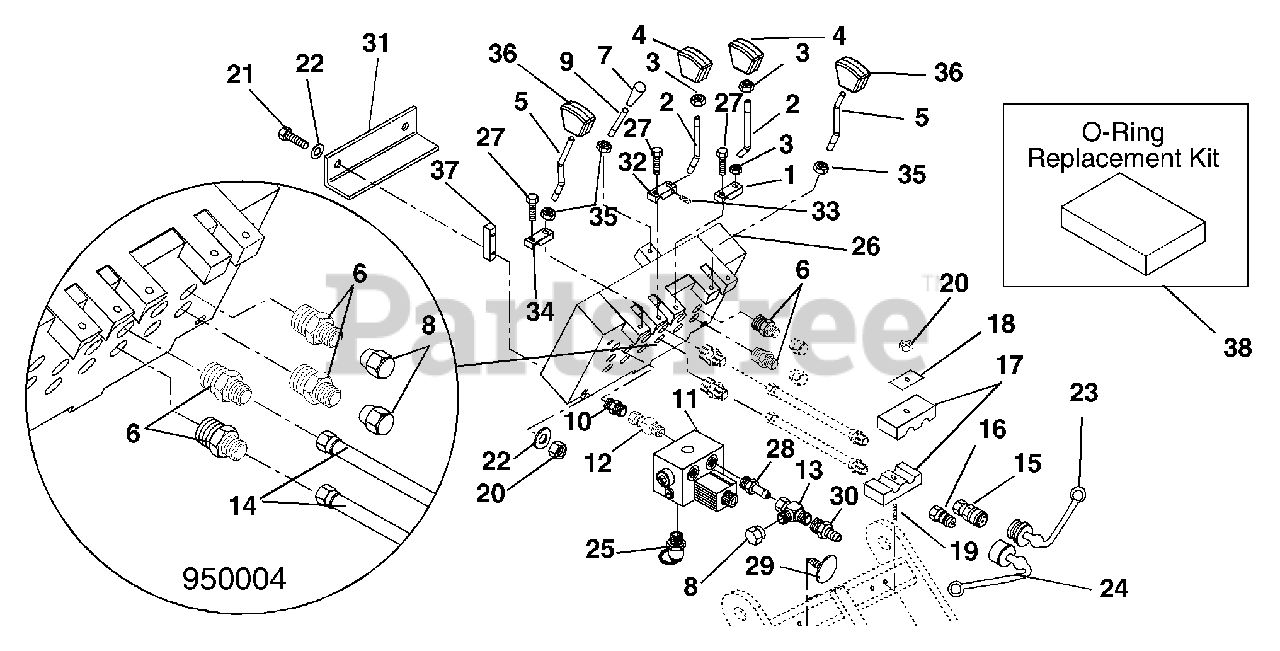

Valve Bank, Levers And Hydraulics-Standard Parts Diagram

  • Title

1

Gravely 05053600

BRACKET, LH DRIVE LEVER

$

$

Not available

2

Gravely 05044300

LEVER, DIRECTION CONTROL

$

$

Not available

3

Gravely 06537800

NUT-JAM M10-1.5 YWZC

$

$

Not available

4

Gravely 07531200

KNOB, CONTROL

$

$

Not available

5

Gravely 05053800

LEVER, CYLINDER CONTROL

$

$

Not available

6

Gravely 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

Note: (Model 004)

$9.99

$

Usually ships in 4-12 days

0

Gravely 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

Note: (Models 005, 504)

$9.99

$

Usually ships in 4-12 days

0

7

Gravely 07532800

KNOB, CONTROL LEVER

$

$

Not available

8

Gravely 07061900

FTG, HYD CAP F8F

Note: (Model 004)

$

$

Not available

9

Gravely 05054200

LEVER, AUX CONTROL

$

$

Not available

10

Gravely 07062100

FTG, HYD STR M10O-M8F

$15.99

$

In Stock, only 2 left!

0

11

Gravely 05035200

VALVE, OVERCENTER

$

$

Not available

12

Gravely 07062200

FTG, HYD STR SWVL M8O-F8F

$

$

Not available

13

Gravely 07062300

FTG, HYD TEE SWVL F8F-M8F-M8F

$

$

Not available

14

Gravely 05051200

HOSE, HYD .50-23-3K M8O-F8F

Note: (Model 004)

$

$

Not available

15

Gravely 07060900

COUPLING, FEMALE QUICK - ORB

$

$

Not available

16

Gravely 07061000

COUPLING, MALE QUICK - ORB

$

$

Not available

17

Gravely 06943900

CLAMP, HOSE

$

$

Not available

18

Gravely 07059100

PLATE, COVER (CPT-3)

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 07008800

STUD, M8-1.25X3.62" YWZC

$

$

Not available

20

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 05975300

BLT-HEX M8-1.25X65 YWZC

$

$

Not available

22

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

23

Gravely 07058900

PLUG, DUST .500

$

$

Not available

24

Gravely 07059000

CAP, DUST .500

$

$

Not available

25

Gravely 07058200

COUPLING, TEST PORT

$

$

Not available

26

Gravely 05052900

VALVE, BANK - SALAMI

$

$

Not available

27

Gravely 05973300

BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0

28

Gravely 07061800

FTG, HYD STR M8O-M10F

$

$

Not available

29

Gravely 05048600

RETAINER, TRIM

Note: (Model 004)

$

$

Not available

30

Gravely 07062700

FTG, HYD STR SWVL F8F-M10PL

$

$

Not available

31

Gravely 05045950

SHIELD, VALVE HEAT

$

$

Not available

32

Gravely 05053700

BRACKET, RH DRIVE LEVER

$

$

Not available

33

Gravely 102569

SCR-SET .25-20X.25 SKHCUP OH
(Superseded to 06000500)

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 05053900

BRACKET,CYLINDER CONTROL LEVER

$

$

Not available

35

Gravely 06542700

NUT, JAM M8-1.25 YWZC

$

$

Not available

36

Gravely 07533100

KNOB, CONTROL

$

$

Not available

37

Gravely 05054051

SPACER, VALVE SALAMI

$

$

Not available

38

Gravely 00046900

O-RING KIT, SAE BUNA N

Note: For Hydraulic Components to fittings SAE

$

$

Not available

Gravely 00047000

O-RING KIT, SEAL-LOK BUNA N

Note: For Flat Face Seal Fittings and Hoses

$

$

Not available
