950004 (200) - Gravely Skidster without Trencher Valve, 20hp Honda (SN: 000500 - 000599) Valve Bank To Hydraulic Filter And Filter Head Parts Diagram

Skidster without Trencher Valve, 20hp Honda

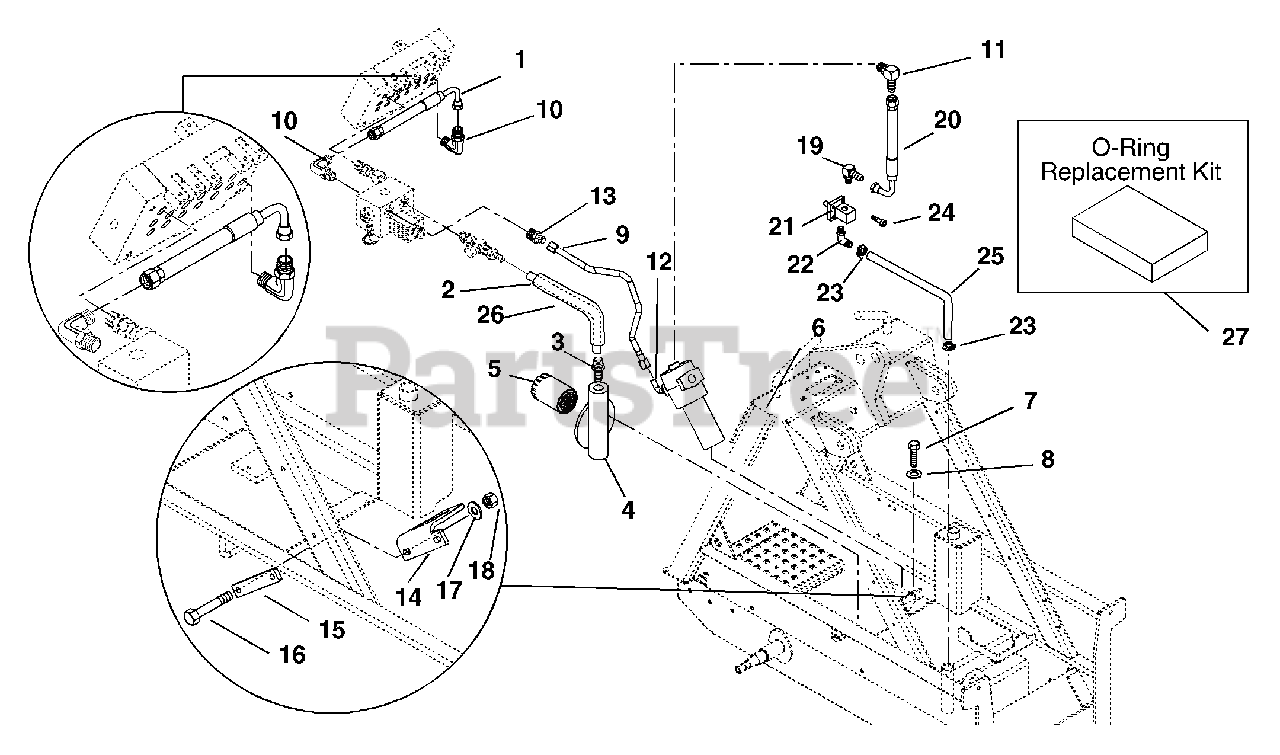

Valve Bank To Hydraulic Filter And Filter Head Parts Diagram

  • Title

1

Gravely 05051700

HOSE, HYD .50-12-3K F8F9-F8F0

$

$

Not available

2

Gravely 05054300

HOSE, HYD .63-18-.25K

Note: (Model 004)

$

$

Not available

3

Gravely 07062800

FTG, HYD STR M12N-M10PL

$

$

Not available

4

Gravely 05035100

HEAD, FILTER

$

$

Not available

5

Gravely 05031900

FILTER, HYDRAULIC SKIDSTER

$

$

Not available

6

Gravely 05038000

FILTER, HYDRAULIC ASSEMBLY

$

$

Not available

Gravely 05042200

FILTER, ELEMENT HIGH PRESSURE

$

$

Not available

7

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

9

Gravely 05051600

TUBE, FILTER TO O/C VALVE

$

$

Not available

10

Gravely 07062900

FTG, HYD ELBOW M8F-M8O

$

$

Not available

11

Gravely 07062400

FTG, HYD ELBOW M12O-M8F

$

$

Not available

12

Gravely 07062500

FTG, HYD ELBOW M12O-M10F

$

$

Not available

13

Gravely 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

$9.99

$

Usually ships in 4-12 days

0

14

Gravely 05050550

BRACKET, FILTER

$

$

Not available

15

Gravely 05050650

RETAINER, FILTER BRACKET

$

$

Not available

16

Gravely 05975300

BLT-HEX M8-1.25X65 YWZC

$

$

Not available

17

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 07062600

FTG, HYD ELBOW M8B-M8F

$

$

Not available

20

Gravely 05054100

HOSE, HYD .50-17-3K F8F0-F8F9

$

$

Not available

21

Gravely 05034500

PUMP

$

$

Not available

Gravely 55000800

SEALS, PUMP HIGH-TEMP

$

$

Not available

22

Gravely 07055400

ELBOW, 90 DEG

$

$

Not available

23

Gravely 06946000

CLAMP, HOSE

$

$

Not available

24

Gravely 05973200

SCR-SKH M8-1.25X30 PHOS.,OIL

$

$

Not available

25

Gravely 05038700

HOSE, HYDRAULIC TANK TO PUMP

Note: (Models 004, 005)

$

$

Not available

Gravely 05049900

HOSE,HYD TANK TO PUMP - DIESEL

Note: (Model 504)

$

$

Not available

26

Gravely 05051800

SLEEVE, PROTECTIVE HOSE

Note: (Model 004)

$

$

Not available

27

Gravely 00046900

O-RING KIT, SAE BUNA N

Note: For Hydraulic Components to fittings SAE

$

$

Not available

Gravely 00047000

O-RING KIT, SEAL-LOK BUNA N

Note: For Flat Face Seal Fittings and Hoses

$

$

Not available
