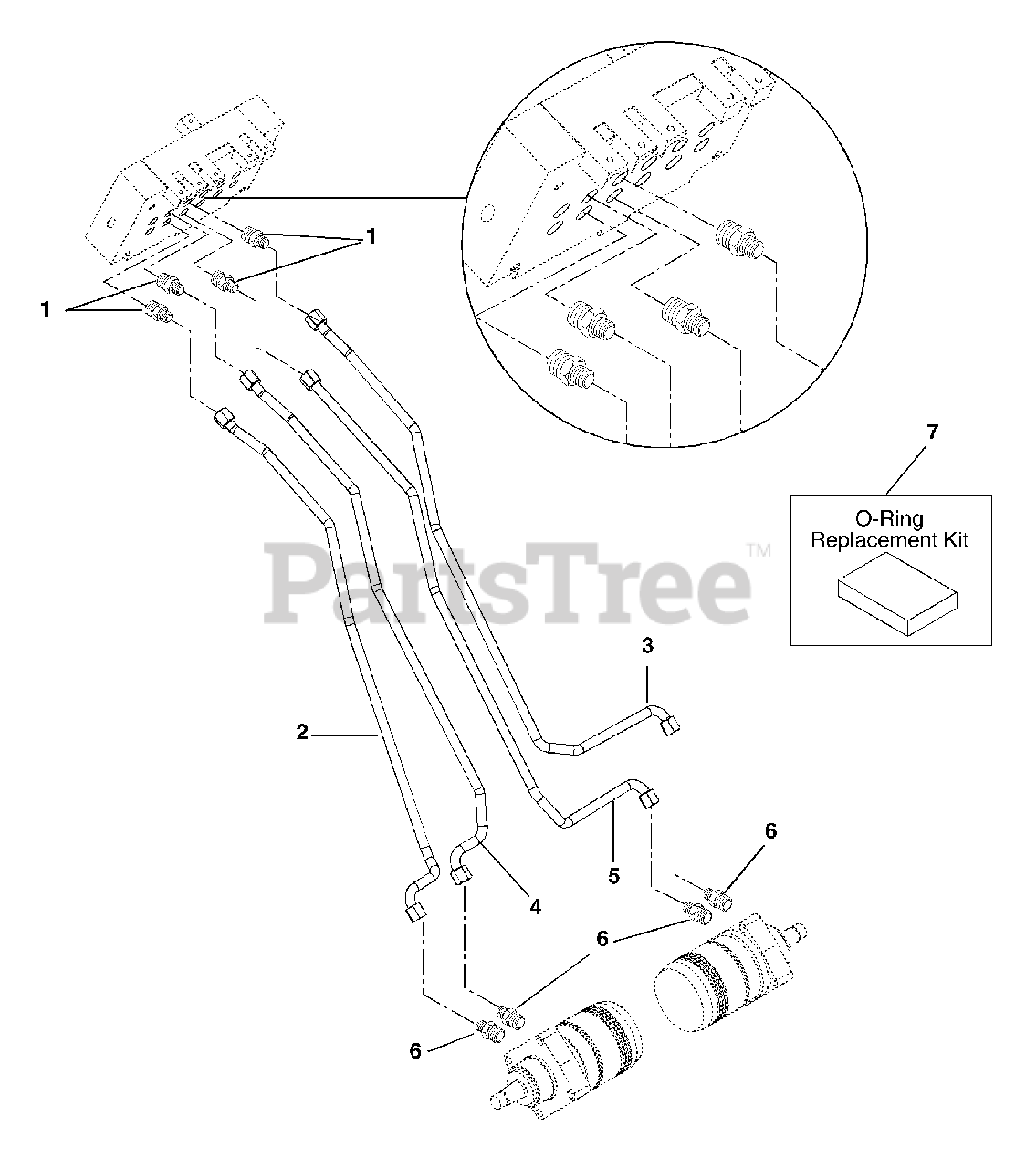

950004 (200) - Gravely Skidster without Trencher Valve, 20hp Honda (SN: 000500 - 000599) Valve Bank To Motor Parts Diagram

Skidster without Trencher Valve, 20hp Honda

Valve Bank To Motor Parts Diagram

  • Title

1

Gravely 07061800

FTG, HYD STR M8O-M10F

$

$

Not available

2

Gravely 05052000

TUBE, RH MOTOR

$

$

Not available

3

Gravely 05051900

TUBE, LH MOTOR

$

$

Not available

4

Gravely 05052100

TUBE, RH MOTOR

$

$

Not available

5

Gravely 05052200

TUBE, LH MOTOR

$

$

Not available

6

Gravely 07061500

FTG, HYD STR M10O-M10F

$

$

Not available

7

Gravely 00046900

O-RING KIT, SAE BUNA N

Note: For Hydraulic Components to fittings SAE

$

$

Not available

Gravely 00047000

O-RING KIT, SEAL-LOK BUNA N

Note: For Flat Face Seal Fittings and Hoses

$

$

Not available
