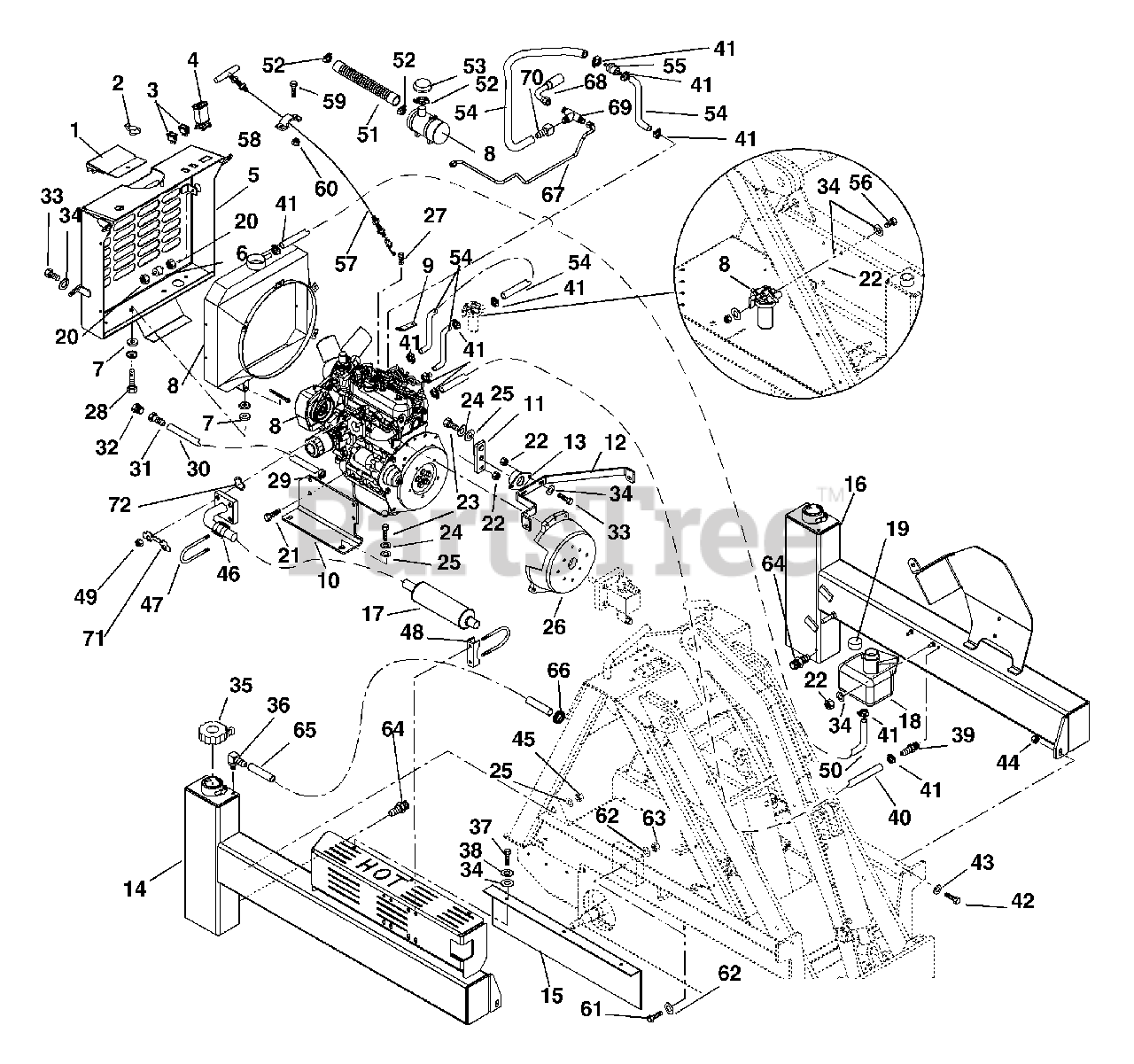

950006 (200 D) - Gravely Skidster with Trencher Valve, 20hp Kubota (SN: 000101 & Above) Engine And Fuel - Diesel Parts Diagram

Skidster with Trencher Valve, 20hp Kubota

Engine And Fuel - Diesel Parts Diagram

  • Title

1

Gravely 05050450

Cover, Radiator Cap

$

$

Not available

2

Gravely 07531700

Knob, Hand
(Superseded to 07534800)

$7.99

$

In Stock, Qty 13

0

3

Gravely 08841200

Light Indicator
(Superseded to 05128700)

$11.99

$

Usually ships in 4-12 days

0

4

Gravely 03492700

Hour Meter
(Superseded to 09497400)

$22.99

$

In Stock, only 1 left!

0

5

Gravely 05052850

Guard, Radiator

$

$

Not available

6

Gravely 07060800

Mount, Stud/Plate

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 07532500

Isolator

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 08261800

Engine, Kubota

$

$

Not available

8

Gravely 05037500

Filter, Air-Diesel

$

$

Not available

8

Gravely 05056200

Filter, Fuel-Kubota Diesel

$

$

Not available

8

Gravely 05056300

Filter, Oil-Kubota Diesel

$

$

Not available

9

Gravely 05049551

Bracket, Throttle Cable

$

$

Not available

10

05050750

Mount, Engine Right Hand Diesel

$

$

Not available

10

05050850

Mount, Engine Left Hand Diesel

$

$

Not available

11

05050950

Plate, Tie

$

$

Not available

12

Gravely 05051050

Bracket, Upper Engine

$

$

Not available

13

Gravely 05034800

Mount, Engine

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 05042750

Tank, Fuel Diesel Right Hand

$

$

Not available

15

Gravely 05052750

Bracket, Muffler

$

$

Not available

16

Gravely 05042650

Tank, Fuel Diesel Left Hand

$

$

Not available

17

Gravely 05049700

Muffler

$

$

Not available

18

Gravely 09032400

Tank, Plastic 1.5 Quart

$

$

Not available

19

Gravely 08967800

Cap, 1.62 Vented

$

$

Not available

20

Gravely 06539800

Nut-Hex M6 x 1.0
(Superseded to 06500925)

$0.99

$

In Stock, only 2 left!

0

21

Gravely 05960500

Bolt, Hex M10-1.25 x 20

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 06541700

Nut-Locking-Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

23

Gravely 05975000

Bolt-Hex .50-20X1.00 Grade 5

$3.49

$

In Stock, only 4 left!

0

24

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

25

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 05048400

Housing, Bell Kubota Assembly

$

$

Not available

27

Gravely 03604100

Swivel Assembly

$9.49

$

Usually ships in 4-12 days

0

28

Gravely 05976400

Bolt,Hex M10-1.25X40 with Lock Hole

$

$

Not available

29

Gravely 06922100

Clamp-Hose Worm .44/.78 x .53

$2.49

$

Usually ships in 4-12 days

0

30

Gravely 05047600

Hose, Oil Drain

$

$

Not available

31

Gravely 07060600

Adapter, Female Swivel .75-16F

$6.99

$

Usually ships in 4-12 days

0

32

Gravely 07060700

Plug, Hose Swivel .75-16M

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 05973300

Bolt-Hex M8-1.25 x 20
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0

34

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

35

Gravely 05042800

Cap, Fuel Tank

$

$

Not available

36

Gravely 07057500

Fitting, Barbed 90 Degree Elbow .125-27M x .25 I.D. Hose

$5.99

$

Usually ships in 4-12 days

0

37

Gravely 05956300

Bolt-Hex M8 X 1.25 x 16

$

$

Not available

38

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 07057400

Fitting, Barbed .125-27M x .250 I.D. Hose

$

$

Not available

40

Gravely 00924300

Gas Line-Bulk 1/4" I.D.
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 06924300

Hose Clamp

$6.99

$

Usually ships in 4-12 days

0

42

Gravely 05955200

Bolt M10 x 1.5 x 40

$

$

Not available

43

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 06542400

Nut-Locking-Nylon M10-1.5

$3.49

$

Usually ships in 4-12 days

0

45

Gravely 06542500

Nut-Locking-Nylon M12-1.75

$3.99

$

Usually ships in 4-12 days

0

46

Gravely 05049800

Pipe, Exhaust

$

$

Not available

47

Gravely 06922300

Clamp, Muffler U-Bolt

$

$

Not available

48

Gravely 06946200

Clamp, Muffler 3.50

$

$

Not available

49

Gravely 06538600

Nut-Hex M8-1.25

$1.99

$

Usually ships in 4-12 days

0

50

Gravely 00922600

Hose,5/16 I.D.

$0.99

$

Usually ships in 4-12 days

0

51

Gravely 05037300

Hose, Flexible

$

$

Not available

52

Gravely 06923600

Clamp, 2.25 Diameter Hose

$6.49

$

Usually ships in 4-12 days

0

53

Gravely 05037600

Filter, Pre Diesel

$

$

Not available

54

Gravely 00922600

Hose, .312 I.D.

$0.99

$

Usually ships in 4-12 days

0

55

Gravely 05050300

Filter, Fuel .312 I.D. Hose

$20.99

$

Usually ships in 4-12 days

0

56

Gravely 05975300

Bolt-Hex M8-1.25 x 65

$

$

Not available

57

Gravely 06945900

Cable, Throttle-Diesel

$

$

Not available

58

Gravely 05049600

Clamp, Cable

$

$

Not available

59

Gravely 05975800

Bolt-Hex M5 .8 x 16

$

$

Not available

60

Gravely 06543000

Nut-Locking-Nylon M5 .8

$

$

Not available

61

Gravely 05972000

Bolt-Hex M6-1.0X25

$

$

Not available

62

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

63

Gravely 06542600

Nut-Locking-Nylon M6-1

$3.49

$

Usually ships in 4-12 days

0

64

Gravely 07059400

Adapter, Male Connector .562-19M x .125-27M

$3.49

$

Usually ships in 4-12 days

0

65

Gravely 00924300

Gas Line-Bulk .25 I.D.
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

66

Gravely 07506400

Grommet

$5.99

$

In Stock, only 2 left!

0

67

Gravely 05044000

Tube-Fuel Line Long

$

$

Not available

68

Gravely 05044100

Tube-Fuel Line Short

$

$

Not available

69

Gravely 07021500

Adapter-Tee .56-18

$30.99

$

Usually ships in 4-12 days

0

70

Gravely 07057200

Fitting-Hose .375-M6

$5.99

$

Usually ships in 4-12 days

0

71

Gravely 05000151

Bracket, Lock

$

$

Not available

72

Gravely 07061200

Washer, Wave

$

$

Not available
