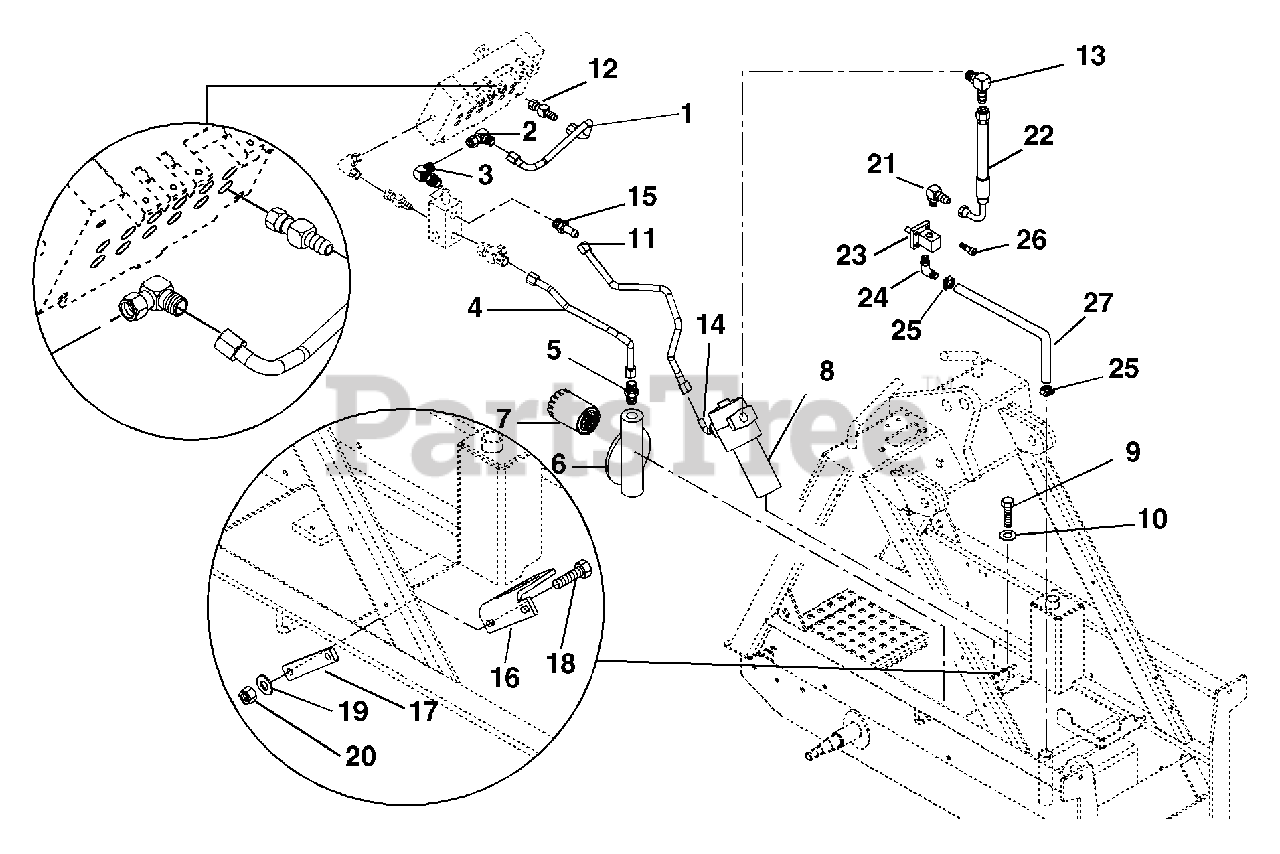

950006 (200 D) - Gravely Skidster with Trencher Valve, 20hp Kubota (SN: 000101 & Above) Valve Bank To Hydraulic Filter And Filter Head Parts Diagram

Skidster with Trencher Valve, 20hp Kubota

Valve Bank To Hydraulic Filter And Filter Head Parts Diagram

  • Title

1

Gravely 05039000

TUBE, VLV BANK INLET

$

$

Not available

2

Gravely 07055700

ADPT,EL 90DEG SW NUT .88-14

$

$

Not available

3

Gravely 07055500

ADPT,EL 90DEG .75-16MX.88-16M

$

$

Not available

4

Gravely 05052600

TUBE, RETURN

Note: (006)

$

$

Not available

Gravely 05052600

TUBE, RETURN

Note: (004, 005) (Serial No. 000200 and up)

$

$

Not available

Gravely 05039100

TUBE, RETURN

Note: (004, 005) (Serial No. 000101 to 000199)

$

$

Not available

5

Gravely 07059300

ADPT,CONNECTOR .88-14MX.75-14M

$

$

Not available

6

Gravely 05035100

HEAD, FILTER

$

$

Not available

7

Gravely 05031900

FILTER, HYDRAULIC SKIDSTER

$

$

Not available

8

Gravely 05038000

FILTER, HYDRAULIC ASSEMBLY

$

$

Not available

Gravely 05042200

FILTER, ELEMENT HIGH PRESSURE

$

$

Not available

9

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

11

Gravely 05038900

TUBE, FILTER TO O/C VLV

$

$

Not available

12

Gravely 07056100

ADPT,STR .50-14MX.88-14M

$13.99

$

Usually ships in 4-12 days

0

13

Gravely 07058500

ADPT,EL 90DEG .75-16MX1.06-12M

$74.99

$

Usually ships in 4-12 days

0

14

Gravely 07058600

ADPT,EL 90DEG .88-14MX1.06M-12

$

$

Not available

15

Gravely 07058400

ADPT,STR .75-16MX.88-14M

$

$

Not available

16

Gravely 05050550

BRACKET, FILTER

$

$

Not available

17

Gravely 05050650

RETAINER, FILTER BRACKET

$

$

Not available

18

Gravely 05975300

BLT-HEX M8-1.25X65 YWZC

$

$

Not available

19

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 07055300

ADPT, EL 90DEG .75-16MX.38-19M

$

$

Not available

22

Gravely 05038800

HOSE, HYD PMP TO FILTER

$

$

Not available

23

Gravely 05034500

PUMP

$

$

Not available

Gravely 55000800

SEALS, PUMP HIGH-TEMP

$

$

Not available

24

Gravely 07055400

ELBOW, 90 DEG

$

$

Not available

25

Gravely 06946000

CLAMP, HOSE

$

$

Not available

26

Gravely 05973200

SCR-SKH M8-1.25X30 PHOS.,OIL

$

$

Not available

27

Gravely 05038700

HOSE, HYDRAULIC TANK TO PUMP

Note: (004, 005)

$

$

Not available

Gravely 05049900

HOSE,HYD TANK TO PUMP - DIESEL

Note: (006)

$

$

Not available
