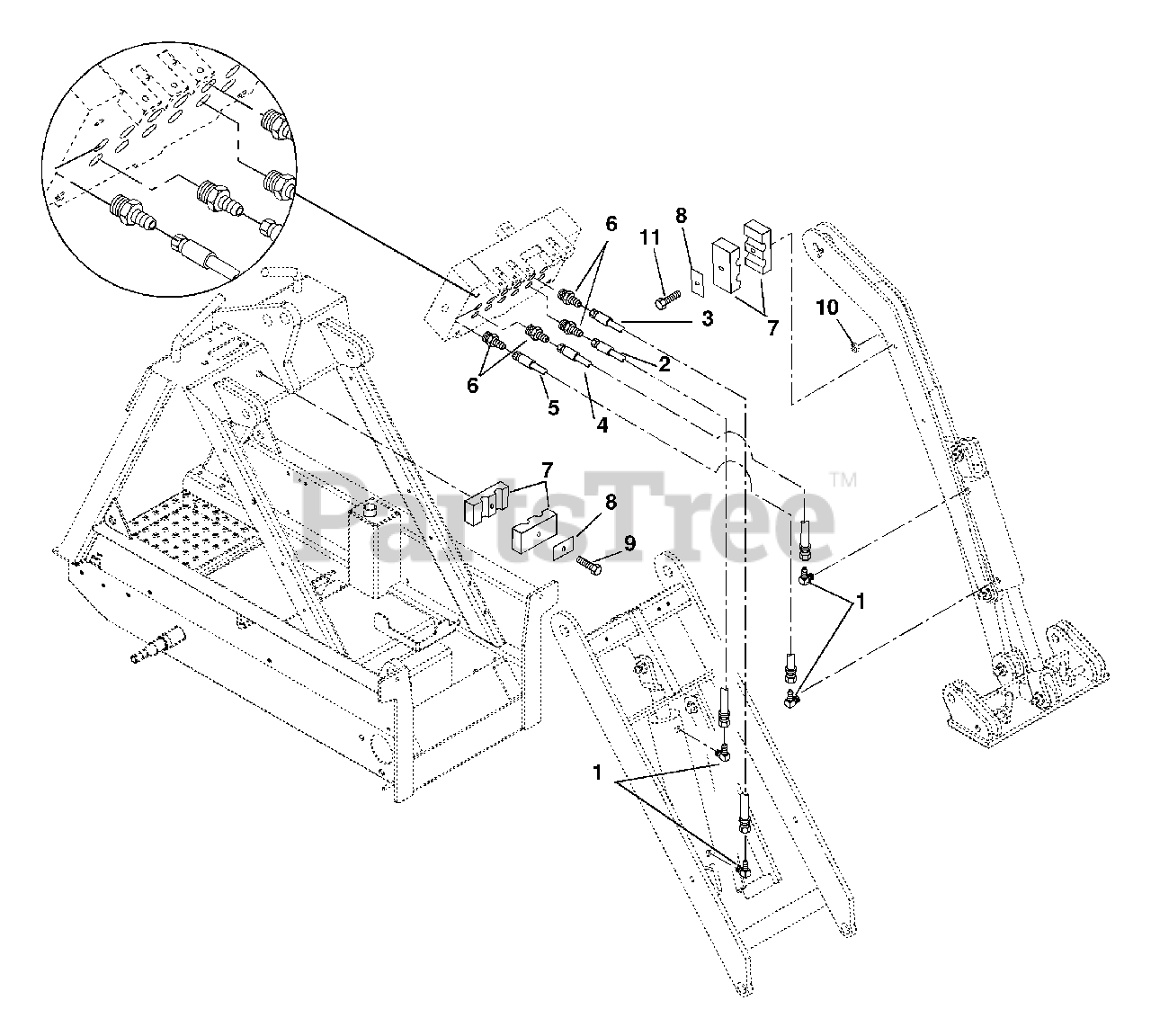

950006 (200 D) - Gravely Skidster with Trencher Valve, 20hp Kubota (SN: 000101 & Above) Valve Bank To Lift And Crowd Cylinders Parts Diagram

Skidster with Trencher Valve, 20hp Kubota

Valve Bank To Lift And Crowd Cylinders Parts Diagram

  • Title
1

Gravely 07051200

Adapter-Elbow 90 Degree .750-16M x .562-18M

$

$

Not available

2

Gravely 05039300

Hose-Hydraulic Valve Bank to Lift Cylinder

$

$

Not available

3

Gravely 05039400

Hose-Hydraulic Valve Bank to Lift Cylinder

$

$

Not available

4

Gravely 05040000

Hose-Hydraulic Valve Bank to Crowd Cylinder

$

$

Not available

5

Gravely 05039900

Hose-Hydraulic Valve Bank to Crowd Cylinder

$

$

Not available

6

Gravely 07056000

Adapter-Straight .500-14 x .562-18M

$13.99

$

Usually ships in 4-12 days

0

7

Gravely 06944900

Clamp-Dual Hose .375 I.D.

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 07059200

Plate-Cover

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05969600

Bolt-Hex M8 x 1.25 x 55

$

$

Not available

10

Gravely 06541700

Nut-Locking-Nylon M10-1.5
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

11

Gravely 05976300

Bolt, Hex M8-1.25 x 110

$

$

Not available
