950015 (Axis 200 DTS) - Gravely Axis Compact Utility Loader, 25hp Kubota (SN: 000101 & Above) Electrical Parts Diagram

Axis Compact Utility Loader, 25hp Kubota

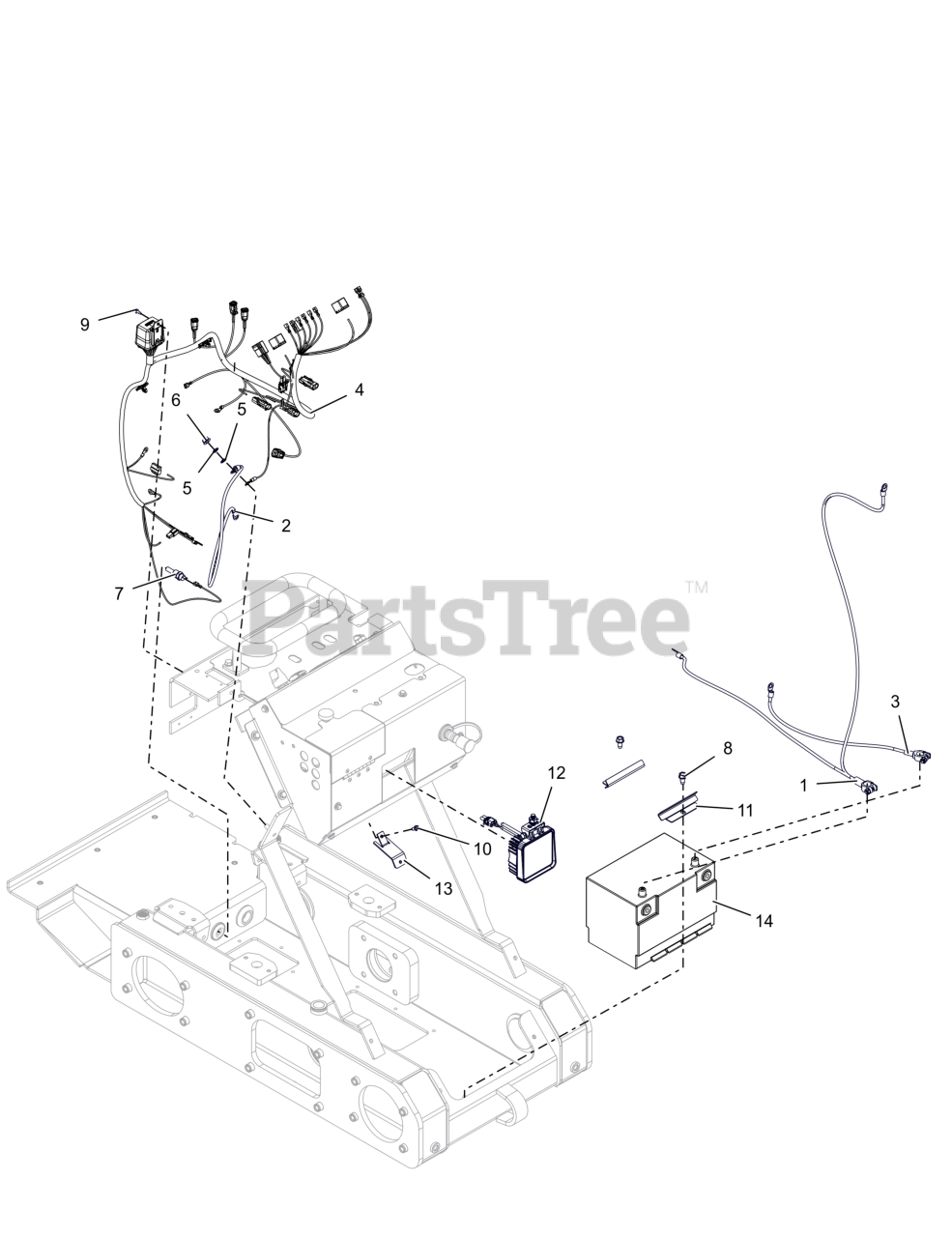

Electrical Parts Diagram

  • Title

1

Gravely 30133700

CABLE- POS 35.00 - 49.00

$138.99

$

Usually ships in 4-12 days

0

2

Gravely 30133800

CABLE- NEG 18.25 IN

$55.99

$

Usually ships in 4-12 days

0

3

Gravely 30133900

CABLE- NEG 32.75 IN

$82.99

$

Usually ships in 4-12 days

0

4

Gravely 30232100

HARNESS, MAIN - AXIS

$

$

Currently unavailable

5

Gravely 06300126

WSHR-LK-INT .38 ZCC

$5.49

$

Usually ships in 4-12 days

0

6

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07002035

SWITCH-TEMP .375" NPT

$

$

Currently unavailable

8

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$2.49

$

In Stock, Qty 20+

0

9

Gravely 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 07400135

SCR,TAP .25-20X.625 HWH ZCC

$3.49

$

In Stock, Qty 20+

0

11

Gravely 30108551

HOLDDOWN, BATTERY (BLACK)

$

$

Currently unavailable

12

Gravely 30117000

LIGHT, 4.3 X 5.0 LED

$

$

Currently unavailable

13

Gravely 30269351

BRKT, WIRING MOUNT (BLACK)

$

$

Currently unavailable

14

BATTERY, GROUP 34HC 685CCA

$

$

Not available
