950015 (Axis 200 DTS) - Gravely Axis Compact Utility Loader, 25hp Kubota (SN: 000101 & Above) Electrical - Control Panel Parts Diagram

Axis Compact Utility Loader, 25hp Kubota

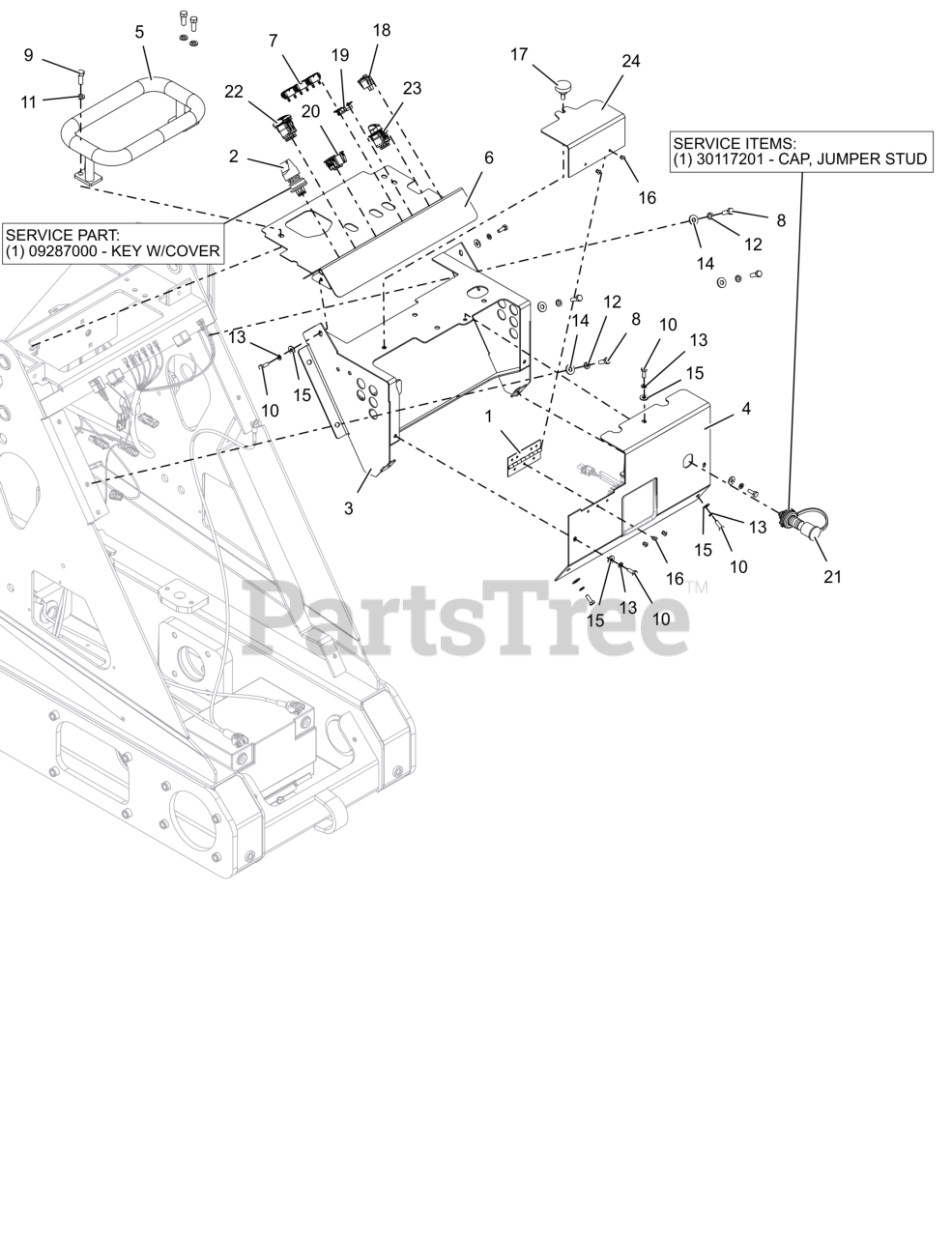

Electrical - Control Panel Parts Diagram

  • Title

1

Gravely 00170100

HINGE

$11.99

$

Usually ships in 4-12 days

0

2

Gravely 04331600

SWITCH, IGNITION

$47.99

$

In Stock, Qty 20+

0

2

Gravely 09287000

KEY, W/ SHIELD

Note: Component Service Part

$17.99

$

In Stock, Qty 20+

0

3

Gravely 30108651

MOUNT, FRONT (BLACK)

$

$

Currently unavailable

4

Gravely 30108751

COVER, FRONT (BLACK)

$

$

Currently unavailable

5

Gravely 30116100

HANDLE, PADDED

$

$

Currently unavailable

6

Gravely 30265451

PANEL, CONTROL (BLACK)

$

$

Currently unavailable

7

Gravely 05128700

LIGHT, INDICATOR (RED)

$7.99

$

In Stock, Qty 8

0

8

Gravely 05901701

BLT-HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05901711

BLT-HEX .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05901716

BLT- HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, only 3 left!

0

11

Gravely 06300116

WSHR-LK-REG .375X.094 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06300119

WSHR-LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06401009

WSHR-LK-REG .250X.062 ZCC

$0.99

$

In Stock, Qty 9

0

14

Gravely 06401023

WSHR-FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06401124

WSHR- FLT .312X.734X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 9

0

17

Gravely 07500523

KNOB- W/STUD 5/16" 18 X 3/4

$

$

Currently unavailable

18

Gravely 08973300

SWITCH, 2 POLE/ROCKER

$7.49

$

In Stock, Qty 6

0

19

Gravely 09362800

PLUG, SWITCH

$

$

Currently unavailable

20

Gravely 09497400

HOUR METER

$25.99

$

In Stock, Qty 14

0

21

Gravely 30117200

STUD, JUMPER, POS

$

$

Currently unavailable

21

Gravely 30117201

CAP, JUMPER STUD

Note: Component Service Part

$

$

Currently unavailable

22

Gravely 30265200

SWITCH, ROCKER - GP / UNLOCK

$

$

Currently unavailable

23

Gravely 30265300

SWITCH, ROTATING -3 POSITION

$

$

Currently unavailable

24

Gravely 55001800

COVER, ACCESS - W/SAFETY DECALS

$

$

Currently unavailable
