950015 (Axis 200 DTS) - Gravely Axis Compact Utility Loader, 25hp Kubota (SN: 000101 & Above) Frame Parts Diagram

Axis Compact Utility Loader, 25hp Kubota

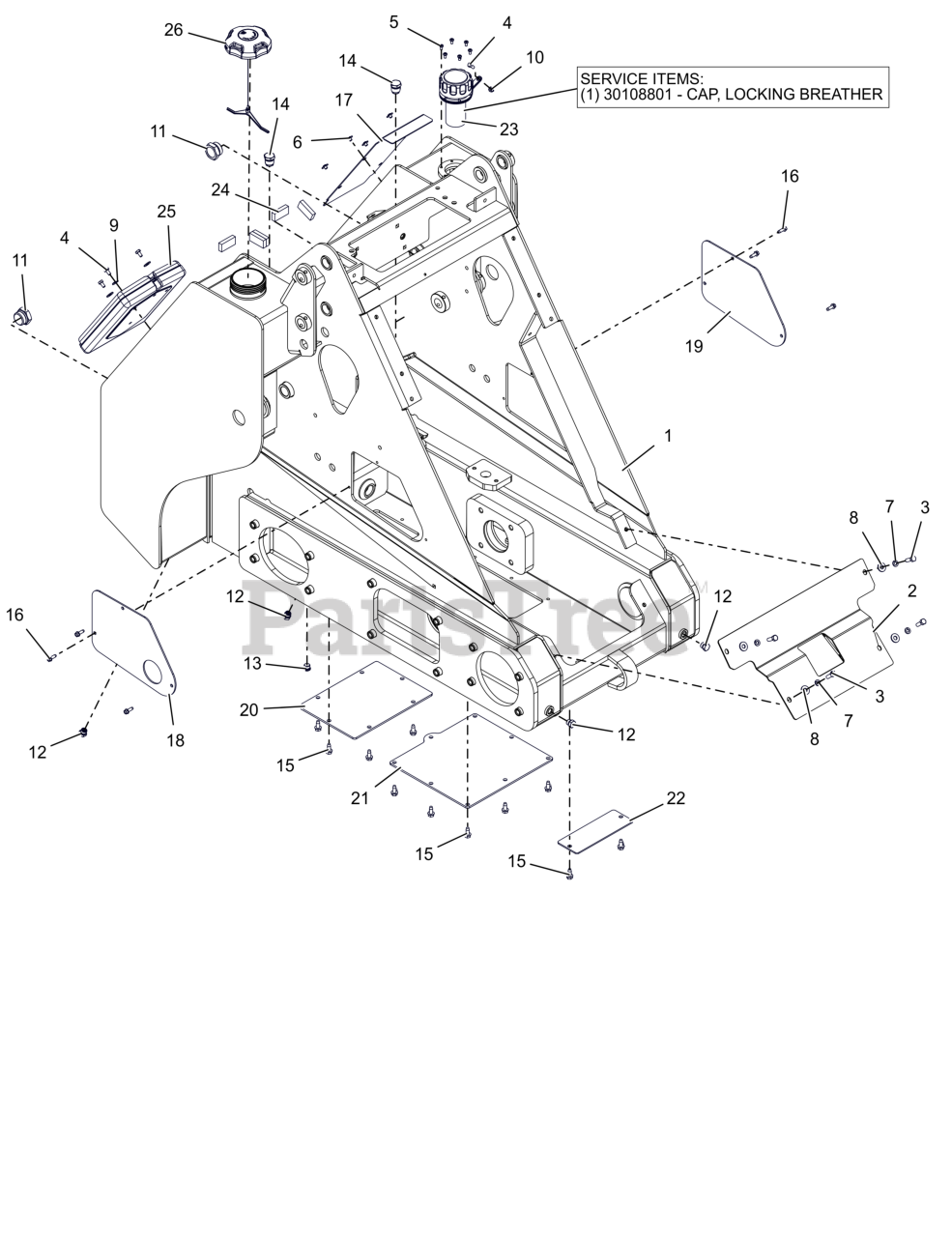

Frame Parts Diagram

  • Title

1

Gravely 30262953

FRAME, MAIN - AXIS DIESEL (RED)

$

$

Currently unavailable

2

Gravely 30117551

COVER, FRONT - BATTERY

$

$

Currently unavailable

3

Gravely 05901701

BLT-HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

4

Gravely 05901705

BLT-HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, only 3 left!

0

5

Gravely 05902137

SCR- MCH 10-32 X .375 PH ZCC

$

$

Currently unavailable

6

Gravely 06100317

SCR- MCH .25-20 X .50 SFBH SS

$

$

Currently unavailable

7

Gravely 06300119

WSHR-LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06401023

WSHR-FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06401124

WSHR- FLT .312X.734X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500832

NUT-NYL .25-20 G5 ZCC

$5.49

$

In Stock, Qty 12

0

11

Gravely 07002036

WINDOW- SIGHT - FLUID LEVEL

$

$

Currently unavailable

12

Gravely 07002121

PLUG- HEX - .56 ORB

$

$

Currently unavailable

13

Gravely 07002122

PLUG- HEX - CSK .56 ORB

$

$

Currently unavailable

14

Gravely 07002216

PLUG- VENT

$

$

Currently unavailable

15

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.99

$

In Stock, Qty 14

0

16

Gravely 07400131

SCR,TAP .25-20X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 30106253

COVER, FILTER (RED)

$

$

Currently unavailable

18

Gravely 30106453

COVER, SIDE RH (RED)

$

$

Currently unavailable

19

Gravely 30106553

COVER, SIDE - LH (RED)

$

$

Currently unavailable

20

Gravely 30106751

COVER, ACCESS REAR (BLACK)

$

$

Currently unavailable

21

Gravely 30106851

COVER, ACCESS CENTER (BLACK)

$

$

Currently unavailable

22

Gravely 30106951

COVER, ACCESS FRONT (BLACK)

$

$

Currently unavailable

23

Gravely 30108800

BREATHER, LOCKING

$

$

Currently unavailable

23

Gravely 30108801

CAP, LOCKING BREATHER

Note: Component Service Part

$

$

Currently unavailable

24

Gravely 30113600

MAGNET, HYD - OIL TANK

$

$

Currently unavailable

25

Gravely 30147200

BOX, MANUAL

$

$

Currently unavailable

26

Gravely 30177300

CAP, DIESEL FUEL 3.5"

$

$

Currently unavailable
