950015 (Axis 200 DTS) - Gravely Axis Compact Utility Loader, 25hp Kubota (SN: 000101 & Above) Hydraulics - Main Valve Parts Diagram

Axis Compact Utility Loader, 25hp Kubota

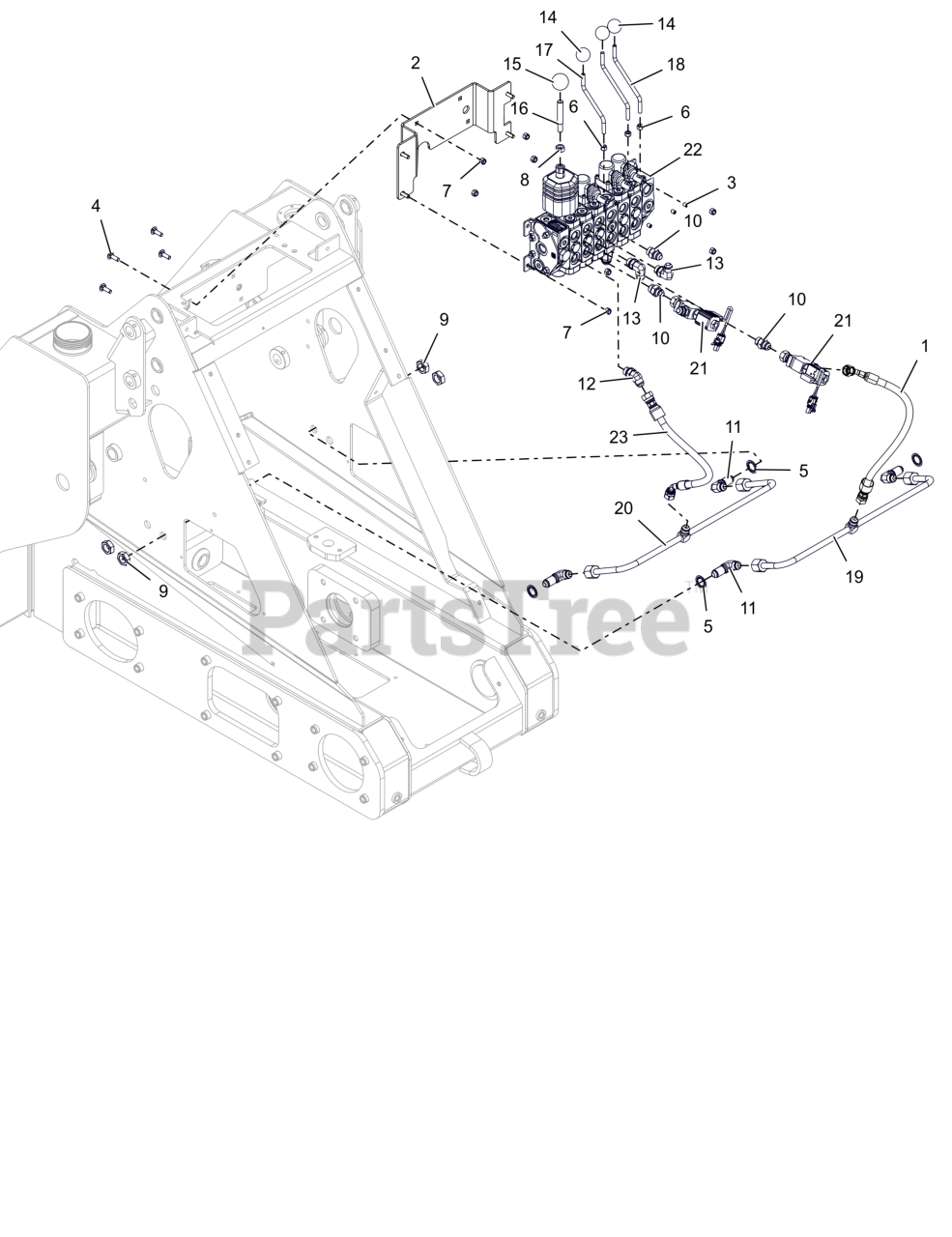

Hydraulics - Main Valve Parts Diagram

  • Title

1

Gravely 30102600

HOSE, HYD .375" X 17.75" LG

$

$

Currently unavailable

2

Gravely 30114351

BRKT, MOUNT - MAIN VALVE (BLACK)

$

$

Currently unavailable

3

Gravely 06000230

SCR- SET M8-1.25X10 SKHCUP

$

$

Currently unavailable

4

Gravely 06200231

BLT-RHSN .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06310800

WSHR-LK-INT .750 ZCC

$1.99

$

Usually ships in 4-12 days

0

6

Gravely 06500724

NUT- HEX M8-1.25 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 06500820

NUT-NYL .31-18 G5 ZCC

$1.49

$

In Stock, Qty 5

0

8

Gravely 06503500

NUT-HEX .44-14 ZCC

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06539900

NUT-JAM .75-16 ZCC

$3.99

$

In Stock, only 2 left!

0

10

Gravely 07002038

FTG- HYD-STR MO8-MJ8

$

$

Currently unavailable

11

Gravely 07002102

FTG- HYD-90(BH) MJ8-MJ8

$

$

Currently unavailable

12

Gravely 07002111

FTG- HYD-45 MO8-MJ8

$

$

Currently unavailable

13

Gravely 07002117

FTG- HYD-90 MO8-MJ8

$

$

Currently unavailable

14

Gravely 07500526

KNOB-BALL - .312" PRESS ON

$

$

Currently unavailable

15

Gravely 07500527

KNOB-BALL - .500" PRESS ON

$

$

Currently unavailable

16

Gravely 30113300

HANDLE, JOYSTICK

$

$

Currently unavailable

17

Gravely 30113400

LEVER, AUXILIARY

$

$

Currently unavailable

18

Gravely 30113500

LEVER, DRIVE

$

$

Currently unavailable

19

Gravely 30114100

TUBE, HYD - .50" X 25" LOA

$

$

Currently unavailable

20

Gravely 30114200

TUBE, HYD - .50" X .25" LOA

$

$

Currently unavailable

21

Gravely 30114800

VALVE, HYD PORT LOCK

$

$

Currently unavailable

22

Gravely 30263400

VALVE, CONTROL - MAIN HI/LOW

$

$

Currently unavailable

23

Gravely 30233600

HOSE, HYD 45FJIC-8-6 FJIC-8-6 15

$

$

Currently unavailable
