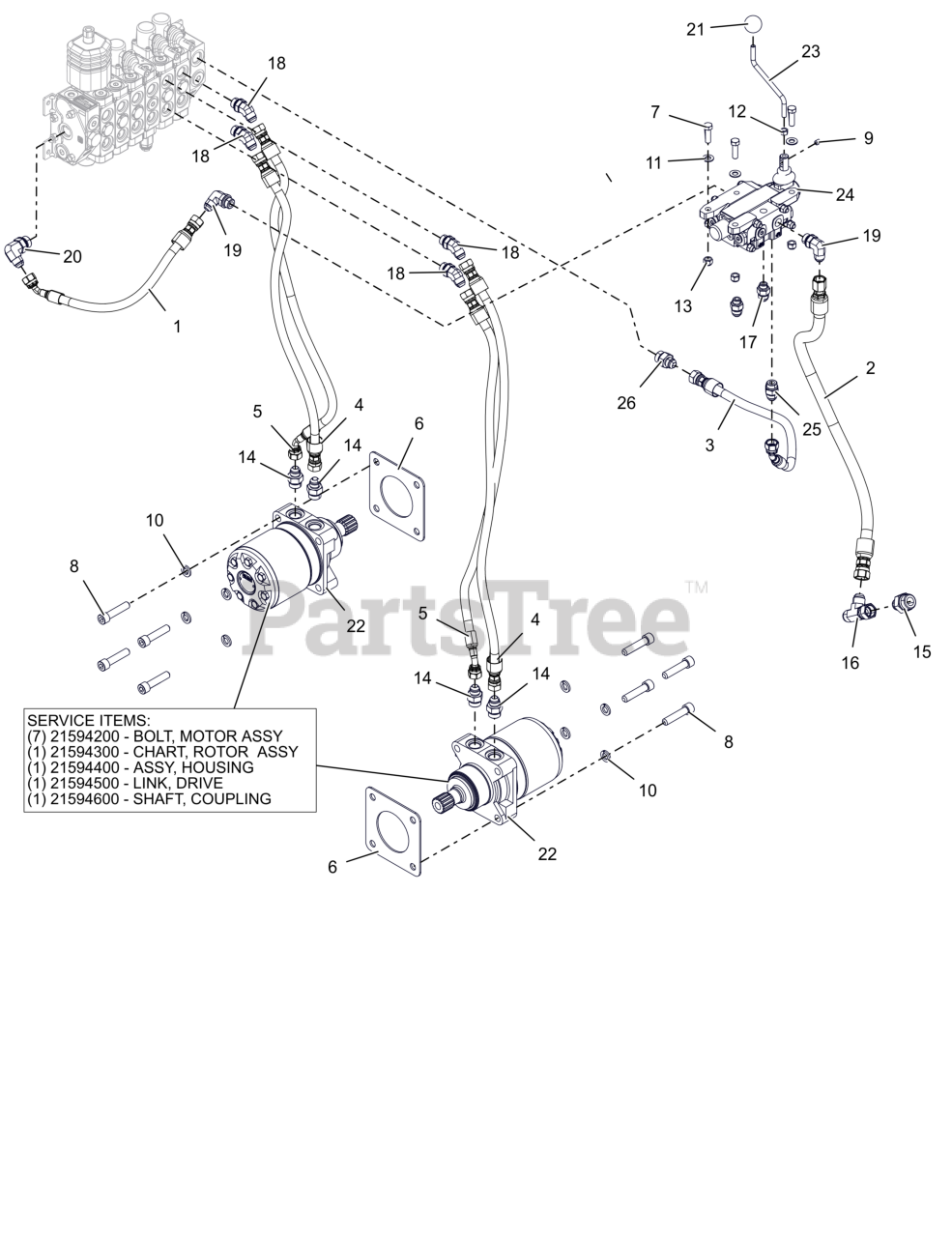

950015 (Axis 200 DTS) - Gravely Axis Compact Utility Loader, 25hp Kubota (SN: 000101 & Above) Hydraulics - Motors And Auxiliary Valve Parts Diagram

Axis Compact Utility Loader, 25hp Kubota

Hydraulics - Motors And Auxiliary Valve Parts Diagram

  • Title

1

Gravely 30102600

HOSE, HYD .375" X 17.75" LG

$

$

Currently unavailable

2

Gravely 30103000

HOSE, HYD .500" X 31.50" LG

$

$

Currently unavailable

3

Gravely 30233600

HOSE, HYD 45FJIC-8-6 FJIC-8-6 15

$

$

Currently unavailable

4

Gravely 30233700

HOSE, HYD FJIC-8-6 FJIC-8-6 32

$

$

Currently unavailable

5

Gravely 30233800

HOSE, HYD 45FJIC-8-6 FJIC-8-6 31

$

$

Currently unavailable

6

Gravely 05600527

GASKET- MOTOR HYD

$

$

Currently unavailable

7

Gravely 05901724

BLT- HEX .38-16X1.25 G5 ZCC

$1.99

$

In Stock, Qty 18

0

8

Gravely 05902136

SCR- SKH .500-13X2.250 ZCC

$

$

Currently unavailable

9

Gravely 06000230

SCR- SET M8-1.25X10 SKHCUP

$

$

Currently unavailable

10

Gravely 06300128

WSHR- LK-SAE .500 GR8 ZCC

$

$

Currently unavailable

11

Gravely 06401013

WSHR-FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500724

NUT- HEX M8-1.25 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

13

Gravely 06500831

NUT-NYL .38-16 G5 ZCC

$3.49

$

In Stock, Qty 20+

0

14

Gravely 07002039

FTG- HYD-STR MO10-MJ8

$

$

Currently unavailable

15

Gravely 07002101

FTG- HYD-STR MO12-MJ10

$

$

Currently unavailable

16

Gravely 07002103

FTG- HYD-TEE MJ10-MJ10-FJ10

$

$

Currently unavailable

17

Gravely 07002110

FTG- HYD-STR MJ8-MO6

$

$

Currently unavailable

18

Gravely 07002111

FTG- HYD-45 MO8-MJ8

$

$

Currently unavailable

19

Gravely 07002117

FTG- HYD-90 MO8-MJ8

$

$

Currently unavailable

20

Gravely 07002237

FTG- HYD-90 MO10-MJ8

$

$

Currently unavailable

21

Gravely 07500526

KNOB-BALL - .312" PRESS ON

$

$

Currently unavailable

22

Gravely 30101100

MOTOR, HYDRAULIC

$

$

Currently unavailable

22

Gravely 21594200

BOLT, MOTOR ASSY

Note: Component Service Part

$

$

Currently unavailable

22

Gravely 21594300

CHART, ROTOR ASSY

Note: Component Service Part

$

$

Currently unavailable

22

Gravely 21594400

ASSY, HOUSING

Note: Component Service Part

$

$

Currently unavailable

22

Gravely 21594500

LINK, DRIVE

Note: Component Service Part

$

$

Currently unavailable

22

Gravely 21594600

SHAFT, COUPLING

Note: Component Service Part

$

$

Currently unavailable

23

Gravely 30113400

LEVER, AUXILIARY

$

$

Currently unavailable

24

Gravely 30157000

VALVE, CONTROL - AUX

$

$

Currently unavailable

25

Gravely 07002038

FTG- HYD-STR MO8-MJ8

$

$

Currently unavailable

26

Gravely 07002039

FTG- HYD-STR MO10-MJ8

$

$

Currently unavailable
