950015 (Axis 200 DTS) - Gravely Axis Compact Utility Loader, 25hp Kubota (SN: 000101 & Above) Hydraulics - Pump And Combiner Parts Diagram

Axis Compact Utility Loader, 25hp Kubota

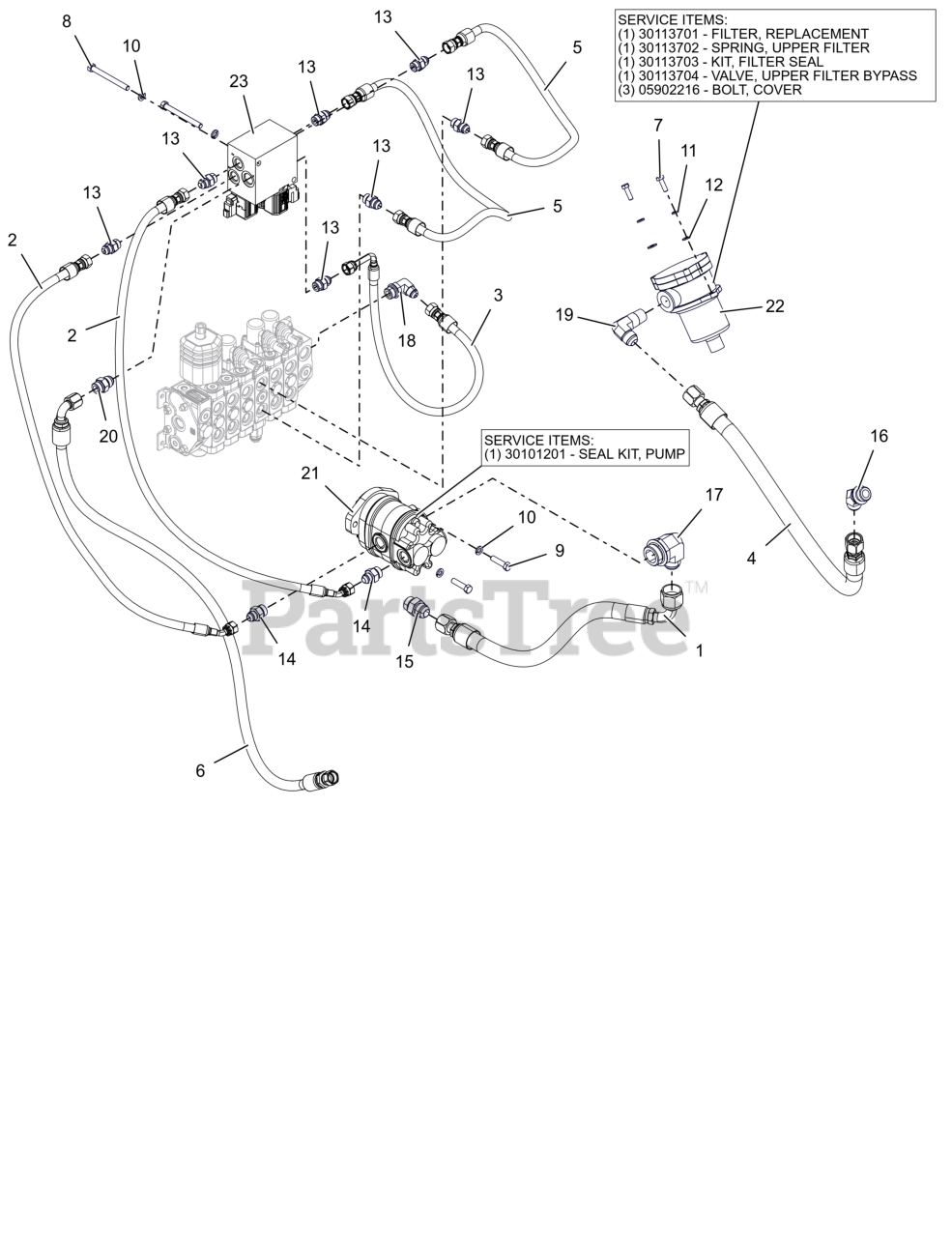

Hydraulics - Pump And Combiner Parts Diagram

  • Title

1

Gravely 30101800

HOSE, HYD .750" X 26.50" LG

$

$

Currently unavailable

2

Gravely 30102000

HOSE, HYD .375" X 58.25" LG

$

$

Currently unavailable

3

Gravely 30102100

HOSE, HYD .375" X 21.75" LG

$

$

Currently unavailable

4

Gravely 30103100

HOSE, HYD .750" X 44.75" LG

$

$

Currently unavailable

5

Gravely 30233700

HOSE, HYD FJIC-8-6 FJIC-8-6 32

$

$

Currently unavailable

6

Gravely 30267400

HOSE, HYD 90FJIC-10 FJIC-10 63

$

$

Currently unavailable

7

Gravely 05901701

BLT-HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05902039

BLT, HEX 0.375-16X3.75 GR8 ZCC

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05902104

BLT- HEX .38-16 X 1.50 G8 ZCC

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06300116

WSHR-LK-REG .375X.094 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06300119

WSHR-LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06401124

WSHR- FLT .312X.734X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07002038

FTG- HYD-STR MO8-MJ8

$

$

Currently unavailable

14

Gravely 07002039

FTG- HYD-STR MO10-MJ8

$

$

Currently unavailable

15

Gravely 07002108

FTG- HYD-STR MO12-MJ12

$

$

Currently unavailable

16

Gravely 07002115

FTG- HYD-45 MO12-MJ12

$

$

Currently unavailable

17

Gravely 07002125

FTG- HYD-90 MO20-MJ16

$

$

Currently unavailable

18

Gravely 07002237

FTG- HYD-90 MO10-MJ8

$

$

Currently unavailable

19

Gravely 07002409

FTG- HYD-90(L) MJ12-MN12

$

$

Currently unavailable

20

Gravely 07002411

FITTING, HYD MORB-10 MJIC-10

$

$

Currently unavailable

21

Gravely 30101200

PUMP, HYDRAULIC

$

$

Currently unavailable

21

Gravely 30101201

SEAL KIT, PUMP

Note: Component Service Part

$

$

Currently unavailable

22

Gravely 30113700

FILTER, HYD - INTANK

$

$

Currently unavailable

22

Gravely 30113701

FILTER- REPLACEMENT

Note: Component Service Part

$

$

Currently unavailable

22

Gravely 30113702

SPRING- UPPER FILTER

Note: Component Service Part

$

$

Currently unavailable

22

Gravely 30113703

KIT- FILTER SEAL

Note: Component Service Part

$

$

Currently unavailable

22

Gravely 30113704

VALVE- UPPER FILTER BYPASS

Note: Component Service Part

$

$

Currently unavailable

22

Gravely 05902216

BLT- HEX M6-1.0X20 SERRFLG ZCC

Note: Component Service Part

$

$

Currently unavailable

23

Gravely 30227300

VALVE, HI/LOW

$

$

Currently unavailable
