950015 (Axis 200 DTS) - Gravely Axis Compact Utility Loader, 25hp Kubota (SN: 000101 & Above) Parking Brake Parts Diagram

Axis Compact Utility Loader, 25hp Kubota

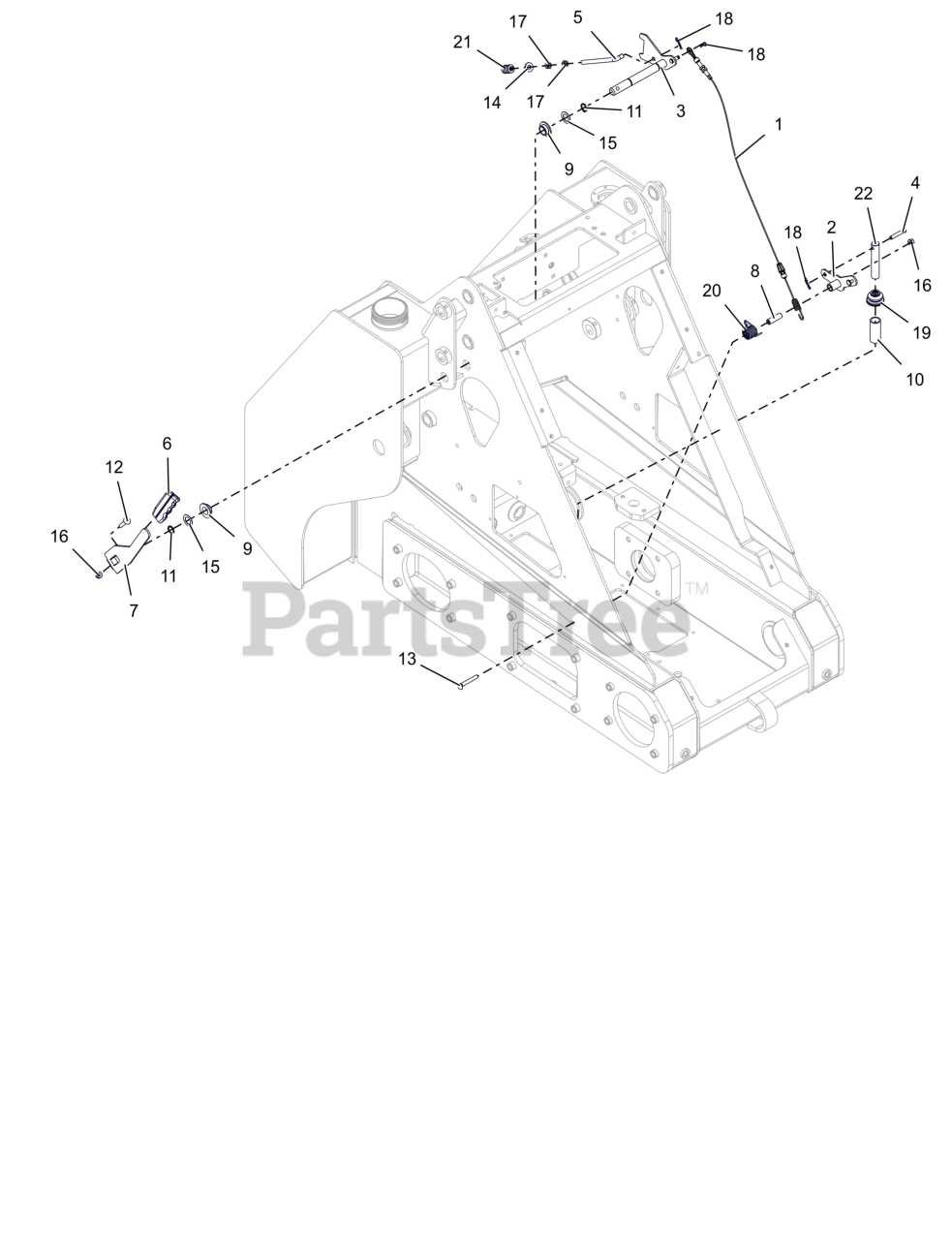

Parking Brake Parts Diagram

  • Title

1

Gravely 06900814

CABLE- BRAKE - AXIS

$

$

Currently unavailable

2

Gravely 30265751

WLDMT, LOWER PIVOT ARM (BLACK)

$

$

Currently unavailable

3

Gravely 30265851

WLDMT, BRAKE SHAFT (BLACK)

$

$

Currently unavailable

4

Gravely 04840500

PIN, CLEV .309X1.75 ZCC

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 04999100

ROD, OVER CENTER

$10.99

$

In Stock, only 2 left!

0

6

Gravely 05097200

GRIP, PARKING (GRAY)

$6.49

$

In Stock, only 1 left!

0

7

Gravely 05259951

HANDLE, PARK BRAKE (BLACK)

$44.99

$

In Stock, only 2 left!

0

8

Gravely 05501110

BSHG-SLV .325X.49X1.56

$10.99

$

In Stock, only 3 left!

0

9

Gravely 05501517

BSHG, FLANGED .762 X 1.48 X .44 IGLIDER

$2.99

$

In Stock, only 2 left!

0

10

Gravely 05501525

BUSHING- SLEEVE .75X1.00X2.38

$

$

Currently unavailable

11

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, only 1 left!

0

12

Gravely 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.99

$

In Stock, Qty 12

0

13

Gravely 06200408

BLT, RHSN .31-18X2.25 G5 ZCC

$3.49

$

In Stock, Qty 12

0

14

Gravely 06401023

WSHR-FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06401136

WSHR-FL-STL 0.76X1.225X0.032 ZCC

$3.99

$

In Stock, only 1 left!

0

16

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

19

Gravely 07500608

BOOT- BRAKE PIN

$

$

Currently unavailable

20

Gravely 08300820

SPRG- TORSION - BRAKE PIN LIFT

$

$

Currently unavailable

21

Gravely 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, only 2 left!

0

22

Gravely 30265900

BAR, BRAKE PIN

$

$

Currently unavailable
