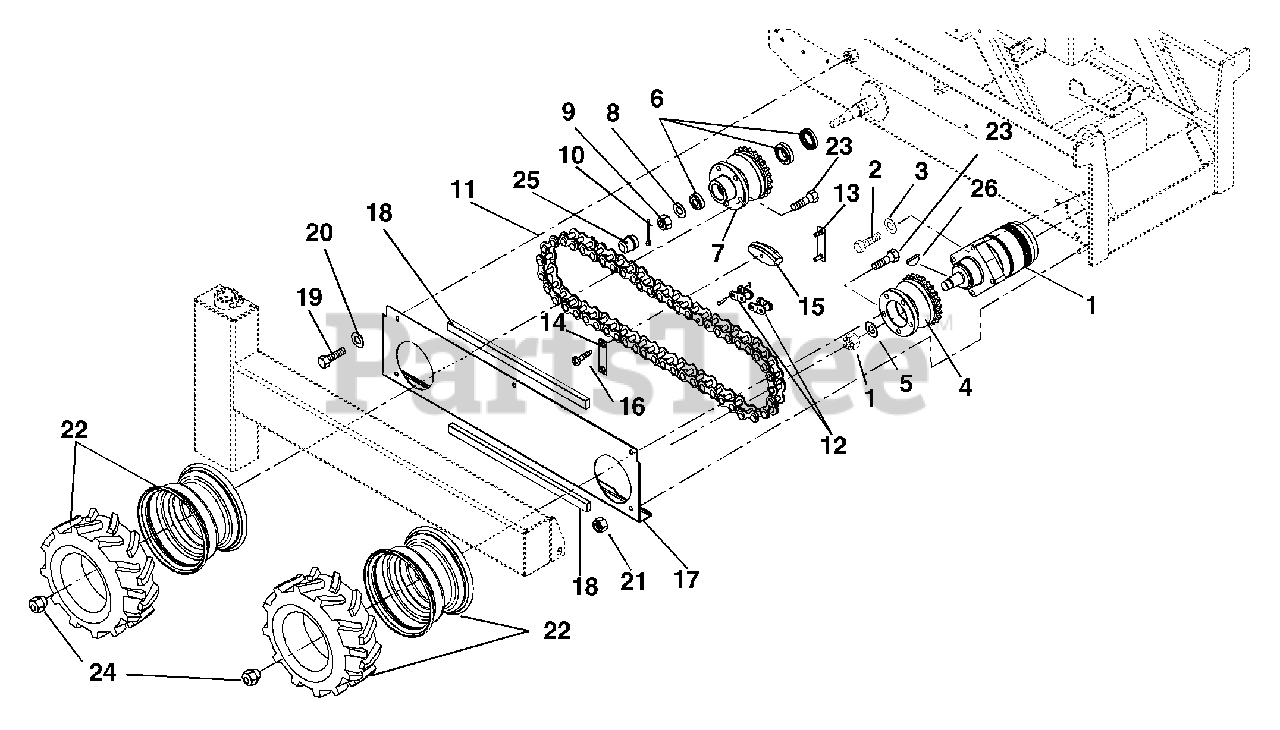

950504 (200 D) - Gravely Skidster with Trencher Valve, 20hp Kubota (SN: 000101 - 000199) Wheels And Drive Parts Diagram

Skidster with Trencher Valve, 20hp Kubota

Wheels And Drive Parts Diagram

  • Title

1

Gravely 05033400

MOTOR, WHEEL

$

$

Not available

Gravely 55000900

SEALS, HYDRAULIC MOTOR

$

$

Not available

Gravely 55001000

SEALS, HYDRALIC MOTOR HI-TEMP

$

$

Not available

2

Gravely 05972900

BLT-HEX M16-2X40 CL 10.9 YWZC

$

$

Not available

3

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05033700

HUB, FRONT DRIVE

$

$

Not available

5

Gravely 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 05033900

BEARING, WHEEL SET

$

$

Not available

7

Gravely 05033800

HUB, REAR IDLER

$

$

Not available

8

Gravely 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

9

Gravely 06538700

NUT-SL .75-16 YWZC

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 06712600

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05035400

CHAIN, 60 ROLLER

$

$

Not available

12

Gravely 05035600

LINK, MASTER HALF

$

$

Not available

13

Gravely 05049400

BRACKET, CHAIN TENSIONER

$

$

Not available

14

Gravely 05049401

BRACKET, RETAINER PLATE

$

$

Not available

15

Gravely 05049300

GUIDE, CHAIN TENSIONER

$

$

Not available

16

Gravely 05973000

SCR-SKH M8-1.25X25 FLH YWZC

$

$

Not available

17

Gravely 05049150

GUARD, CHAIN - RH

$

$

Not available

Gravely 05049050

GUARD, CHAIN - LH

$

$

Not available

18

Gravely 00916400

GASKET-FOAM W/ADHESIVE BACK
(Superseded to 02072000)

$

$

Not available

19

Gravely 05956300

BLT-HEX M8 X 1.25X16 YWZC

$

$

Not available

20

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06542400

NUT-LK-NYL M10-1.5 YWZC

$1.99

$

Usually ships in 4-12 days

0

22

Gravely 07151700

WHL, LUG ASS'Y R.H. 20X8.00-10

$

$

Not available

Gravely 07151800

WHL, LUG ASS'Y L.H. 20X8.00-10

$

$

Not available

Gravely 07154800

TIRE, LUG 20X8.00-10

$

$

Not available

Gravely 07152000

TUBE 20.5X8.00-10 W/STD VALVE

$

$

Not available

Gravely 07152200

RIM 10X6

$

$

Not available

23

Gravely 07004400

BLT-WHL-LUG .44-20X1.38 DANA

$

$

Not available

24

Gravely 039687

NUT-LUG .437-20 YWZC
(Superseded to 06511400)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 09079700

DUST CAP

$

$

Not available

26

Gravely 06607800

KEY-WDRF .31X1.00 SFT #B

$4.99

$

Usually ships in 4-12 days

0
