950504 (200 D) - Gravely Skidster with Trencher Valve, 20hp Kubota (SN: 000200 & Above) Battery And Electrical - Diesel Parts Diagram

Skidster with Trencher Valve, 20hp Kubota

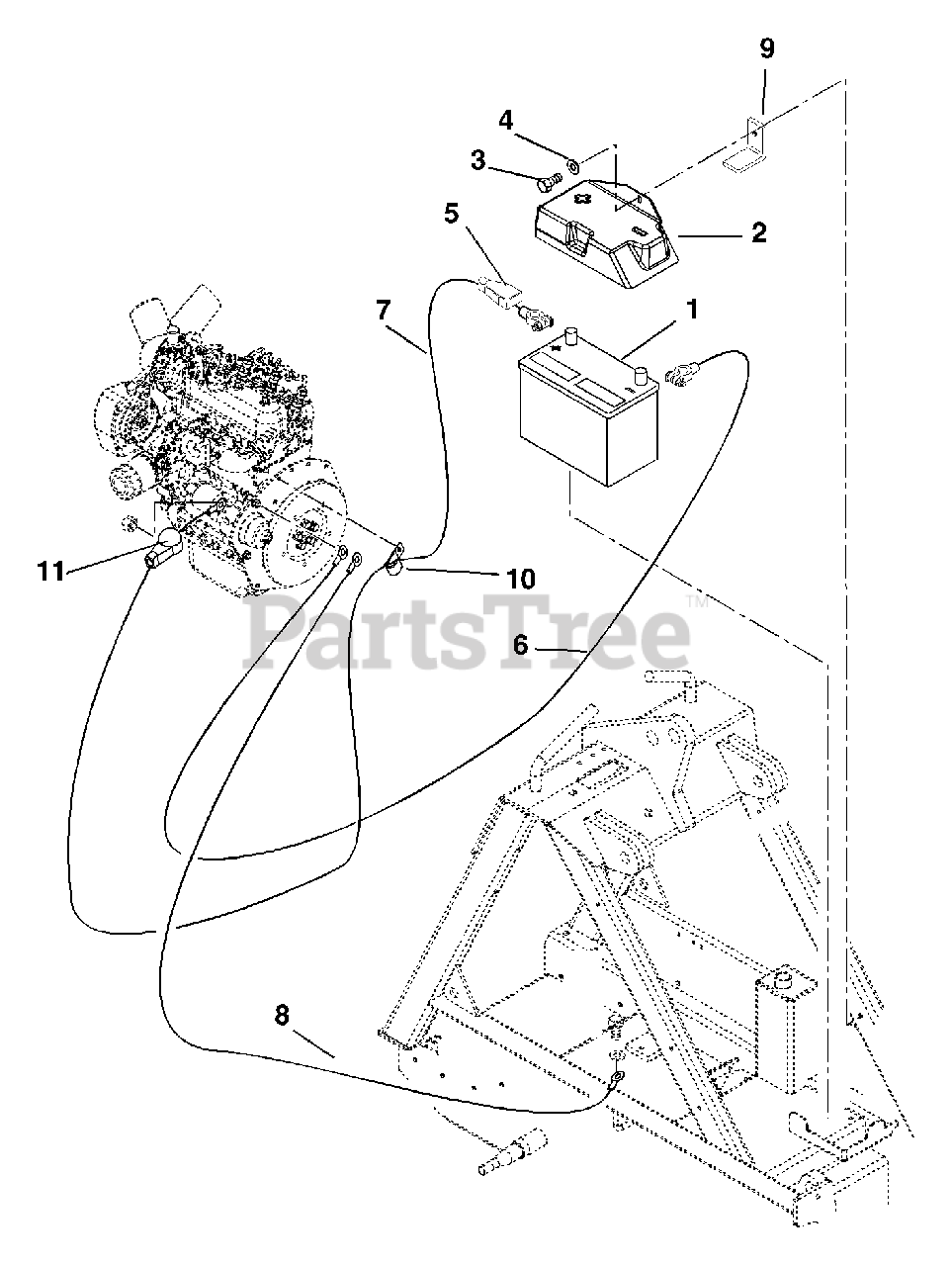

Battery And Electrical - Diesel Parts Diagram

  • Title

1

Gravely 05047500

BATTERY

$

$

Not available

2

Gravely 05042300

COVER, BATTERY

$

$

Not available

3

Gravely 05956300

BLT-HEX M8 X 1.25X16 YWZC

$

$

Not available

4

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 034466

CVR,BATTERY TERMINAL
(Superseded to 07523100)

$

$

Not available

6

Gravely 05042100

CABLE, BATTERY POSITIVE

$

$

Not available

7

Gravely 05042000

CABLE, BATTERY GROUND

$

$

Not available

8

Gravely 05041800

WIRE, GROUND

$

$

Not available

9

Gravely 05046151

BRACKET, BATTERY HOLDDOWN

$

$

Not available

10

Gravely 036518

J-CLAMP
(Superseded to 06909400)

$3.99

$

In Stock, only 4 left!

0

11

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$8.49

$

Usually ships in 4-12 days

0
