950504 (200 D) - Gravely Skidster with Trencher Valve, 20hp Kubota (SN: 000200 & Above) Hydraulic Oil Cooler Parts Diagram

Skidster with Trencher Valve, 20hp Kubota

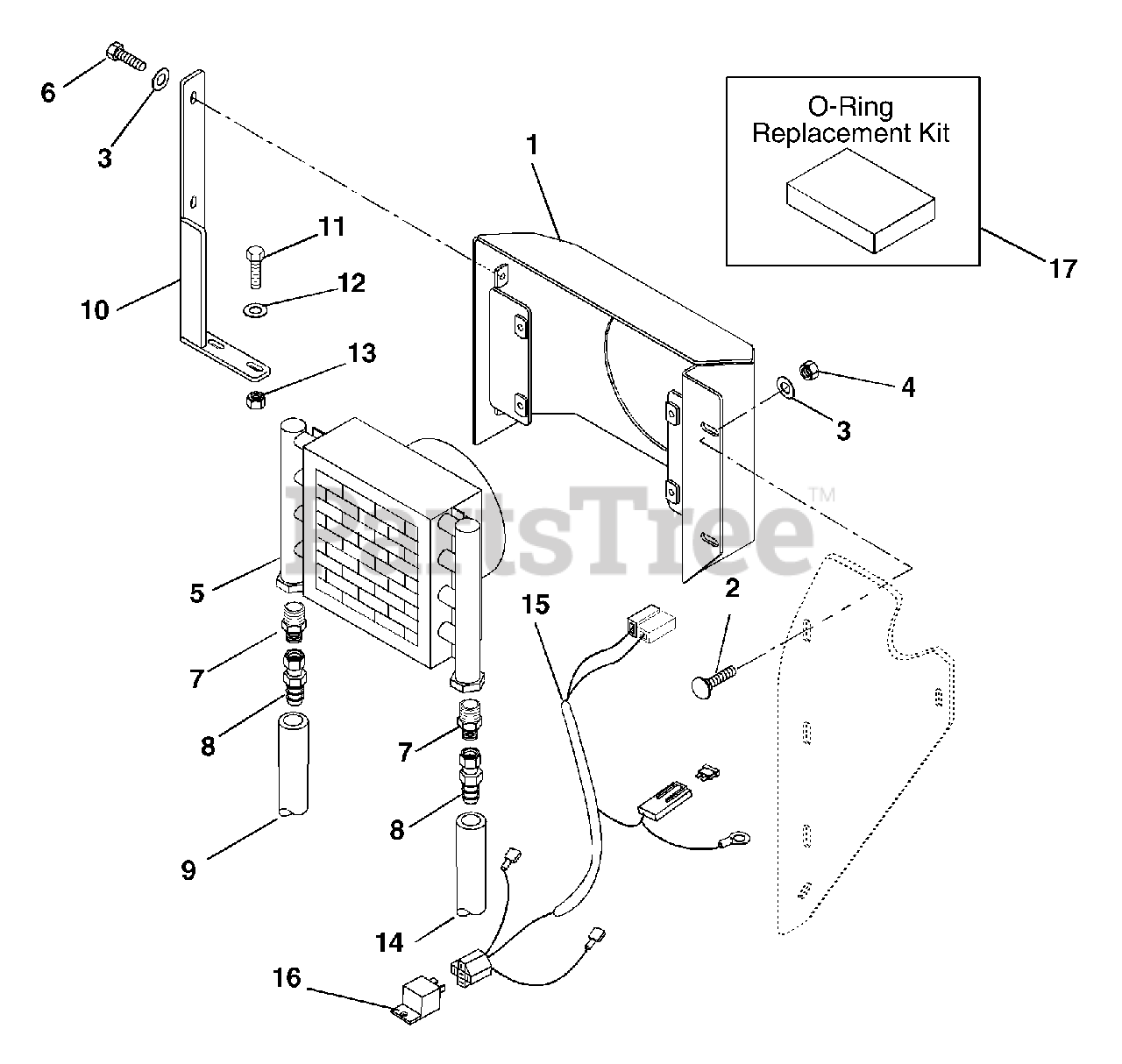

Hydraulic Oil Cooler Parts Diagram

  • Title

1

Gravely 05054650

WELDMENT, COOLER

Note: (Model 504)

$

$

Not available

Gravely 05056850

WELDMENT, COOLER

Note: (Model 005)

$

$

Not available

2

Gravely 06226100

BLT-RDHDSQNK M8-1.25X25 YWZC

$

$

Not available

3

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 05054700

COOLER, HYDRAULIC OIL

$

$

Not available

6

Gravely 05964900

BLT, HEX M8-1.25X25 GR8.8YWZC

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 07063300

FTG, HYD STR M10F-M12O

$

$

Not available

8

Gravely 07062000

FTG, HYD STR SWVL F10F-M10PL

$

$

Not available

9

Gravely 05054900

HOSE, HYD .63-44-.25K

$

$

Not available

10

Gravely 05055050

BRACKET, FR COOLER MT (DIESEL)

$

$

Not available

11

Gravely 05968200

BLT-HEX M8 X 1.25X30 GR5 YWZC

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 05054800

HOSE, HYD .63-27-.25K

$

$

Not available

15

Gravely 05056500

HARNESS, WIRE - COOLER

$

$

Not available

16

Gravely 03042800

RELAY
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

17

Gravely 00046900

O-RING KIT, SAE BUNA N

Note: (Assorted O-Rings for Hydraulic Components to fittings) SAE

$

$

Not available

Gravely 00047000

O-RING KIT, SEAL-LOK BUNA N

Note: (Assorted O-Rings for Flat Face Seal Fittings and Hoses)

$

$

Not available
