950504 (200 D) - Gravely Skidster with Trencher Valve, 20hp Kubota (SN: 000200 & Above) Valve Bank To Trencher And 4 N 1 Parts Diagram

Skidster with Trencher Valve, 20hp Kubota

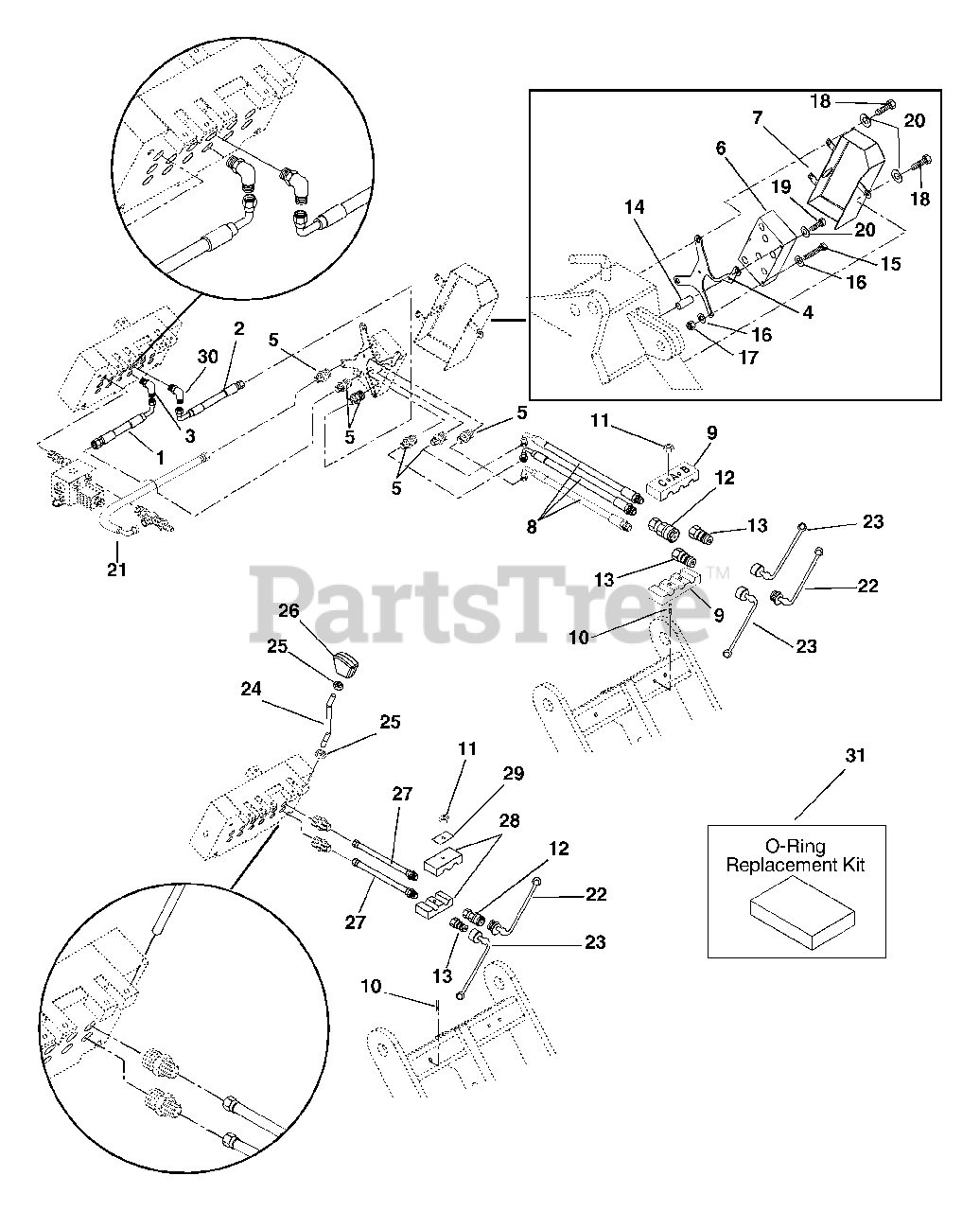

Valve Bank To Trencher And 4 N 1 Parts Diagram

  • Title

1

Gravely 05052400

HOSE, HYD .50-10-3K F8F9-F8F0

$

$

Not available

2

Gravely 05052300

HOSE, HYD .50-10-3K F8F9-F8F0

$

$

Not available

3

Gravely 07062900

FTG, HYD ELBOW M8F-M8O

$

$

Not available

4

Gravely 05044950

BRACKET, TRENCHING VALVE

$

$

Not available

5

Gravely 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

$9.99

$

Usually ships in 4-12 days

0

6

Gravely 05044700

VALVE, TRENCHER CONTROL

$

$

Not available

7

Gravely 05041551

GUARD, HEAT

$

$

Not available

8

Gravely 05051300

HOSE, HYD .50-23-3K F8F-M8O

$

$

Not available

9

Gravely 06945000

CLAMP,HYD-.500 I.D.:3 HOSE

$

$

Not available

10

Gravely 07008800

STUD, M8-1.25X3.62" YWZC

$

$

Not available

11

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 07060900

COUPLING, FEMALE QUICK - ORB

$

$

Not available

13

Gravely 07061000

COUPLING, MALE QUICK - ORB

$

$

Not available

14

Gravely 05044850

SPACER .344X.750X1.500

$

$

Not available

15

Gravely 05975200

BLT-HEX M6-1X65 YWZC

$

$

Not available

16

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06542600

NUT-LK-NYL M6-1 YWZC

$

$

Not available

18

Gravely 05973300

BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 05975300

BLT-HEX M8-1.25X65 YWZC

$

$

Not available

20

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 05052500

HOSE,HYD .50-27-.25K F8F0-F8F9

$

$

Not available

22

Gravely 07058900

PLUG, DUST .500

$

$

Not available

23

Gravely 07059000

CAP, DUST .500

$

$

Not available

24

Gravely 05054400

LEVER, 4N1 BUCKET CONTROL

$

$

Not available

25

Gravely 06542700

NUT, JAM M8-1.25 YWZC

$

$

Not available

26

Gravely 07533100

KNOB, CONTROL

$

$

Not available

27

Gravely 05051400

HOSE, HYD .50-28-3K M8O-F8F

$

$

Not available

28

Gravely 06943900

CLAMP, HOSE

$

$

Not available

29

Gravely 07059100

PLATE, COVER (CPT-3)

$3.49

$

Usually ships in 4-12 days

0

30

Gravely 07063000

FTG, HYD ELBOW LG M8F-M8O

$

$

Not available

31

Gravely 00046900

O-RING KIT, SAE BUNA N

Note: (Assorted O-Rings for Hydraulic Components to fittings) SAE

$

$

Not available

Gravely 00047000

O-RING KIT, SEAL-LOK BUNA N

Note: (Assorted O-Rings for Flat Face Seal Fittings and Hoses)

$

$

Not available
