951001 (Mammoth 850) - Ariens Stand-On Snow Removal Tractor, Kawasaki FX (SN: 000101 - 003999) Controls Parts Diagram

Stand-On Snow Removal Tractor, Kawasaki FX

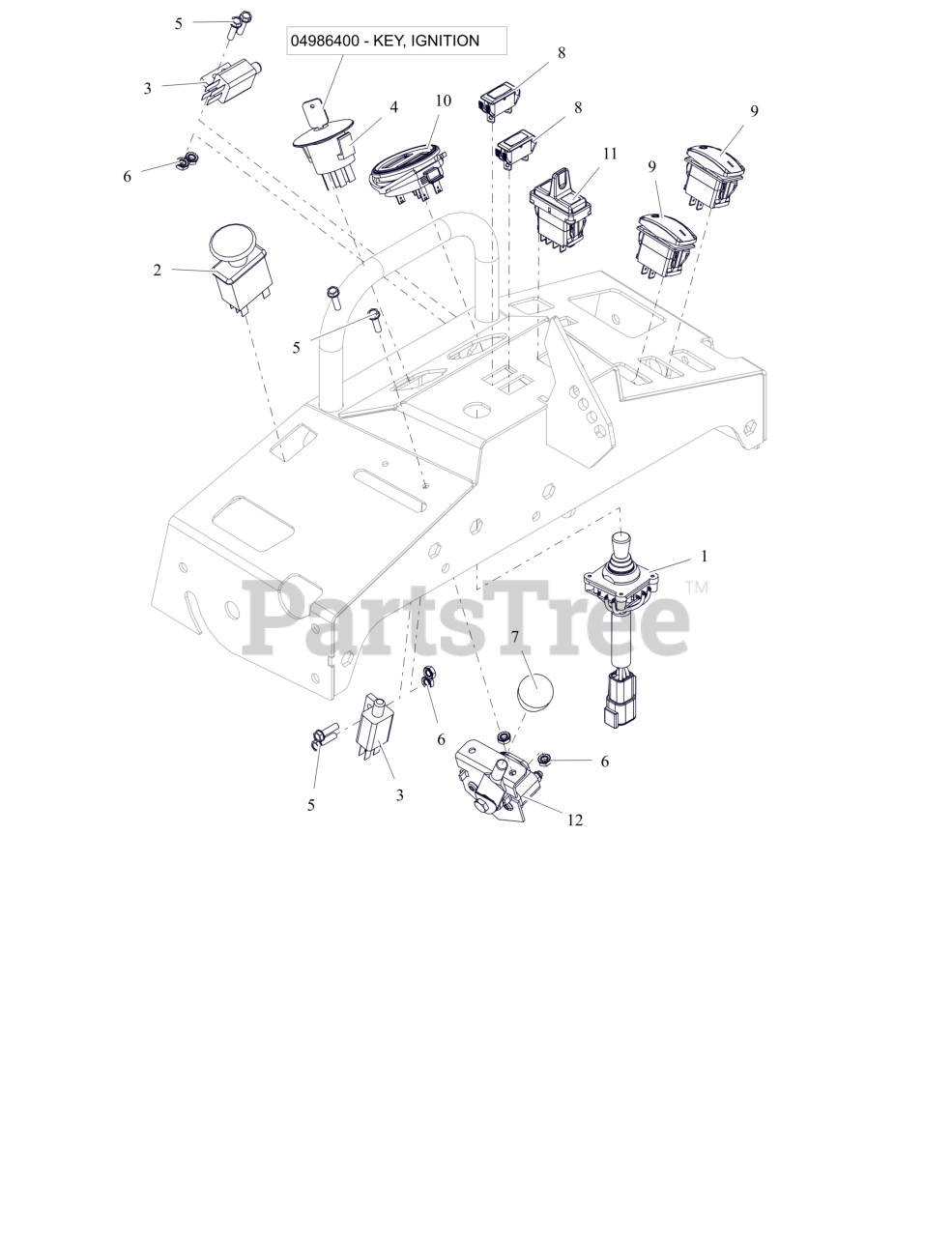

Controls Parts Diagram

  • Title

1

Ariens 09448100

ASSY- JOYSTICK (NO)

$206.99

$

Usually ships in 4-12 days

0

2

Ariens 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

3

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

4

Ariens 04974300

KEYSWITCH-IGNITION 4 POS

$24.99

$

In Stock, Qty 20+

0

4

Ariens 04986400

KEY, IGNITION

Note: Component Service Part

$9.49

$

In Stock, Qty 20+

0

5

Ariens 05901837

BLT, HWH #10-24X.75 ZCC

$2.49

$

In Stock, Qty 20+

0

6

Ariens 06500934

NUT, KEPS #10-24 ZCC

$3.99

$

Usually ships in 4-12 days

0

7

Ariens 07500132

KNOB-CONTROL-BLACK .38-16X.50

$12.99

$

In Stock, Qty 16

0

8

Ariens 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$7.99

$

In Stock, Qty 11

0

9

Ariens 09117600

SWITCH, ROCKER - BLANK ON/OFF

$54.99

$

Usually ships in 4-12 days

0

10

Ariens 09377100

METER, DUAL

$60.99

$

Usually ships in 4-12 days

0

11

Ariens 09464600

SWITCH- PADDLE ROCKER

$71.99

$

Usually ships in 4-12 days

0

12

Ariens 09464900

CONTROL- ELECTRIC THROTTLE

$268.99

$

Usually ships in 4-12 days

0
