951001 (Mammoth 850) - Ariens Stand-On Snow Removal Tractor, Kawasaki FX (SN: 000101 - 003999) Main Frame Parts Diagram

Stand-On Snow Removal Tractor, Kawasaki FX

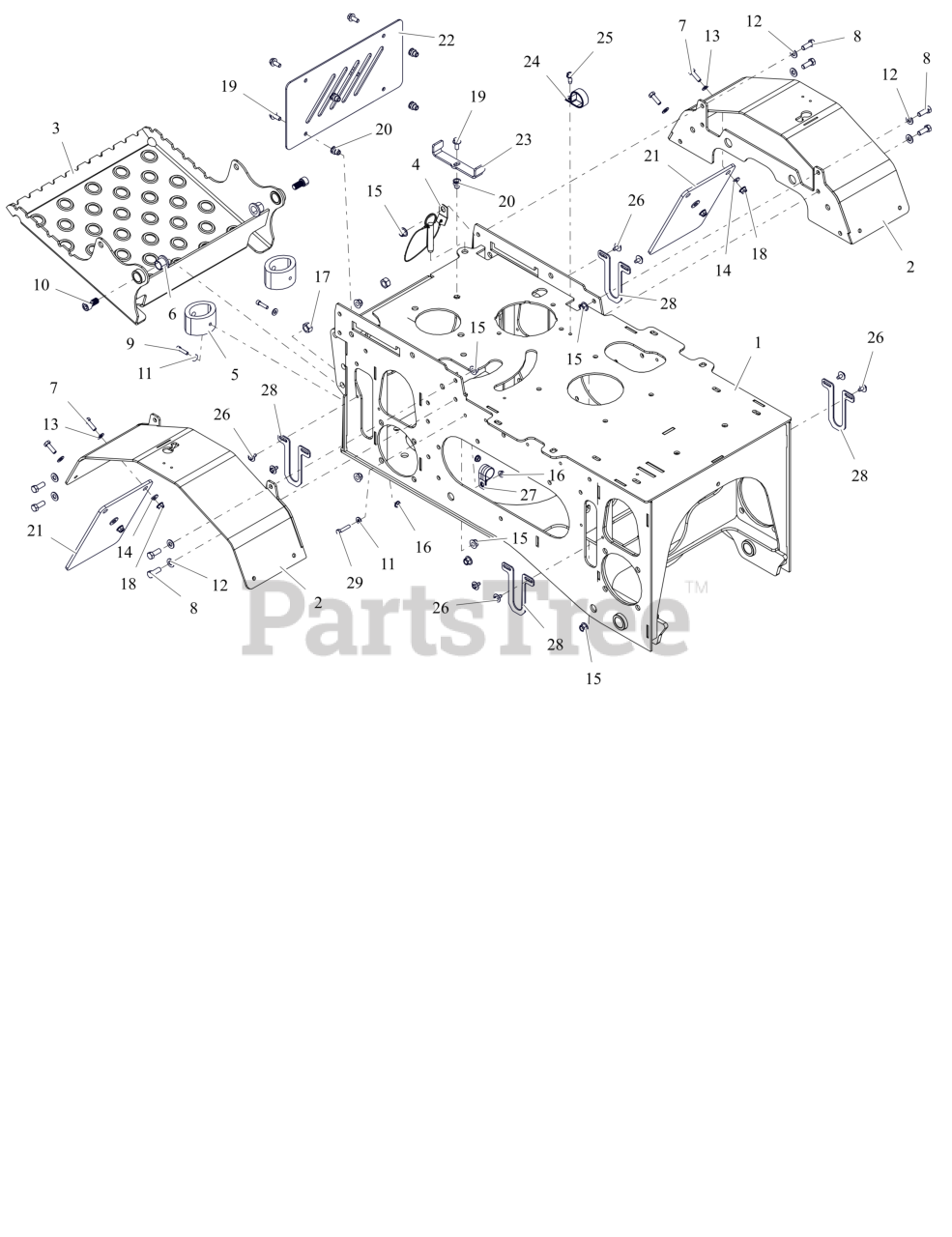

Main Frame Parts Diagram

  • Title

1

Ariens 09397100

WLDMT, FRAME

$

$

Not available

2

Ariens 09397200

WLDMT- FENDER

$105.99

$

Usually ships in 4-12 days

0

3

Ariens 09397900

WLDMT- OPERATOR PLATFORM

$64.99

$

Usually ships in 4-12 days

0

4

Ariens 09456900

PIN, QUICK RELEASE,LANYARD,CLIP

$19.99

$

Usually ships in 4-12 days

0

5

Ariens 05255200

BUMPER, PLATFORM

$34.99

$

In Stock, only 4 left!

0

6

Ariens 05501501

BSHG- FLANGE BRONZE

$11.99

$

Usually ships in 4-12 days

0

7

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

8

Ariens 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 10

0

9

Ariens 05902033

SCR, SKH .25-20X1.00

$1.99

$

Usually ships in 4-12 days

0

10

Ariens 06100309

BOLT- SHCS 1/2-13 X 1.00"

$6.49

$

Usually ships in 4-12 days

0

11

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 6

0

12

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 5

0

17

Ariens 06500827

NUT,LK-CTR .50-13 GA ZCC

$4.99

$

In Stock, Qty 20+

0

18

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.99

$

In Stock, Qty 20+

0

19

Ariens 07001820

BLT- SERHFWH .312-18X.75 ZCC

$2.49

$

In Stock, only 3 left!

0

20

Ariens 07001936

RVT-NUT HEX 5/16-18 LONG

$2.99

$

Usually ships in 4-12 days

0

21

Ariens 09409300

FLAP- FENDER - RUBBER

$30.99

$

Usually ships in 4-12 days

0

22

Ariens 09456500

PANEL- ACCESS

$52.99

$

Usually ships in 4-12 days

0

23

Ariens 09456800

PLATE- BATTERY TIE DOWN

$23.99

$

Usually ships in 4-12 days

0

24

Ariens 07002002

CLAMP- CUSHIONED 1-3/8 X 11/32

$6.49

$

Usually ships in 4-12 days

0

25

Ariens 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.99

$

In Stock, Qty 18

0

26

Ariens 07400138

SCR, TAP .25-20X.50 LG HWH ZCC

$1.99

$

In Stock, only 2 left!

0

27

Ariens 09465400

CLIP- P-STYLE / 1.00 ID

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 09665700

PLATE, SPRG RETAINER

$

$

Currently unavailable

29

Ariens 05901738

BLT, HEX .25-20X1.25 G5 ZCC

$2.49

$

In Stock, only 2 left!

0
