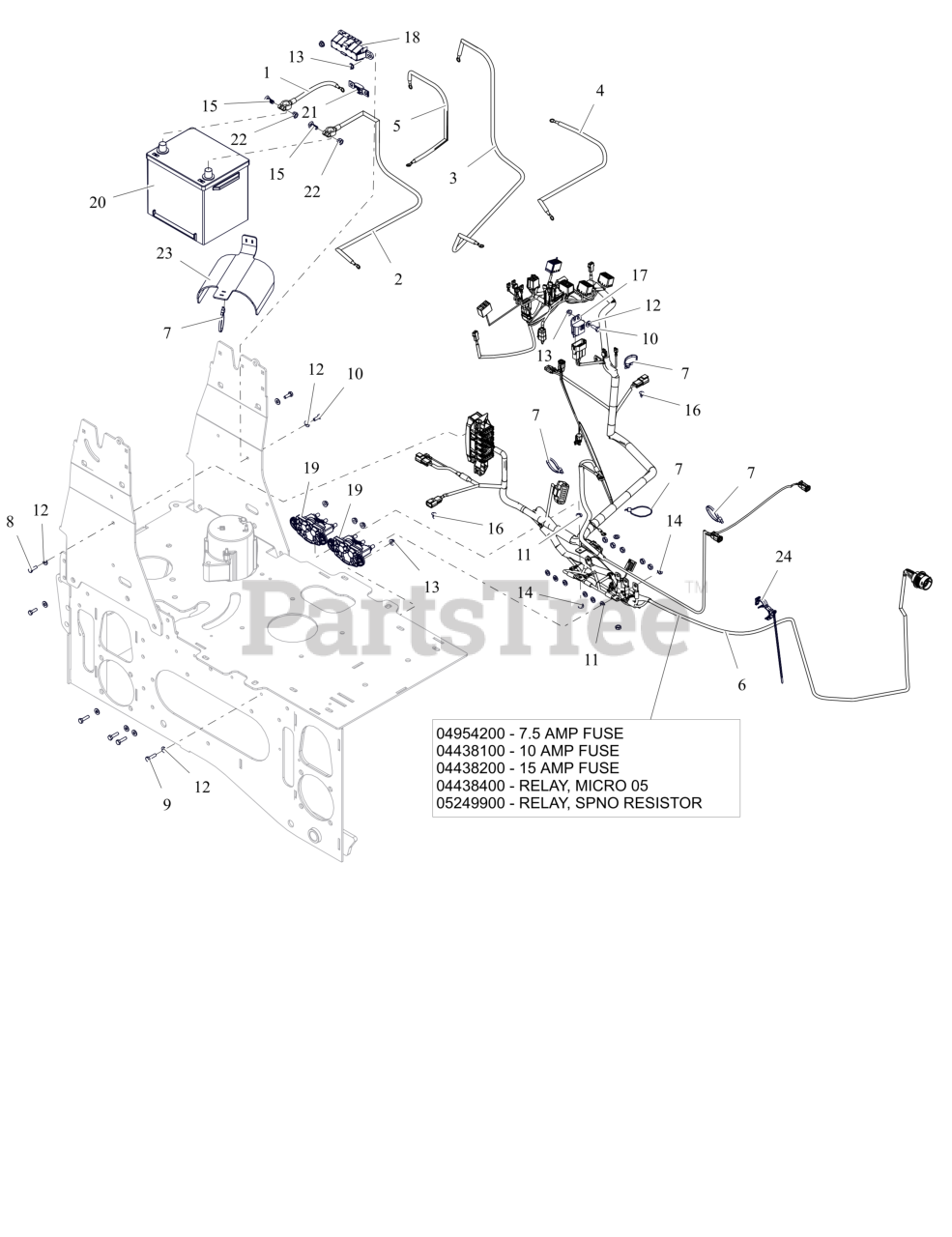

951001 (Mammoth 850) - Ariens Stand-On Snow Removal Tractor, Kawasaki FX (SN: 000101 & Above) Electrical Parts Diagram

Stand-On Snow Removal Tractor, Kawasaki FX

Electrical Parts Diagram

  • Title

1

Ariens 09444900

CABLE- BATTERY (POS)

$40.99

$

Usually ships in 4-12 days

0

2

Ariens 09445000

CABLE- BATTERY (NEG)

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 09445300

CABLE- TRACTOR-ENGINE

$59.99

$

Usually ships in 4-12 days

0

4

Ariens 09445500

CABLE- ALT (GROUND)

$45.99

$

Usually ships in 4-12 days

0

5

Ariens 09446000

CABLE- ALT (PWR)

$47.99

$

Usually ships in 4-12 days

0

6

Ariens 09444600

HARNESS- TRACTOR-MAIN

$905.99

$

Usually ships in 4-12 days

0

6

Ariens 04954200

FUSE, 7.5 AMP MINI-ATC

Note: Component Service Part

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 04438100

FUSE,10 AMP MINI-ATC

Note: Component Service Part

$2.99

$

Usually ships in 4-12 days

0

6

Ariens 04438200

Fuse, 15 AMP MINI-ATC

Note: Component Service Part

$11.99

$

Usually ships in 4-12 days

0

6

Ariens 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: Component Service Part

$17.99

$

In Stock, only 1 left!

0

6

Ariens 05249900

RELAY,SPNO,SEALED,ISO280,RESIS

Note: Component Service Part

$14.99

$

Usually ships in 4-12 days

0

7

Ariens 04003800

TIE WRAP

$

$

Not available

8

Ariens 05901610

BLT,HEX M6-1X20 G8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 05901639

BLT,HEX .25-20X1.00 G5 ZCC

$1.49

$

In Stock, Qty 7

0

10

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 7

0

11

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 14

0

13

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 11

0

14

Ariens 06500923

NUT-JAM .312-24 ZCC

$0.99

$

In Stock, Qty 8

0

15

Ariens 07001933

BOLT- SQ HEAD; BATT TERM

$1.49

$

Usually ships in 4-12 days

0

16

Ariens 07002009

RVT-PUSH W/RIBBED SHANK

$1.99

$

Usually ships in 4-12 days

0

17

Ariens 09044200

MODULE,INTERLOCK,DELAY, 1801

$71.99

$

In Stock, only 1 left!

0

18

Ariens 09464100

HOLDER- FUSE MEGA (100A)

$40.99

$

Usually ships in 4-12 days

0

19

Ariens 09464700

RELAY- ACTUATOR REV POLARITY

$168.99

$

Usually ships in 4-12 days

0

20

Ariens N/A

BATTERY, GROUP 26, 540CCA

$

$

Currently unavailable

21

Ariens 09465800

FUSE- MAIN - 100A MEGA

$17.99

$

Usually ships in 4-12 days

0

22

Ariens 09466200

NUT- BATTERY COLLAR NUT

$1.49

$

Usually ships in 4-12 days

0

23

Ariens 09470500

SHIELD, RUBBER ALTERNATOR

$

$

Currently unavailable

24

Ariens 09491200

CLIP- HARNESS CABLE TIE

$3.49

$
