951001 (Mammoth 850) - Ariens Stand-On Snow Removal Tractor, Kawasaki FX (SN: 000101 & Above) Parking Brake Parts Diagram

Stand-On Snow Removal Tractor, Kawasaki FX

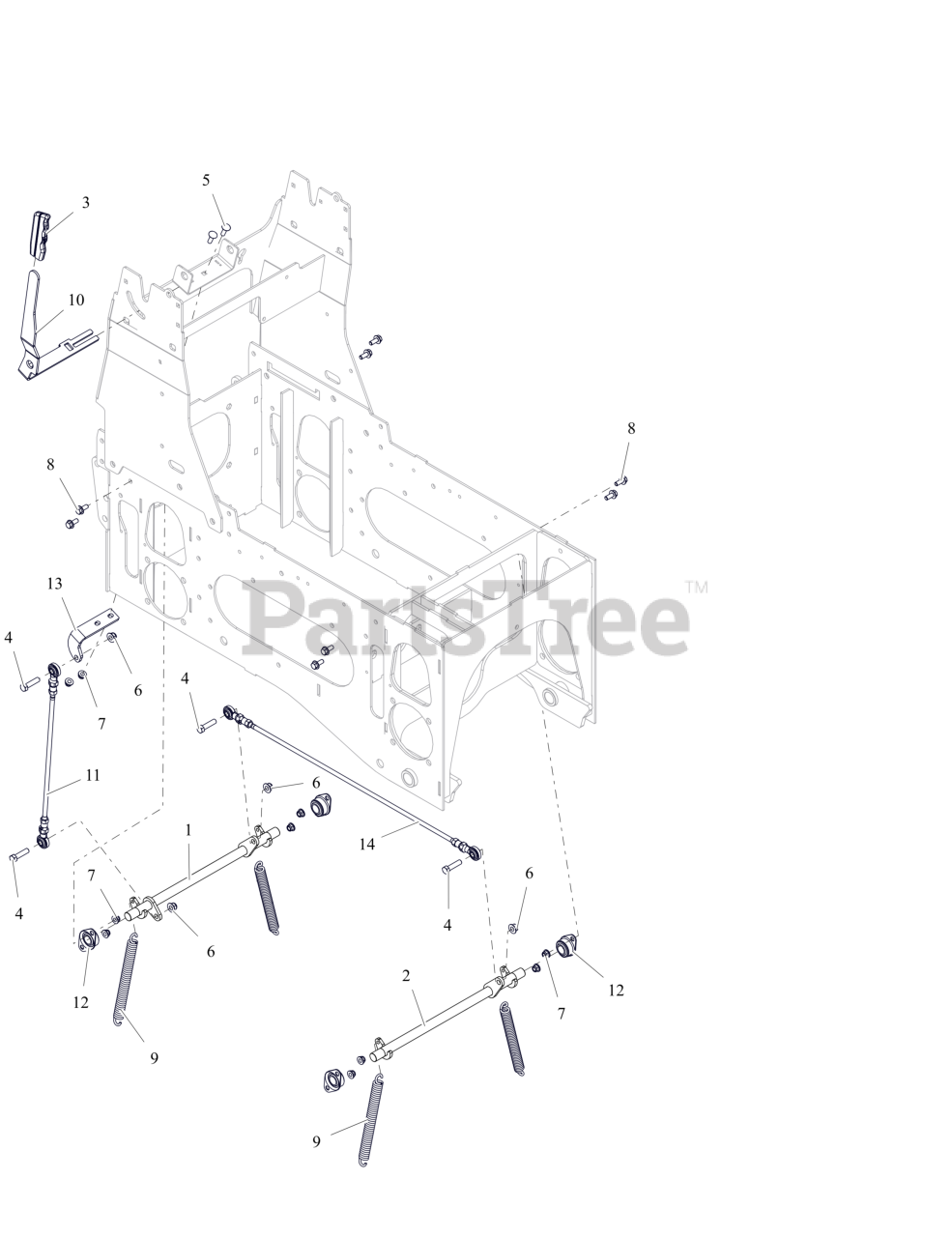

Parking Brake Parts Diagram

  • Title

1

Ariens 09398200

WLDMT- BRAKE SHAFT-REAR

$58.99

$

Usually ships in 4-12 days

0

2

Ariens 09398300

WLDMT- BRAKE SHAFT-FRONT

$46.99

$

Usually ships in 4-12 days

0

3

Ariens 05097200

GRIP, PARKING BRAKE (GREY)

$6.49

$

Usually ships in 4-12 days

0

4

Ariens 05901928

BLT, HEX .38-16X1.50 G5 ZCC

$1.99

$

In Stock, Qty 10

0

5

Ariens 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

6

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

7

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.99

$

In Stock, Qty 20+

0

8

Ariens 07001820

BLT- SERHFWH .312-18X.75 ZCC

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 08300725

SPRG-EXT HOOKS 90DEG-SS-7.38"

$15.99

$

Usually ships in 4-12 days

0

10

Ariens 09452200

PLATE, BRAKE LEVER

$30.99

$

Usually ships in 0 days

0

11

Ariens 09457200

LINKAGE- UPPER BRAKE- 17-9/16"

$35.99

$

Usually ships in 4-12 days

0

12

Ariens 09457300

ASM- SIDE FLANGE BRG. 3/4"

$23.99

$

Usually ships in 4-12 days

0

13

Ariens 09457400

BRKT- OVER CENTER

$23.99

$

Usually ships in 4-12 days

0

14

Ariens 09457600

LINKAGE- LOWER BRAKE-28"

$35.99

$

Usually ships in 4-12 days

0
