951001 (Mammoth 850) - Ariens Stand-On Snow Removal Tractor, Kawasaki FX (SN: 000101 & Above) PTO & Drive Parts Diagram

Stand-On Snow Removal Tractor, Kawasaki FX

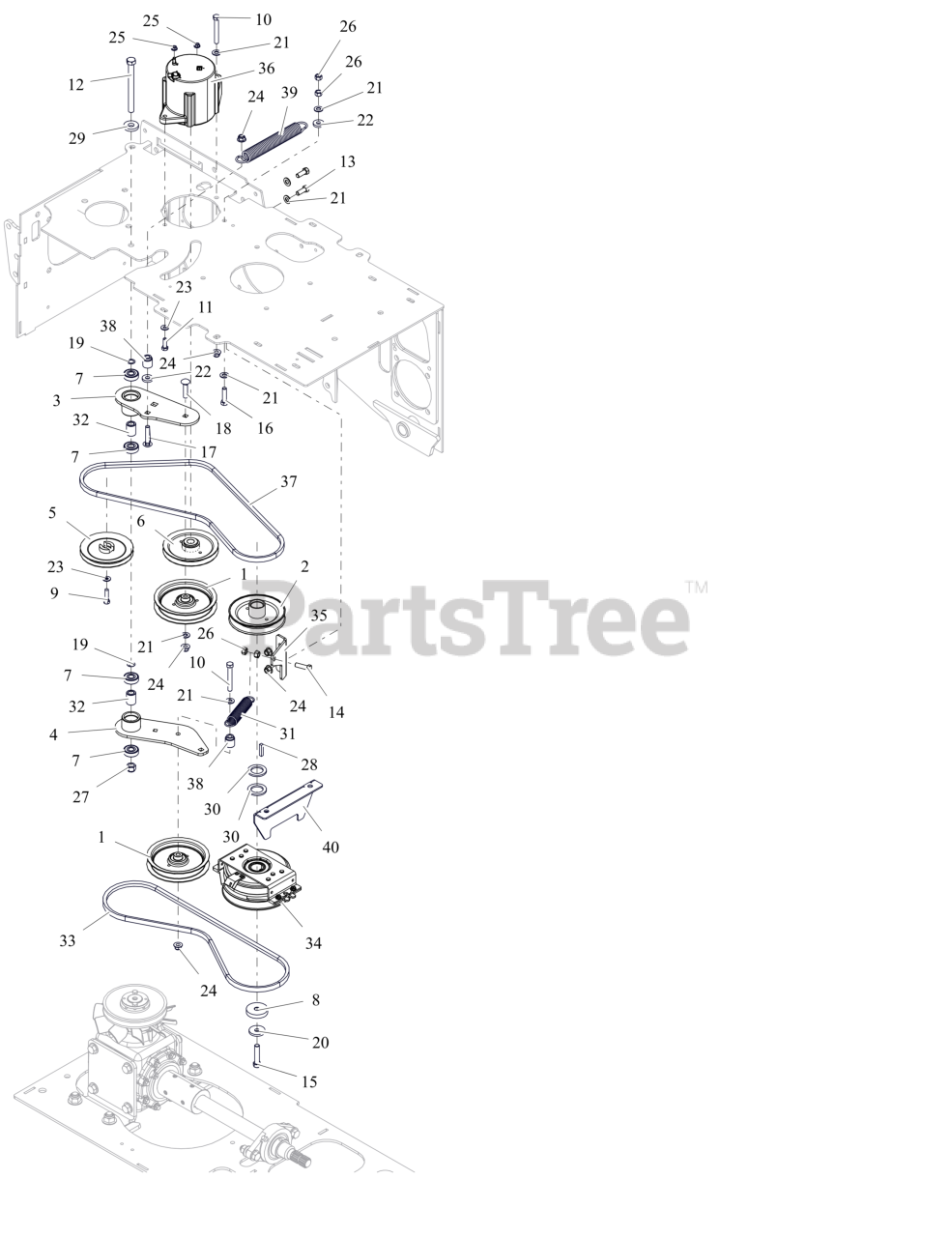

PTO & Drive Parts Diagram

  • Title

1

Ariens 07334500

IDLER- FLAT-5.00X.75

$79.99

$

Usually ships in 4-12 days

0

2

Ariens 07340967

SHEAVE, ENGINE 1.127 ID X 5.250 OD
(Superseded to 07340900)

$79.99

$

In Stock, only 1 left!

0

3

Ariens 09398000

WLDMT- IDLER ARM

$22.99

$

Usually ships in 4-12 days

0

4

Ariens 09398100

WLDMT- IDLER ARM

$22.99

$

Usually ships in 4-12 days

0

5

Ariens 09465900

PULLEY- PUMP

$113.99

$

Usually ships in 4-12 days

0

6

Ariens 09466400

PULLEY- SPLIT V

$68.99

$

Usually ships in 4-12 days

0

7

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

8

Ariens 05501222

SPACER, .450X2.00X.396

$6.99

$

Usually ships in 4-12 days

0

9

Ariens 05901423

@BLT-HEX .31-24X1.25 GR5 YWZC

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, Qty 16

0

11

Ariens 05901630

BLT,HEX M8-1.25X25 G8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 05901632

BLT,HEX .50-13X5.50 G5 ZCC

$6.99

$

Usually ships in 4-12 days

0

13

Ariens 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 10

0

15

Ariens 05901916

BLT, HEX .44-20X2.00 G8 ZCC NT

$3.99

$

In Stock, only 1 left!

0

16

Ariens 05901928

BLT, HEX .38-16X1.50 G5 ZCC

$1.49

$

In Stock, Qty 5

0

17

Ariens 06200314

BLT, RHSN .38-16X2.00 G5 ZCC

$3.99

$

In Stock, Qty 7

0

18

Ariens 06200417

BLT, RHSN .38-16X1.75 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 06400015

WASHER, .500X.750X.020 THRUST

$2.49

$

In Stock, Qty 20+

0

20

Ariens 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

21

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 19

0

23

Ariens 06401124

WSHR, FLT .312X.734X.065 ZCC

$0.99

$

In Stock, Qty 8

0

24

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06500807

NUT- SPNLK-FLG M6-1.0 G8.8 ZCC

$1.99

$

Usually ships in 4-12 days

0

26

Ariens 06500825

NUT-LK-CTR .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06500830

NUT,NYL .50-13 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

28

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, only 1 left!

0

29

Ariens 07002006

WSHR- 1.375X.563X.250

$3.49

$

Usually ships in 4-12 days

0

30

Ariens 07002007

WSHR- 1.750 X 1.350 X .134

$2.99

$

Usually ships in 4-12 days

0

31

Ariens 08346800

SG-TENS .105X1.00X5.0

$14.99

$

In Stock, only 2 left!

0

32

Ariens 09357700

SPACER .510 X .75 X 1.1485

$3.99

$

In Stock, only 1 left!

0

33

Ariens 09470300

BELT- PTO - HA

$46.99

$

Usually ships in 4-12 days

0

34

Ariens 09478800

CLUTCH, OGURA GT2.75-DC03(D)

$349.99

$

Usually ships in 4-12 days

0

35

Ariens 09490400

BRKT- SPRING/CABLE

$11.99

$

Usually ships in 4-12 days

0

36

Ariens 09490600

ELEC- POWER ALTERNATOR 70A

$387.99

$

Usually ships in 4-12 days

0

37

Ariens 09490700

BELT- HYDRO - HA

$68.99

$

Usually ships in 4-12 days

0

38

Ariens 09490800

SPCR- BSHG - SPRING ANCHOR

$3.49

$

Usually ships in 4-12 days

0

39

Ariens 09491000

SPRG- EXTENSION

$38.99

$

Usually ships in 4-12 days

0

40

Ariens 09499700

PLATE- CLUTCH STOP

$22.99

$

Usually ships in 4-12 days

0
