951001 (Mammoth 850) - Ariens Stand-On Snow Removal Tractor, Kawasaki FX (SN: 000101 & Above) Steering Controls Parts Diagram

Stand-On Snow Removal Tractor, Kawasaki FX

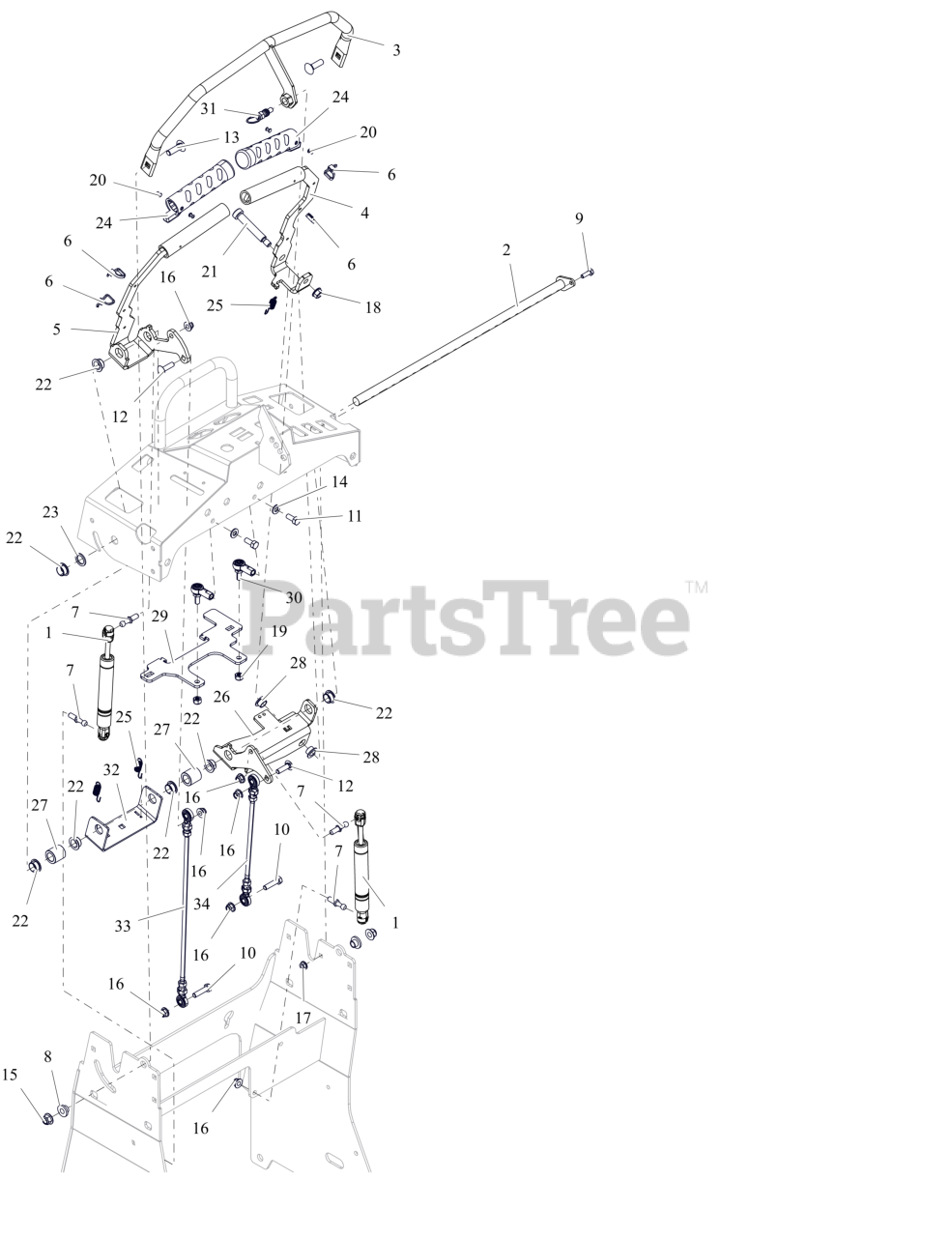

Steering Controls Parts Diagram

  • Title

1

Ariens 03914100

DAMPER, CONTROL
(Superseded to 30151500)

$31.99

$

Usually ships in 4-12 days

0

2

Ariens 09398500

PIVOT- ROD FLAG WLDMT

$34.99

$

Usually ships in 4-12 days

0

3

Ariens 09398600

WLDMT- FWD SPEED BAR

$26.99

$

Usually ships in 4-12 days

0

4

Ariens 09464400

WLDMT- CONTROL LH HANDLE

$

$

Currently unavailable

5

Ariens 09466300

WLDMT- CONTROL RH HANDLE

$

$

Currently unavailable

6

Ariens 04003800

TIE WRAP

$

$

Not available

7

Ariens 04097100

STUD-BALL-THREADED

$2.49

$

In Stock, Qty 15

0

8

Ariens 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, only 1 left!

0

9

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 7

0

10

Ariens 05901803

BLT, HEX .31-18X1.25 G5 ZCC

$2.49

$

In Stock, only 2 left!

0

11

Ariens 05902014

BLT, HEX .31-24X.750 G5 ZCC

$1.49

$

In Stock, Qty 19

0

12

Ariens 06200334

BLT, RHSSN .31-18X1.125 G5 ZCC

$1.99

$

Usually ships in 4-12 days

0

13

Ariens 06200415

BLT, RHSN .38-16X1.25 G5 ZCC

$2.49

$

In Stock, Qty 18

0

14

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 6

0

15

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 8

0

17

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 11

0

18

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07001937

NUT- HEX NYLOCK 5/16-24

$1.49

$

Usually ships in 4-12 days

0

20

Ariens 07001938

RVT-POP #44 .125X.188-25 STLZC

$

$

Not available

21

Ariens 07001939

BLT-SHLDR 0.5 SH- .38-16X2.5

$11.99

$

Usually ships in 4-12 days

0

22

Ariens 07001940

BUSHING- PLASTIC 5/8"

$4.99

$

Usually ships in 4-12 days

0

23

Ariens 07002027

WASHER-FLAT-STL, METRIC M17X24X2

$

$

Currently unavailable

24

Ariens 07500513

GRIP, HANDLE - HEATED
(Superseded to 07500514)

$46.99

$

In Stock, only 1 left!

0

25

Ariens 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, only 1 left!

0

26

Ariens 09463900

PLATE- CONTROL LH HANDLE PIVOT

$

$

Currently unavailable

27

Ariens 09464000

SPCR- PLASTIC LDPE

$3.49

$

Usually ships in 4-12 days

0

28

Ariens 09464800

BUSHING- FLANGED PLASTIC

$3.49

$

Usually ships in 4-12 days

0

29

Ariens 09465000

PLATE- BRAKE INTERLOCK

$

$

Currently unavailable

30

Ariens 09465200

BALL- STUD ASSY 5/16-24

$18.99

$

Usually ships in 4-12 days

0

31

Ariens 09466000

SPRG- LOCK PIN 1/2-13

$22.99

$

Usually ships in 4-12 days

0

32

Ariens 09466100

PLATE- BRAKE CAM

$

$

Currently unavailable

33

Ariens 09492200

LINKAGE- CONTROLS-5/16 -15.64"

$40.99

$

Usually ships in 4-12 days

0

34

Ariens 09492300

LINKAGE- CONTROLS 5/16 -10.00"

$40.99

$

Usually ships in 4-12 days

0
